Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications

  • Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications
  • Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications
  • Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications
  • Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications
  • Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications
  • Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications
  • Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications
Certification ISO, AISI, ASTM, EN, DIN, JIS
Minimum Order Quantity 50 kg
Price US $2.58-9.88 / kg
Product Details
Shape Round Technique Hot Rolled
Surface Treatment Bright Specification OD 6-300mm
Production Capacity 50000kgs Tensile Strength 1105-1310 MPa
Yield Strength 1000-1170 MPa Elongation 10-16%
Hardness 28-44 HRC Density 7750 Kg/m³
Thermal Conductivity 18.4-22.7 W/m.K Specific Heat 460 J/kg.K
Electrical Resistivity 800 NΩ.m Maximum Temperature 572°F (300°C)
Composition Cr 15-17.5%, Ni 3-5%, Cu 3-5%, Nb+Ta 0.15-0.45%
Highlight

Hot Rolled Stainless Steel Bar

,

Bright Surface 17-4PH Stainless Steel

,

OD 6-300mm 630 Stainless Steel
Leave a Message
Product Description
630 (1.4542) Stainless Steel 17-4PH Bar

17-4 Precipitation Hardening (Type 630) is a chromium-copper precipitation hardening stainless steel designed for applications requiring high strength and moderate corrosion resistance. This alloy maintains high strength up to approximately 600°F (316°C).

General Properties

Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with copper and niobium additions. This grade combines high strength, hardness (up to 572°F / 300°C), and excellent corrosion resistance.

Mechanical properties can be optimized through heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi). The grade should not be used above 572°F (300°C) or at very low temperatures.

Applications
  • Offshore applications (foils, helicopter deck platforms)
  • Food processing industry
  • Pulp and paper industry
  • Aerospace components (turbine blades)
  • Mechanical components
  • Nuclear waste casks
Standards Compliance
  • ASTM A693 grade 630 (AMS 5604B) UNS S17400
  • EURONORM 1.4542 X5CrNiCuNb 16-4
  • AFNOR Z5 CNU 17-4PH
  • DIN 1.4542
Chemical Composition
Element Content (%)
C0.07 max
Mn1.0 max
Si1.0 max
P0.04 max
S0.030 max
Cr15.0 - 17.5
Ni3.0 - 5.0
Cu3.0 - 5.0
Nb+Ta0.15 - 0.45
Mechanical Properties
Condition Tensile Strength (MPa) Yield Strength 0.2% Proof (MPa) Elongation (% in 50mm) Hardness Rockwell C
Solution Treated1105 typ1000 typ15 typ38 max
Condition 9001310 min1170 min10 min40 min
Condition 1150930 min724 min16 min28 min
Physical Properties
Property Value
Density7750 kg/m³
Thermal Expansion (0-100°C)10.8 µm/m/°C
Thermal Conductivity (100°C)18.4 W/m·K
Specific Heat (0-100°C)460 J/kg·K
Electrical Resistivity800 nΩ·m
Corrosion Resistance

Alloy 17-4 PH provides superior corrosion resistance compared to standard hardenable stainless steels and is comparable to Alloy 304 in most media. For applications with stress corrosion cracking risks, aging temperatures above 1022°F (550°C) are recommended.

The alloy demonstrates excellent resistance in chemical, petroleum, paper, dairy, and food processing industries, equivalent to 304L grade performance.

Heat Treatment

Solution Treatment (Condition A): Heat to 1040°C for 0.5 hours, then air-cool to 30°C. Small sections may be oil quenched.

Age Hardening: Performed at low temperatures to achieve required mechanical properties with minimal distortion (0.10% shrinkage for H1150, 0.05% for H900).

Condition Hardening Temp (°C) Time (h) Typical Hardness (HRC) Tensile Strength (MPa)
AAnn-361100
H900482144-
H9254964421170-1320
H10255524381070-1220
H10755804361000-1150
H1100593435970-1120
H1150621433930-1080
Alternative Grade Comparison
Alternative Grade Selection Considerations
431 Higher toughness than 17-4PH, better availability in some sizes
416 Free-machining martensitic stainless steel, better for repetition machining, lower cost
316 Higher corrosion resistance for severe environments, but with much lower strength
2205 Much better corrosion resistance with lower strength (not as low as 316)
Processing Characteristics

Welding: Grade 630 can be welded using all conventional methods without pre-heating requirements.

Machining: Best performed in solution-treated condition with machining rates similar to grade 304 stainless steel.

Typical Applications
  • Engine components
  • High-strength boat propeller shafts
  • Plastic molding dies
  • Valves and gears
  • Aerospace turbine blades
  • Nuclear waste containment

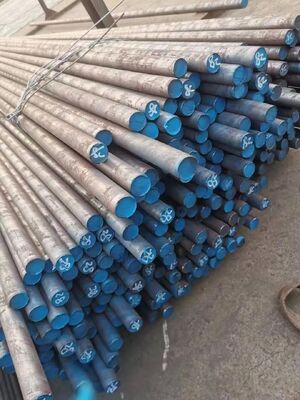

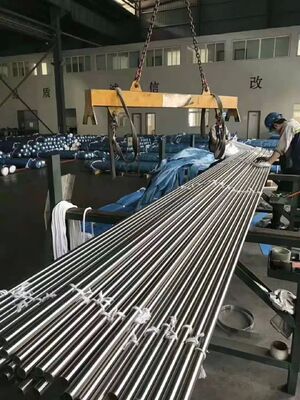

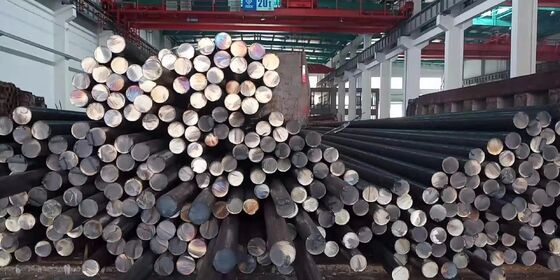

Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications 0 Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications 1 Hot Rolled Bright Surface 17-4PH Stainless Steel Bar with OD 6-300mm for High Strength Applications 2
