Thick Wall Seamless Steel Pipe API 5L ASTM A106 Cold Drawn OD 6-630mm

  • Thick Wall Seamless Steel Pipe API 5L ASTM A106 Cold Drawn OD 6-630mm
Minimum Order Quantity 1 Ton
Price US $650-1,030 / Ton
Product Details
Material Carbon Steel And Alloy Steel Surface Treatment Oiled, Polished, Brightness, Metallic Color
Section Shape Round Outer Diameter 6-630mm
Wall Thickness 1-8mm Length Customized
Tolerance Cold Drawn Pipe: +/-0.1mm, Cold Rolled Pipe: +/-0.05mm Steel Grade St35, St45, St52, E215, E235, E355, Sch10, Sch20, A106, A179, A192, A210, T11, T22, T12, AISI4130, SAE1010, SAE1020
Production Capacity 50000kgs Tensile Strength ≥415-570 Mpa
Yield Strength ≥245-485 Mpa Carbon Content ≤0.28
Manganese Content ≤1.20-1.40 Chromium Content ≤0.50
Molybdenum Content ≤0.15
Highlight

Thick Wall Seamless Steel Pipe

,

OD 6-630mm API 5L Pipe

,

Cold Drawn ASTM A106 Pipe
Leave a Message
Product Description
Thick Wall Seamless Steel Pipe
Compliant with API 5L, ASTM A106, A53, ASME SA106 standards
Product Specifications
Product Name Seamless Steel Pipe
Material Carbon Steel and Alloy Steel
Surface Oiled, Polished, Brightness, Metallic Color
Standards ASTM A106, A53, A192, A179, A210, A519, DIN17175, 1629, 2391, EN10216-1, 10216-2, 10305-1
Grades St35, St45, St52, E215, E235, E355, sch10, sch20, A106, A179, A192, A210, T11, T22, T12, AISI4130, SAE1010, SAE1020
Craft Cold Rolled and Cold Drawn
Size OD: 8mm-100mm, WT: 1-8mm
Length Customized
Tolerance Cold Drawn Pipe: +/-0.1mm, Cold Rolled Pipe: +/-0.05mm
Applications Gas Spring, Shock Absorber, Cylinder and other High Precision Areas
Seamless Pipe Applications
Steel pipes are categorized into seamless steel pipes and welded steel pipes based on production technology. Seamless steel tubes are manufactured through hot rolled and cold drawn processes, with hot rolled pipes offering superior strength compared to cold drawn tubes.
Common applications include:
  • Steam pipelines
  • Gas pipelines
  • Liquefied gas pipelines
  • Natural gas pipelines
  • Petroleum product pipelines
  • Various other gas and liquid transmission pipelines
Technical Parameters
Standard API 5L PSL 1 & PSL 2
Steel Grade GrB to X70
Size and OD 1/2" - 152" (21.3mm - 3800mm)
Wall Thickness SCH10, STD, SCH40, SCH80, SCH160, XS, XXS
Chemical Components & Mechanical Properties
Standard Steel Grade C Mn Cr Mo P S Ni Cu Tensile Strength (Mpa) Yield Strength (Mpa)
API Spec 5L PLS1 B ≤0.28 ≤1.20 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥415 ≥245
X42 ≤0.28 ≤1.30 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥415 ≥290
X46 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥435 ≥320
X52 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥460 ≥360
X56 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥490 ≥390
X60 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥520 ≥415
X65 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥535 ≥450
X70 ≤0.28 ≤1.40 ≤0.50 ≤0.15 ≤0.030 ≤0.030 ≤0.50 ≤0.50 ≥570 ≥485
Product Gallery

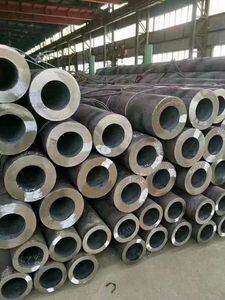

Thick Wall Seamless Steel Pipe API 5L ASTM A106 Cold Drawn OD 6-630mm 0 Thick Wall Seamless Steel Pipe API 5L ASTM A106 Cold Drawn OD 6-630mm 1 Thick Wall Seamless Steel Pipe API 5L ASTM A106 Cold Drawn OD 6-630mm 2 Thick Wall Seamless Steel Pipe API 5L ASTM A106 Cold Drawn OD 6-630mm 3
