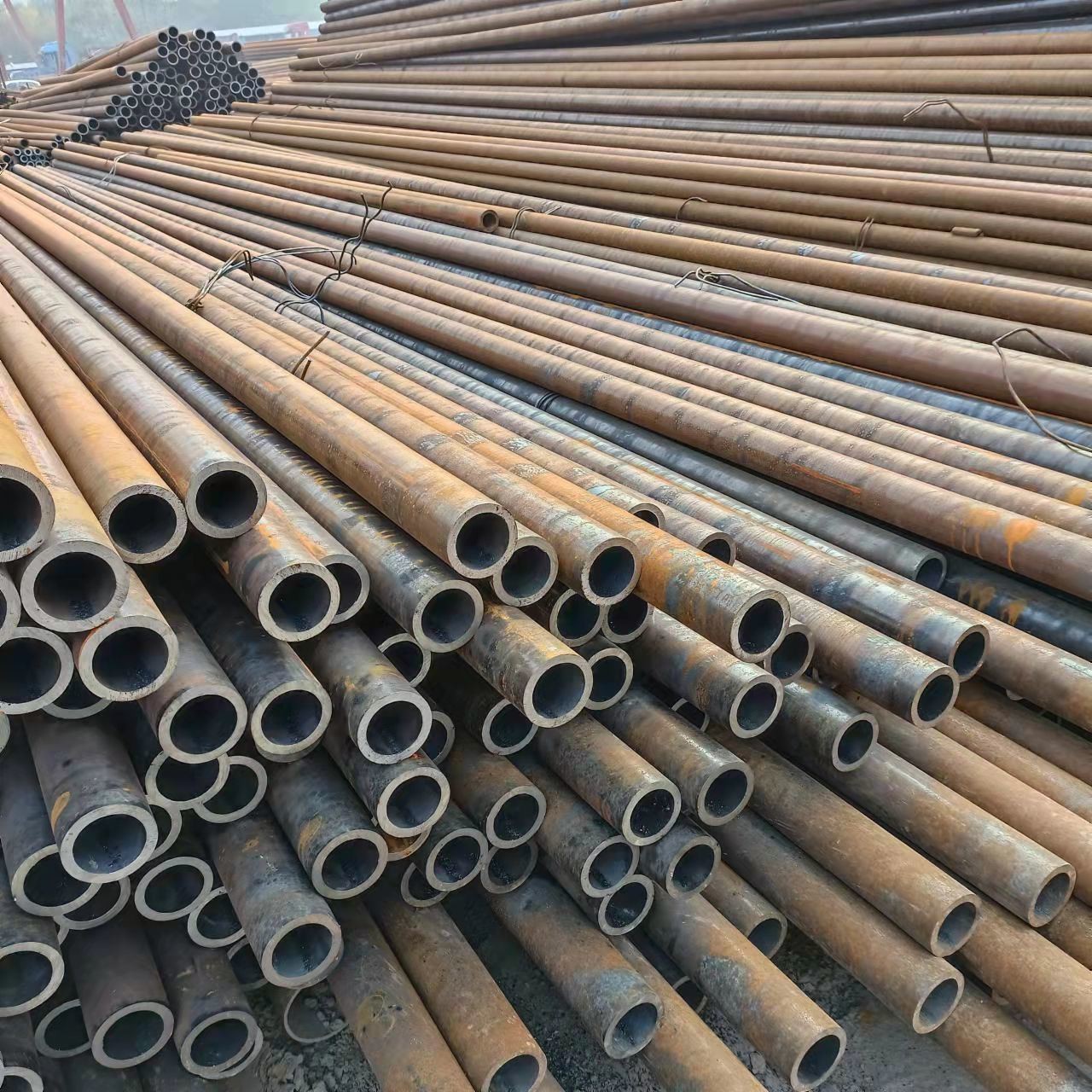

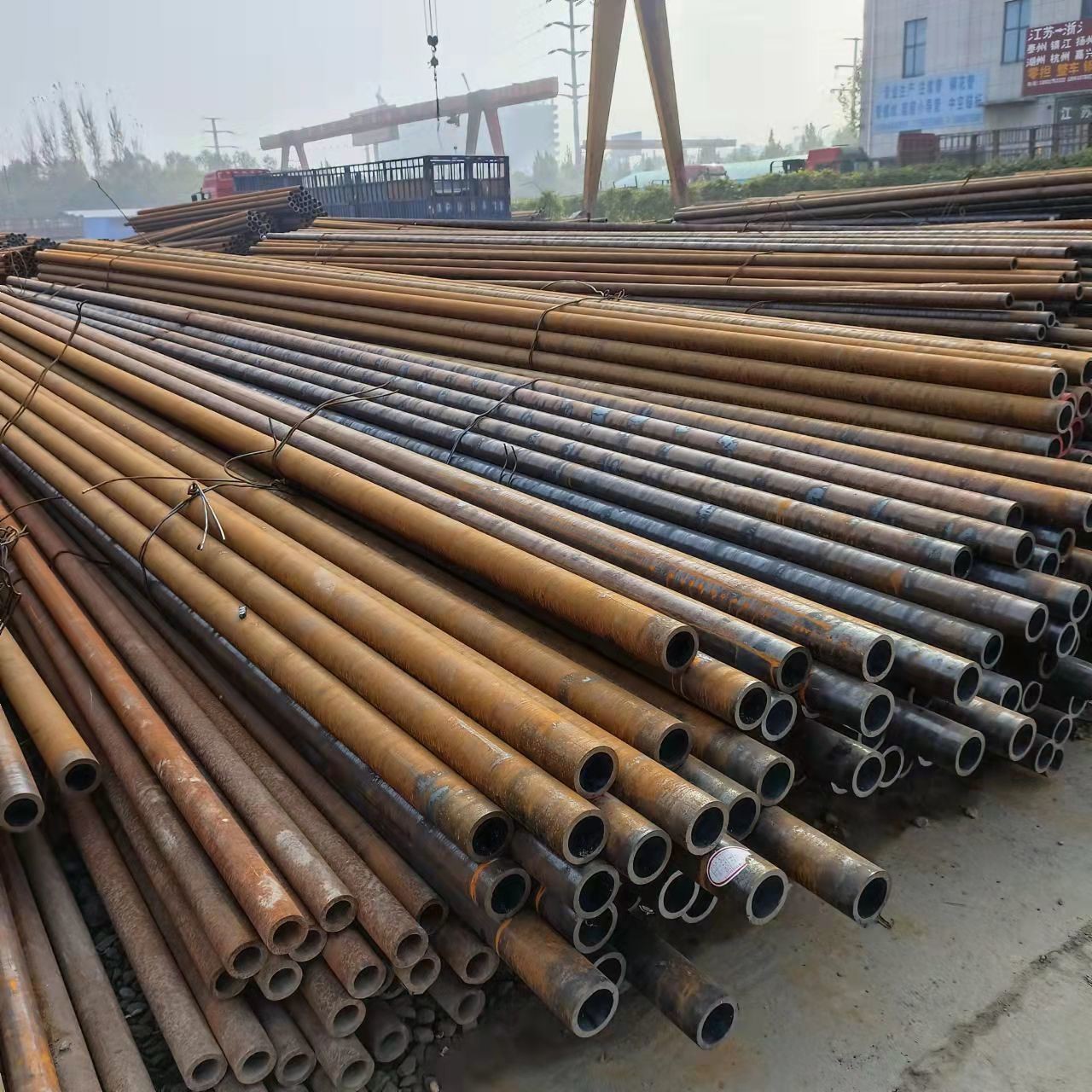

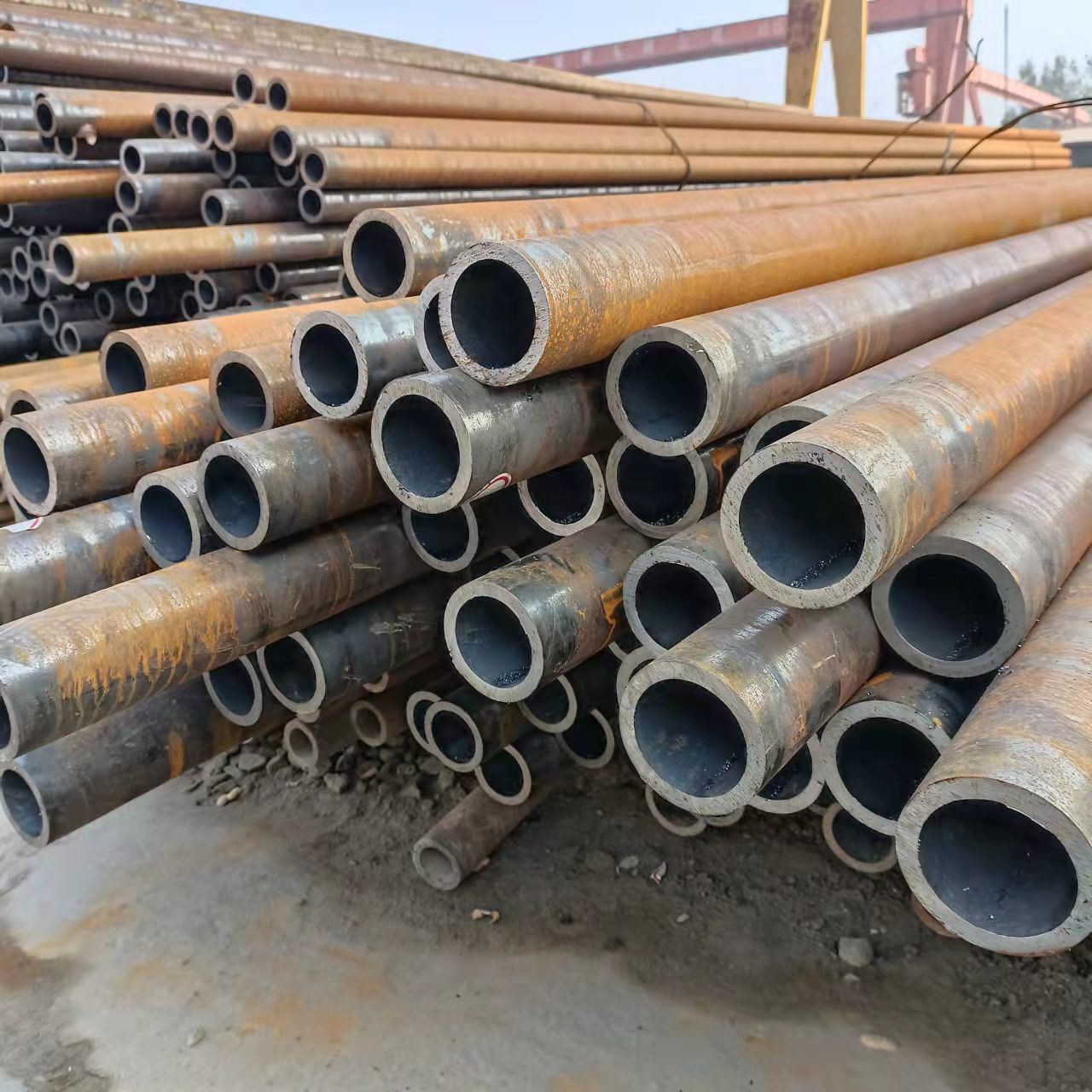

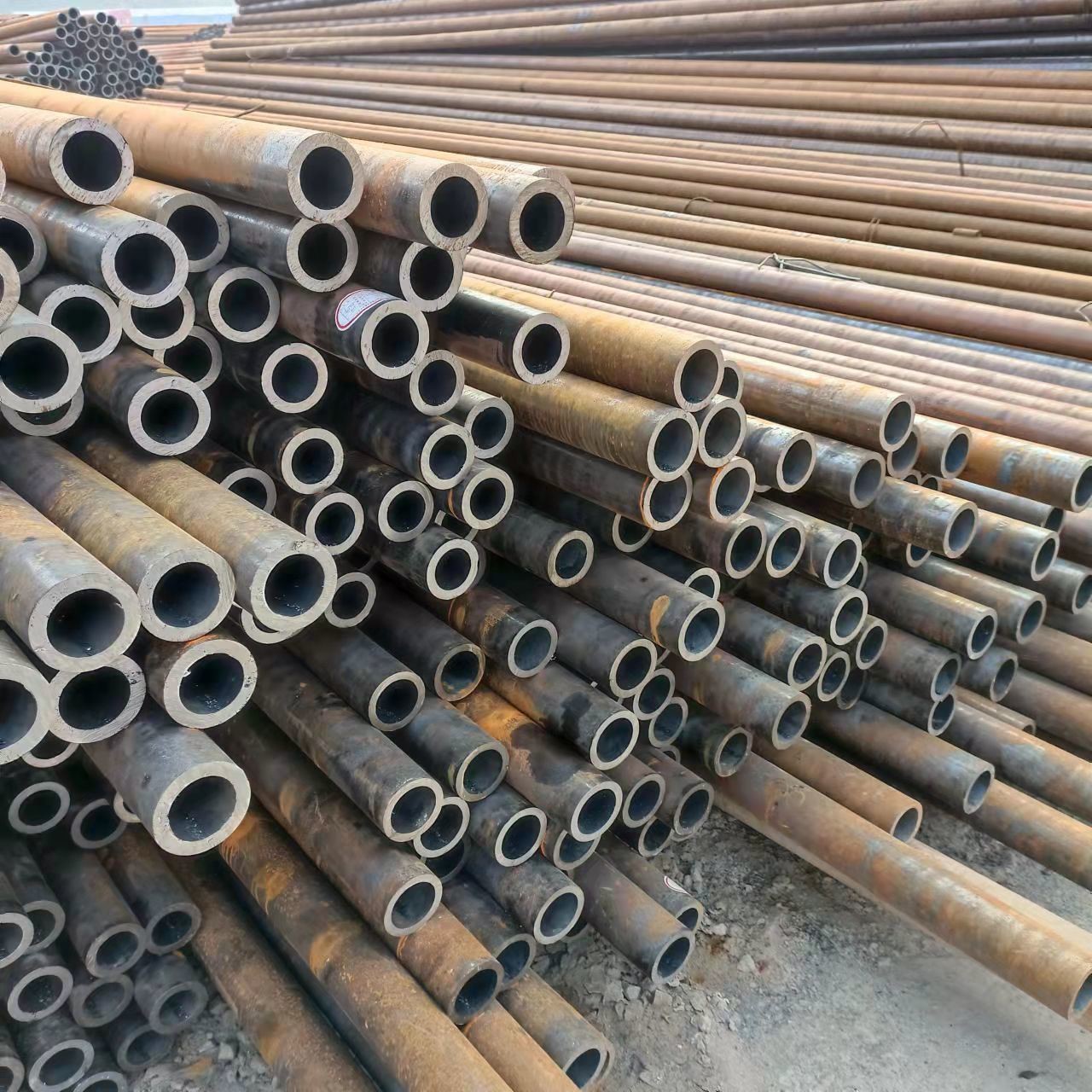

SAE4340 Seamless Round Steel Tube ASTM DIN EN AISI4340
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Carbon Steel , Alloy Steel |
| Minimum Order Quantity | 2 Tons |
| Price | 600 - 800 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, Western Union, T/T |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Seamless Steel Pipe | Diameter | DN10 - DN600 |
|---|---|---|---|
| Thickness | 1.0 - 50.0mm | Length | 6-10m Or Cutting As Request |
| Standard | ASTM EN GB DIN | Technique | Hot Rolled |
| Service | Cutting | MOQ | 2 Ton |
| Highlight | SAE4340 seamless round steel tube,seamless round steel tube ASTM,DIN seamless metal tube |
||
Product Description
Alloy AISI4340 Seamless Steel Pipe / SAE4340 Steel Pipe Tube ASTM DIN EN Seamless Pipe
| Steel Pipe Type | AISI 4340 alloy seamless steel pipe |
| Outside Dia(mm) | 10.3-1219mm |
| Wall Thickness(mm) | 1-80mm |
| Length | Random length:1-12m |
| Standard |
API5L , ASTM A106 Gr.B, ASTM A53 Gr.B, ASTMA179/A192/A213/A210/370WP91,WP11,WP22 GB5310-2009,GB3087-2008,GB6479-2013,GB9948-2013, GB/T8163-2008, GB8162-2008,GB/T17396-2009 |
| Material |
20#, A53B, A106B, API 5L ST37.0,ST35.8,St37.2,St35.4/8,St42,St45,St52,St52.4 STP G38,STP G42,STPT42,STB42,STS42,STPT49,STS49 |
| Surface | Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE,ect |
| Certificates | API5L ISO 9001:2008 TUV SGS BV etc |
| Packaging | Loose package, Packaged in bundles(3Ton Max) , bundled pipes with two slings at the both end for easy loading and discharging, End with Plastic caps or as per requirement |
| Application |
1. Fluid pipe 2. Power Plant 3. Structure pipe 5. Seamless pipe /tube for petroleum cracking 6. Conduit pipe 7. Scaffolding pipe pharmaceutical andship,building etc. |
Alloy AISI 4340 is made from low alloy elements which possess good strength. The AISI 4340 Tube is made with a high chemical composition of nickel, chromium, and molybdenum. This makes these tubes highly resistant to corrosion and oxidation in different environments. The 4340 Chromoly Tubing enables it to exist in high-pressures and elevated temperature systems. This tubing can be formed by standard hot-rolling or cold-rolling procedures. The AISI 4340 Alloy Steel Tube exhibits exceptional strength and excellent mechanical properties. These tubes have a minimum tensile strength of 1014Mpa and a minimum yield strength of 835Mpa. The AISI 4340 Steel Pipe can be easily machined and fabricated. These pipes can be easily elongated by 13% and still exhibit excellent workability. They possess a hardness between 248 to 444 Brinell. We follow the standard processes and tests followed by the leading AISI 4340 Tube Suppliers.
Mechanical Behaviour of ASTM A519 Gr 4340 Square Tube
| Normalized | Annealed | |
|---|---|---|
| Tensile Strength | 185,500 psi | 108,000 psi |
| Yield Strength | 125,000 psi | 68,500 psi |
| Elongation (2") | 12.2% | 22% |
| Reduction in Area | 36.3% | 49.9% |
| Brinell Hardness | 363 | 217 |
SAE 4340 Pipe Dimensions Standard and Specification
| Specification | ASTM A519/ ASME SA519 |
|---|---|
| Thickness | 3 - 12 millimeter, Cut to length |
| Schedule Thickness Ranges | SCH XS, SCH 40, SCH 80S, SCH 5, SCH 80, SCH XXS, SCH 160, SCH10, All Schedules |
| Tolerance | Cold rolled tube: +/-0.05 millimetre Cold drawn tube: +/-0.1 millimetre |
| Form | Hydraulic, Square, Rectangular, Round Etc. |
| Sizes | 1/2" NB to 36" NB |
| End | Beveled, Threaded, Plain |
| Type | Welded | CDW | ERW | DOM | Seamless | Fabricated | CEW | LSAW |
| Surface Finish | 2B, No.1, No.4, No.8 Mirror Finish |
| Length | Single and Double Random, Cut to Length |
| Delivery Condition | Annealed & Pickled, Polished, Bright & Annealed, etc |
| Contact our executive in | Ahvaz, Janeiro, Abu Dhabi, Mumbai, Ahmedabad, Riyadh, Lagos, Gimhae si, Ankara, Courbevoie, Tau, New Delhi, Pimpri Chinchwad, Gujarat, Ranchi, Rajkot, Thiruvananthapuram, Jamshedpur, Howrah, Muscat, Hyderabad, Perth, Nagpur, Coimbatore, Melbourne, Kolkata, Port of Spain, Manama, Kanpur, Caracas, Noida, Istanbul, Indore, Karachi, Bengaluru, Vadodara, Sydney, Kuwait, Bogota, Bangalore, London, Gurgaon, India, Mexico, Khobar, Ludhiana, Montreal, Ernakulam, Chennai, Surat, Ludhiana, Calgary, Tehran, Baroda, Dammam, Santiago |
Melting point of AISI 4340 Steel Pipe
| Properties | Metric | Imperial |
|---|---|---|
| Melting point | 1432°C | 2610°F |
Purchase AISI 4340 Rectangular Tube at factory price, Find out 4340 Chromoly Tubing Grade Equivalents.
Alloy Steel 4340 Equivalent Grades
| Standard | ASTM A519 | EN 10297 | BS 3059 | JIS G3441 |
|---|---|---|---|---|
| Grades | 4340 | 36CrNiMo4/ 1.6511 |
EN24/817M40 | SNCM 439/SNCM8 |
SAE 4340 Density
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.85 g/cm3 | 0.284 lb/in³ |
AISI 4340 Rectangular Tube Rate Chart
| Product | Price |
| ASTM A519 AISI 4340 Alloy Seamless Round Tube | $18.00 - $22.50/ Kilogram |
| Alloy Steel SAE 4340 Pipe | $530.00 - $550.00/ Ton |
| AISI 4340 alloy cold drawn seamless steel pipe | $645.00 - $980.00/ Ton |
| 140mm 75mm 46mm 4340 Boiler Precision Seamless Steel Tube | $548.00 - $690.00/ Metric Ton |
Many AISI 4340 Tubing suppliers, stockholders, retailers, distributors, stockists, dealers, wholesalers, importers, and exporters find your sizes in our stock of 4340 Alloy Steel Tube in Mumbai, Choose us for the best price of 4340 Chromoly Steel Pipe in India, Contact for a Quick Quote!
Size Table of Alloy Steel Type 4340 Seamless Pipe
| O.D. * Thk. | O.D. * Thk. | O.D. * Thk. |
|---|---|---|
| 57 * 4.9 | 38.1 * 3.2 | 76.2 * 4 |
| 57 * 6.3 | 38.1 * 4 | 76.2 * 5 |
| 57 * 7.9 | 38.1 * 6.3 | 76.2 * 6.3 |
| 60.3 * 3.2 | 42.4 * 3.2 | 82.5 * 4.5 |
| 60.3 * 3.6 | 42.4 * 4 | 88.9 * 3.2 |
| 60.3 * 5 | 44.5 * 3.2 | 88.9 * 3.6 |
| 63.5 * 3.2 | 44.5 * 6.3 | 88.9 * 4 |
| 63.5 * 3.6 | 48.3 * 3.2 | 101.6 * 3.6 |
| 63.5 * 4 | 48.3 * 3.6 | 101.6 * 4.5 |
| 63.5 * 6.3 | 50.8 * 4.5 | 101.6 * 6.3 |
| 63.5 * 7.9 | 51 * 3.2 | 114.3 * 3.6 |
| 70 * 3.2 | 51 * 3.6 | 114.3 * 5 |
| 70 * 3.6 | 51 * 6.3 | 139.7 * 4 |
| 70 * 6.3 | 57 * 3.2 | 139.7 * 5 |
|
76.2 * 3.6
|
57 * 3.6 | 139.7 * 6.3 |
4340 Square Tubing Chemical Equation
| C | Mn | P | S | Si | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|
| 0.38-0.43 | 0.60-0.80 | 0.035 | 0.040 | 0.15-0.35 | 1.65-2.00 | 0.70-0.90 | 0.20-0.30 |
Tolerance of 4340 Alloy Steel Tubing
| O.D (mm) | I.D (mm) | Straightness (mm) |
|---|---|---|
| -/+0.5% | H9-H12 | 0.20-0.80 |
AISI 4340 Alloy Steel Tube Tensile Properties
| Tensile Properties | |||||||
| Grade Designation | Condition | Ultimate Strength | Yield Strength | Rockwell,Hardness B Scale | Elongation in 2 in.or 50mm,% | ||
| Mpa | ksi | Mpa | ksi | ||||
| 4340 | HR | 621 | 90 | 483 | 70 | 89 | 20 |
| SR | 724 | 105 | 586 | 85 | 95 | 10 | |
| A | 517 | 75 | 379 | 55 | 81 | 30 | |
| N | 621 | 90 | 414 | 60 | 89 | 20 | |
Check SAE 4340 Pipe Material Weight Chart, UNS G43400 Steel Welded Tube Tolerance, Exporter of A519 Gr 4340 Seamless Tubing.
