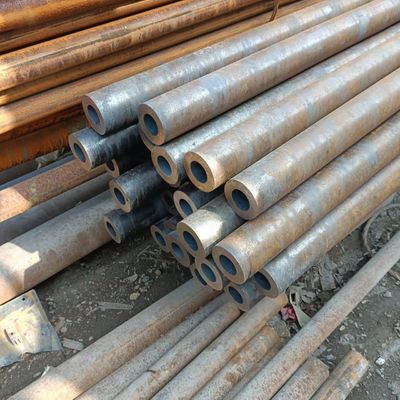

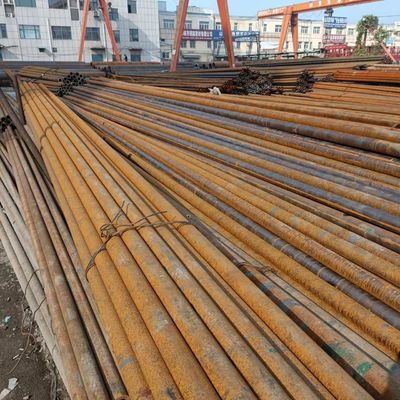

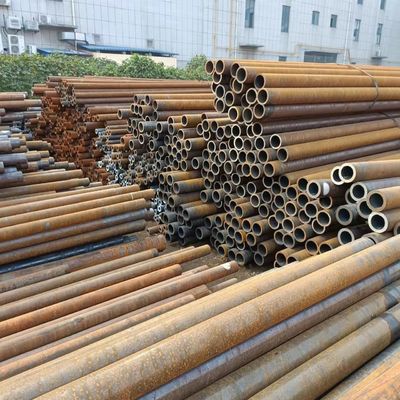

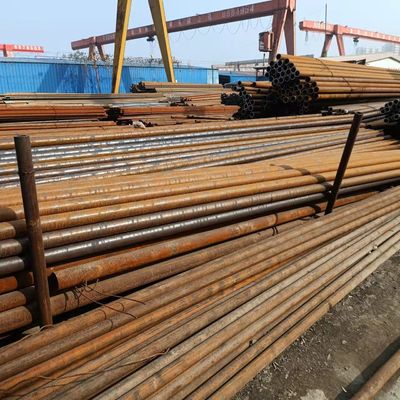

ASTM A333 Grade 6 pipe is the common grades refer to the low temperature applications.

Enpro supply ASTM A333 pipe with below conditions:

Standard: ASTM A333/ A333M
Grade: Grade 1, Grade 3, Grade 4, Grade 6, Grade 7, Grade 7, Grade 8, Grade 9, Grade 10 and Grade 11
OD: NPS 1/8 inch to NPS 20 inch, 10.13mm to 1219mm
WT wall thickness: SCH 10, SCH 20, SCH STD, SCH 40, SCH 80, to SCH160, SCHXX; 1.24mm up to 1 inch, 25.4mm
Range of length: 20ft to 40ft, 5.8m to 11.8m, 6m to 12m.
Ends procession: Plain end, beveled, threaded

Manufacturing Types in Seamless and Welded

The standards includes manufacturing types in welding (ERW) and seamless. Material covers carbon and alloy steels.

How many grades for A333 pipe

There are total 9 grades in this standard, Grade 1, 3, 4, 6, 7, 8, 9, 10 and Grade 11.

Dimensions Standard

The pipe complied to Nominal Dimension standard ASME B36.10M. (NPS or outside diameter and schedule number of average thickness)

Dimensions and Sizes Schedule

The pipe complied to Nominal Dimension standard ASME B36.10M. (NPS or outside diameter and schedule number of average thicknes)

Meanwhile, some pipe sizes may not be available under the ASTM A333 standard, as heavier wall thickness have an harmful on impact properties. In case client have special requirements shall follow the supplementary specification in ASTM A333.

Related Standard for Producing ASTM A333 Grade 6 Pipe

Referred ASTM Documents:
a. ASTM A370 The test plan for the definitions for the mechanical strength test of the steel products
b. ASTM A999/ A999M The specification for the general requirements of stainless and alloy steel pipe

c. ASTM A671 The specification for ERW EFW steel pipe for lower temperature and atmospheric applications
d. E23 The test plan for notched bar impact testing for the iron and steel materials
e. E165 Practice for liquid penetrant examination for industry
f. E709 Guide for magnetic practice testing

Differences Between Each Grade

As we know ASTM A333/A333M pipe could be manufactured in seamless or welded, so in which cases to use seamless type and when to use welded type?

In case of ASTM A333 Grade 4 steel pipe, it shall be made by the seamless process.

If welding process in EFW or ERW with filler metal added, and fabricated of pressure vessel quality plates.

ASTM A333 Pipe Heat Treatment Options

All the seamless and welded steel pipe, except ASTM A333 Grade 8 and Grade 11, shall be treated to control the microstructure in one option as follows,

1. Normalized in a uniform temperature not less than 815℃ [1500℉], and cool in air or in the cooling chamber of an atmosphere controlled furnace, or after this heat treatment then heating to a suitable temperature to do the termpering.

2. Besides above heat treatment option, and with manufacturers will, reheat material to a suitable tempering temperature.

3. In case the seamless steel pipe in the ASTM A333, reheat and control hot working and the temperature of the hot finishing operation to a finishing temperature range from 845 to 945℃ [1550 to 1750℉], and cool in air or in a controlled atmosphere furance from an initial temperature more than 845℃ [1550℉]. For the ASTM A333 seamless steel pipe in Grade 1, Grade 6, and Grade 10 could be heat treated from a uniform temperature more than 815℃ [1500℉], then quenching in liquid and reaheat to a suitable tempering temperature, this type of heat treatment could replace the above plan also provided the ASTM A333 4.3.1. For the ASTM A333/ A333M Grade 8 and Grade 11, heating treatment shall be complied the standard specification.

For the ASTM A333 Grade 1, Grade 6 and Grade 10 steel pipe, and it is not allowed to add the chemical element not specified in the specification, but it is allowed to add the element for the deoxidation of steel.

Our Supply Ranges

Standard: ASTM A333/A333M, ASME SA333
Material Grades: Grade 1, Grade 3, Grade 4, Grade 6, Grade 7, Grade 7, Grade 8, Grade 9, Grade 10 and Grade 11
Outer Diameters: NPS 1/8 inch to NPS 20 inch, 10.13mm to 1219mm
Wall Thickness: SCH 10, SCH 20, SCH STD, SCH 40, SCH 80, SCH XS to SCH160, SCHXXS; 1.24mm up to 1 inch, 25.4mm
Range of Length: 20ft to 40ft, 5.8m to 11.8m, 6m to 12m.
Ends procession: Plain, beveled, threaded
Coatings: 3LPE, FBE, Galvanized
