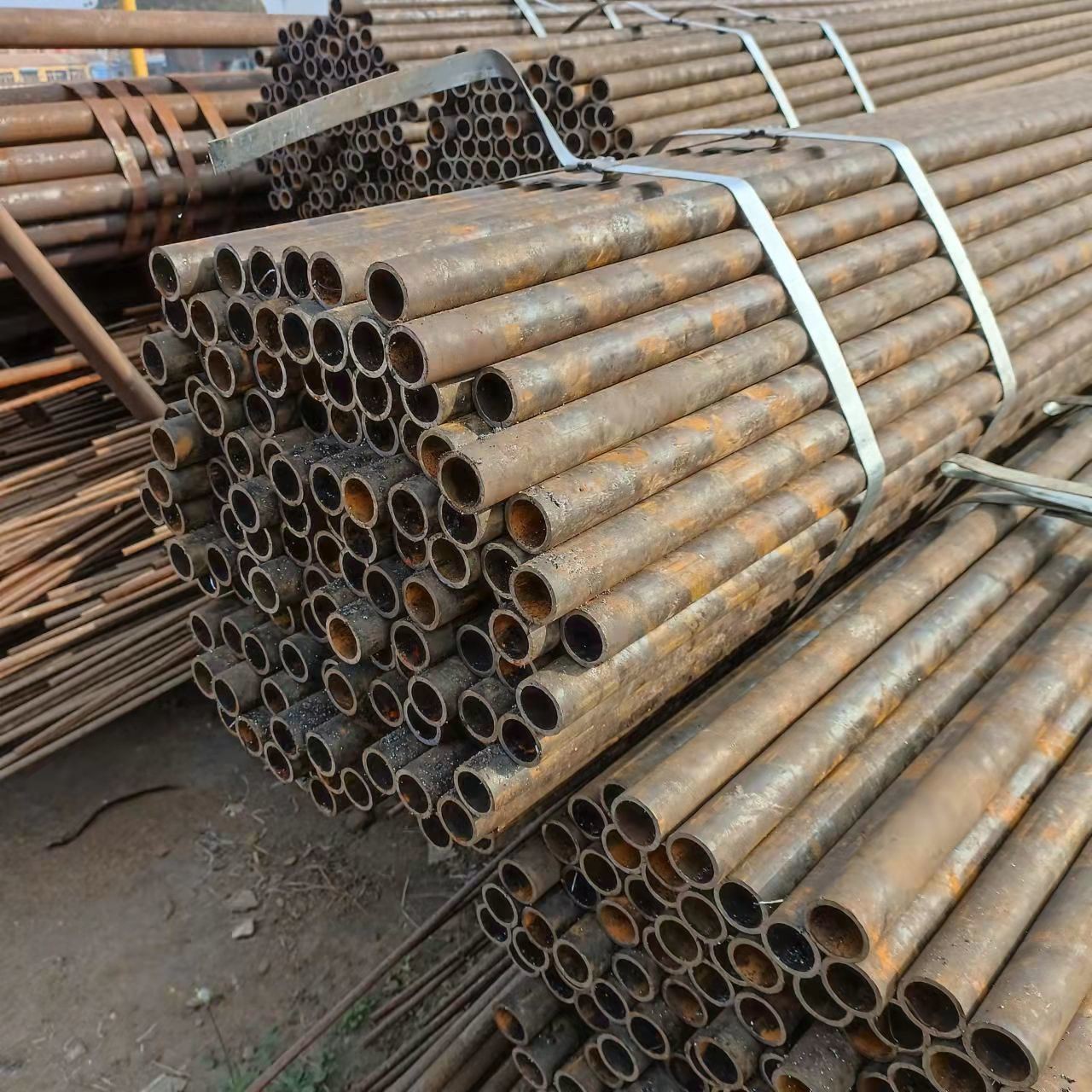

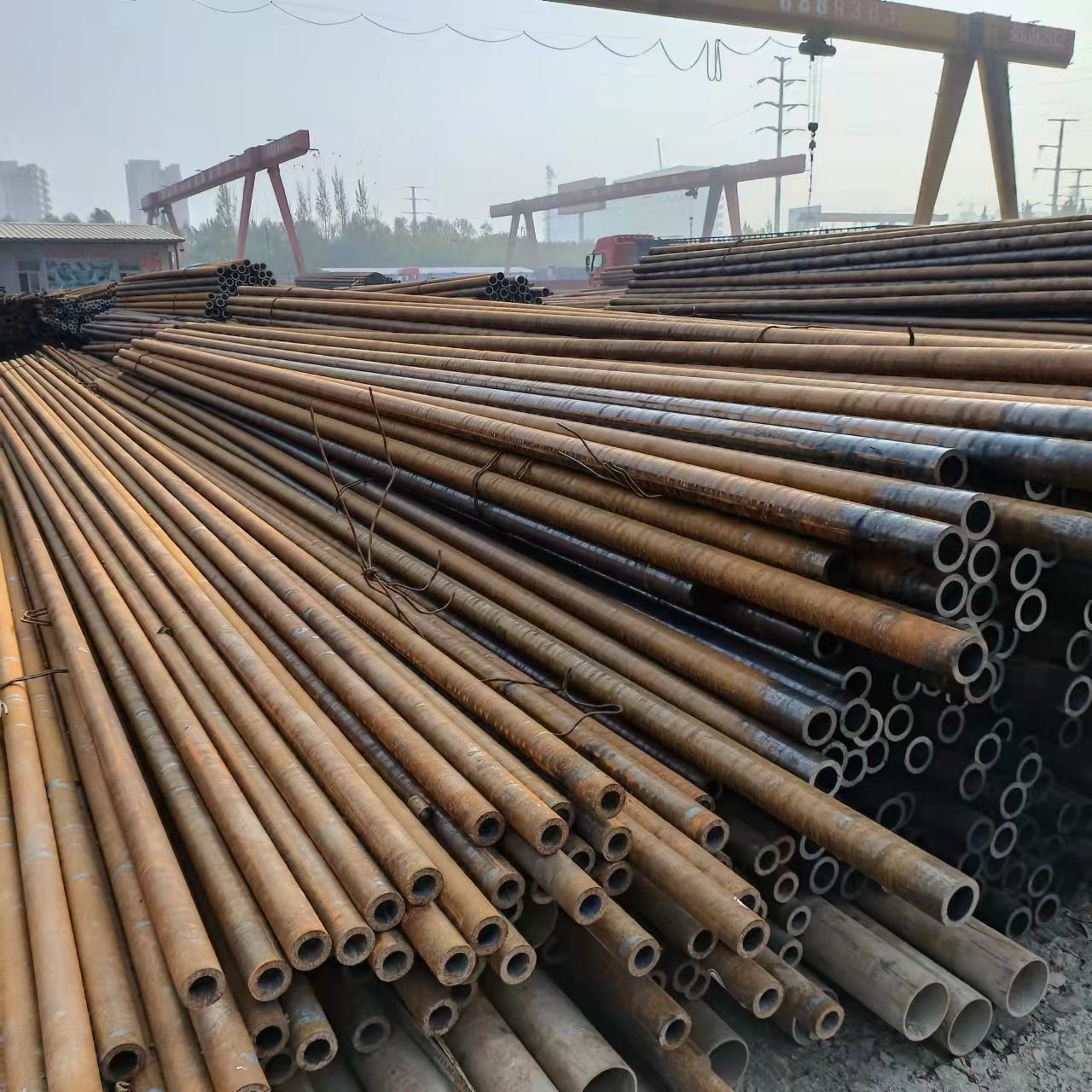

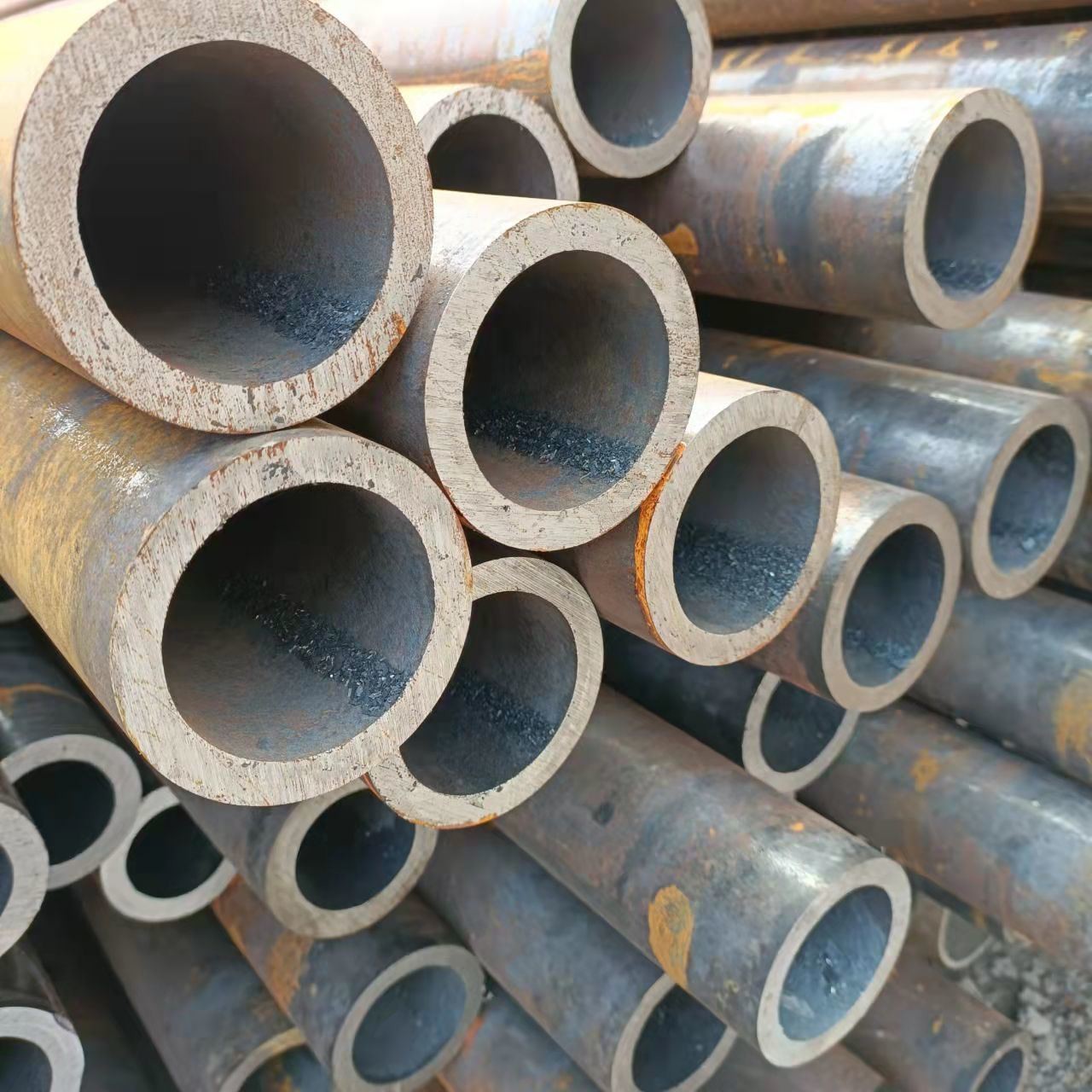

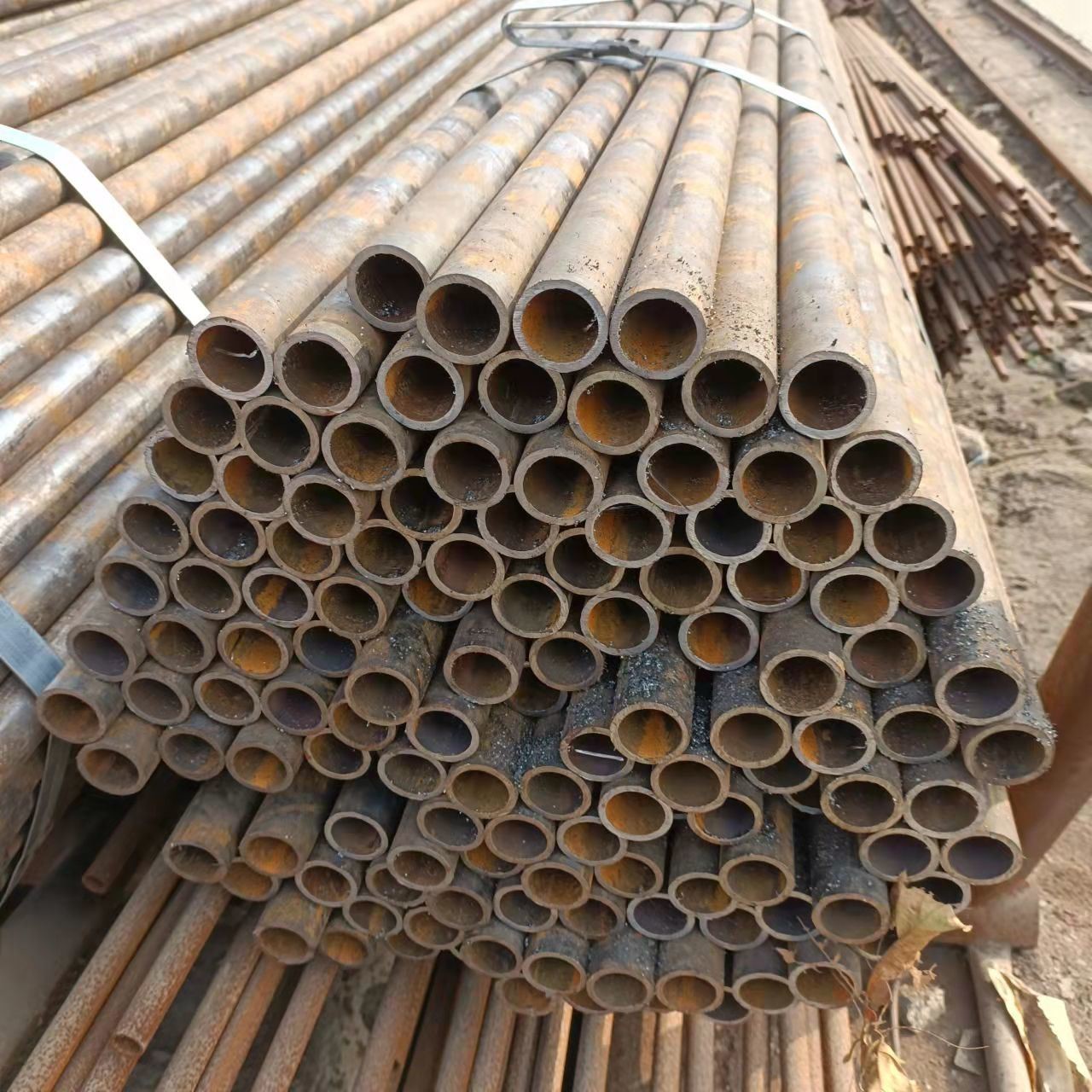

AISI 5140 SCH40 Seamless Steel Pipe ASTM A519 Seamless Alloy Tube
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Carbon Steel , Alloy Steel |
| Minimum Order Quantity | 2 Tons |
| Price | 600 - 800 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, Western Union, T/T |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Seamless Steel Pipe | Diameter | DN10 - DN600 |
|---|---|---|---|
| Thickness | 1.0 - 50.0mm | Length | 6-10m Or Cutting As Request |
| Standard | ASTM EN GB DIN | Technique | Hot Rolled |
| Service | Cutting | MOQ | 2 Ton |
| Highlight | SCH40 Seamless Steel Pipe,5140 Seamless Steel Pipe,A519 seamless alloy tube |
||
Product Description
ASTM A519 AISI5140 Alloy Steel Pipe / Seamless Steel Pipe Tube / Pipe Seamless SCH40
| Product Name | Hot-rolled seamless tube, seamless steel tube, cold drawn seamless tube, precision seamless tube, steel tube |
| Material type | 10, 15, 20, 35, 45, 20Mn, 25Mn, Q345 (A, B, C, D, E), 40Mn2, 45Mn2, 27SiMn, 37Mn5, 40MnB, 45MnB, 20Mn2B, 20Cr, 40Cr, 12CrMo, 15CrMo, 20CrMo, 35CrMO, 42CrMo, 12CrMoV, 12Cr1MoV, 38CrMoAl, 20CrMnSi, 30CrMnSi, 20CrMnTi, 30CrMnTi, 40CrNiMo |
| Items | Round seamless steel tube |
| Thickness | 1mm-120mm |
| Specifications | 1. Outer diameter (pipe): |
| 1) Round tube: 8mm to 680 mm | |
| 2) Square tube: 10x10mm to 600x600mm | |
| 3) Rectangular tube: 10x20mm to 520x580mm | |
| Thickness: 1mm to 35mm | |
| Surface | Polishing,annealing,pickling,bright |
| Technology | Cold/hot rolling |
| Executive standard | GB/T8162-2018 GB/T8163-2018 GB/T3087-2013 GB/T6479-2008 GB/T5310-2008, etc. |
| Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456,DIN17457,DIN 17459,JIS G3459,JIS G3463, |
| GOST9941,EN10216, BS3605,GB13296 | |
| Tolerance | a) Outer Diameter: +/- 0.5mm |
| b) Thickness: +/- 0.05mm | |
| c) Length: +/- 5mm | |
| Test | Squash test, extended test, water pressure test, crystal rot test, heat |
| Packing | Standard export packing |
| Payment | T/T, L/C, Western Union |
| Delivery time | 10 working days upon receipt of the deposit |
| MOQ | 1 ton |
| Application | Suitable for general structure, conveying fluid, seamless steel pipe for automobile mechanical structure. |
| handrail, railing, staircase, door, window, balcony, fence, bench, furniture etc, | |
| Machining | Custom, Kaiping, cutting, pattern |
| Used |
Factory, decoration, food |
AISI 5140 steel 1.7035 structural alloy steel
Description
5140 steel has good comprehensive mechanical properties and is one of the most widely used steel types, used for manufacturing parts of medium speed and medium load, such as machine tool gear, shaft, worm, spline shaft and so on. The tensile strength, yield strength and hardenability of 5140 alloy steel are higher than 1045 steel, with higher fatigue strength and good toughness, normalizing or tempering machinability are very good, annealing machinability is also good, generally used after tempering treatment.
Form of Supply
AISI 5140 steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar and steel square block. DIN W N-R 1.7035 steel Round bar can be sawn to your required lengths as one offs or multiple cut pieces. 1.7035 alloy steel Rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.
Chemical composition
| C(％) | 0.38～0.43 | Si(％) | 0.15～0.35 | Mn(％) | 0.70～0.90 | P(％) | ≤0.025 | |
| S(％) | ≤0.040 | Cr(％) | 0.70～0.90 | Mo(％) | 0.06Max | Ni(％) | 0.25Max |
Equivalent Of 1.7035 alloy Structure Steel
| USA | Germany | China | Japan | France | England | Italy | Poland | ISO | Austria | Sweden | Spain |
| ASTM/AISI/UNS/SAE | DIN,WNr | GB | JIS | AFNOR | BS | UNI | PN | ISO | ONORM | SS | UNE |
| 5140 / G51400 | 41Cr4 / 1.7035 | 40Cr | SCr440 | 42C4 | 530A40 / 530M40 | 41Cr4 | 2245 |
Heat Treatment
Hot working temperature ℃: 1050-850
Annealing temperature ℃: 680-720
Normalizing temperature ℃: 840-880
Quenching temperature ℃: 820-850 water, 830-860 oil
Tempering temperature ℃: 540-680
Characteristics
Good hardenability, High-frequency quenching treatment after QT, Good machinability.
Applications
Gear, shafts, Alloyed case hardening steel for parts with a required core tensile strength of 1000 – 1300 N/mm² and good wearing resistance as boxes, piston bolts, spindles, camshafts, gears, shafts and other mechanical controlling parts.Especially in wheels and stopcock.
Applications included worm, spline shaft, main shaft, oil pump rotor, sliding block, lantern ring, etc.
