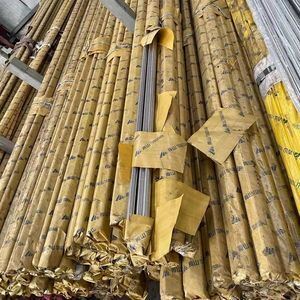

Bright Polished 17-4PH Stainless Steel Round Bar with OD 6-300mm - Stainless Steel Bright Bar

証明	ISO, AISI, ASTM, EN, DIN, JIS
最小注文数量	50 kg
価格	US $3.41-4.02 / kg

商品の詳細

形	ラウンド	技術	熱間圧延
表面処理	明るい	直径	8～450mm
長さ	6メートル/個	メイングレード	201 301 303Cu 304 304L 309S 310S 316L 316Ti 317L 318 321 347 410 420 430 431 440a/b/c 904L 2205 2507
抗張力	1105～1310MPa	降伏強さ	724～1170MPa
伸長	10-16%	硬度	28-44HRC
熱伝導率	18.4-22.7W/mK	比熱	460 J/kg.K
電気抵抗率	800nΩ・m	密度	7750kg/m3
熱膨張係数	10.8～11.6μm/m/℃
ハイライト	Bright Polished Stainless Steel Round Bar , 17-4PH Stainless Steel Bright Bar , OD 6-300mm Stainless Steel Round Bar

メッセージ

製品の説明

Bright Polished 17-4PH Stainless Steel Round Bar

Product Specification

Products	17-4PH Stainless Steel Round Bar
Standard	ASTM GB DIN EN
Diameter	8 - 450mm
Length	6m /pcs or cutting as request
Finishing	black bar / Bright Bar
Main Grade	201 301 303Cu 304 304L 309S 310S 316L 316Ti 317L 318 321 347 410 420 430 431 440a/b/c 904L 2205 2507 Hastelloy C276 C4 C22 Inconel 600 625 Incoloy 800 825 825H.etc
Service	Cutting, surface polishing, heat treatment
Brand	Walsin BAOSTEEL TISCO QINGSHAN

Material Description

17-4 Precipitation Hardening (Type 630) is a chromium-copper precipitation hardening stainless steel used for applications requiring high strength and moderate corrosion resistance. High strength is maintained to approximately 600°F (316°C).

General Properties

Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with Cu and Nb/Cb additions. The grade combines high strength, hardness (up to 572°F / 300°C), and corrosion resistance. Mechanical properties can be optimized with heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi).

Applications & Standards

Applications	Standards
Offshore (foils, helicopter deck platforms, etc.) Food industry Pulp and paper industry Aerospace (turbine blades, etc.) Mechanical components Nuclear waste casks	ASTM A693 grade 630 (AMS 5604B) UNS S17400 EURONORM 1.4542 X5CrNiCuNb 16-4 AFNOR Z5 CNU 17-4PH DIN 1.4542
