17-4PH 630 Hot Rolled Stainless Steel Round Bar with Bright Surface and OD 6-300mm

Certification	ISO, AISI, ASTM, EN, DIN, JIS
Minimum Order Quantity	50 kg
Price	US $1.65-2.85 / kg

Product Details

Shape	Round	Technique	Hot Rolled
Surface Treatment	Bright	Specification	OD 6-300mm
Production Capacity	50000kgs	Tensile Strength	1105-1310 MPa
Yield Strength	1000-1170 MPa	Elongation	10-16%
Hardness	28-44 HRC	Density	7750 Kg/m³
Thermal Conductivity	18.4-22.7 W/m.K	Specific Heat	460 J/kg.K
Electrical Resistivity	800 NΩ.m	Coefficient Of Thermal Expansion	10.8-11.6 µm/m/°C
Maximum Temperature	572°F (300°C)
Highlight	Hot Rolled Stainless Steel Round Bar , Bright Surface 17-4PH Round Bar , OD 6-300mm 630 Round Bar

Leave a Message

Product Description

17-4PH 630 H9 Stainless Steel Round Bar

Overview

17-4 Precipitation Hardening (Type 630) is a chromium-copper precipitation hardening stainless steel designed for applications requiring high strength and moderate corrosion resistance. This alloy maintains high strength up to approximately 600°F (316°C).

Key Characteristics

Precipitation hardening martensitic stainless steel with copper and niobium additions
High strength and hardness maintained up to 572°F (300°C)
Mechanical properties optimized through heat treatment
Very high yield strength up to 1100-1300 MPa (160-190 ksi)
Corrosion resistance equivalent to Alloy 304 or 430 in many environments

Applications

Offshore equipment (foils, helicopter deck platforms)
Food processing industry components
Pulp and paper manufacturing equipment
Aerospace components (turbine blades)
Mechanical components and nuclear waste casks
Engine components and boat propeller shafts
Plastic molding dies, valves, and gears

Standards Compliance

ASTM A693 grade 630 (AMS 5604B) UNS S17400
EURONORM 1.4542 X5CrNiCuNb 16-4
AFNOR Z5 CNU 17-4PH
DIN 1.4542
Japanese JIS SUS 630

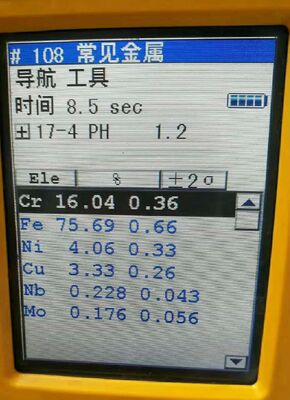

Chemical Composition

Element	Content (%)
Carbon (C)	≤ 0.07
Manganese (Mn)	≤ 1.00
Silicon (Si)	≤ 1.00
Phosphorus (P)	≤ 0.04
Sulfur (S)	≤ 0.030
Chromium (Cr)	15.0 - 17.5
Nickel (Ni)	3.0 - 5.0
Copper (Cu)	3.0 - 5.0
Niobium + Tantalum (Nb+Ta)	0.15 - 0.45

Mechanical Properties

Condition	Tensile Strength (MPa)	Yield Strength 0.2% Proof (MPa)	Elongation (% in 50mm)	Hardness (HRC)
Solution Treated	1105 (typ)	1000 (typ)	15 (typ)	38 max
Condition H900	1310 min	1170 min	10 min	40 min
Condition H1150	930 min	724 min	16 min	28 min

Physical Properties

Property	Value
Density	7750 kg/m³
Thermal Expansion (0-100°C)	10.8 µm/m/°C
Thermal Conductivity (100°C)	18.4 W/m·K
Specific Heat (0-100°C)	460 J/kg·K
Electrical Resistivity	800 nΩ·m

Alternative Material Comparison

Alternative Grade	Selection Considerations
431	Higher toughness, better availability in some sizes
416	Free-machining martensitic steel, better for repetition machining, lower cost
316	Higher corrosion resistance but much lower strength
2205	Much better corrosion resistance with lower strength (but higher than 316)

Heat Treatment

Solution Treatment (Condition A): Heat to 1040°C for 0.5 hours, then air-cool to 30°C. Small sections may be oil quenched.

Age Hardening: Performed at low temperatures to achieve required mechanical properties. Typical conditions include:

Condition	Temperature (°C)	Time (h)	Typical Hardness (HRC)
H900	482	1	44
H925	496	4	42
H1025	552	4	38
H1150	621	4	33

Fabrication Properties

Welding: Can be welded using all conventional methods without pre-heating. Design carefully to prevent weldment stresses.

Machining: Best machined in solution-treated condition with rates similar to grade 304 stainless steel.

Corrosion Resistance

17-4PH withstands corrosive attacks better than standard hardenable stainless steels and is comparable to Alloy 304 in most media. For optimal stress corrosion cracking resistance, aging temperatures above 550°C are recommended.
