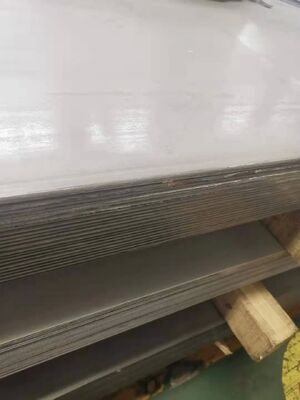

Hot Rolled Inconel 600 Sheet and Plate with Polished Surface for Corrosion Resistance
Product Details
| Model NO. | Inconel 600 | Shape | Flat |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Polished |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 500000kgs |
| Ni Content | 72.0-76.0% | Cr Content | 14.0-17.0% |
| Fe Content | 6.0-10.0% | C Content | Max 0.15% |
| Mn Content | Max 1.0% | S Content | Max 0.015% |
| Si Content | Max 0.5% | Ultimate Tensile | 760 MPa |
| Yield Strength | 275-585 MPa | ||
| Highlight | Hot Rolled Inconel 600 Sheet,Polished Surface Inconel 600 Plate,Corrosion Resistant Nickel-Chromium Alloy Sheet |
||
Product Description
Inconel 600 Sheet & Plate
Inconel 600 (UNS N06600) Nickel-Chromium Alloy
High Performance Alloys stocks and produces Inconel 600 in bar, wire cuts, sheet, plate, strip, tube, and pipe forms.
Overview
Inconel 600 is a nickel-chromium alloy designed for use from cryogenic to elevated temperatures up to 2000°F (1093°C). The alloy offers excellent oxidation resistance at high temperatures with good performance in carburizing and chloride-containing environments.
The high nickel content (72.0% min) provides resistance under reducing conditions and makes it resistant to corrosion by numerous organic and inorganic compounds. This composition also delivers excellent resistance to chloride-ion stress-corrosion cracking and alkaline solutions.
The chromium content (14.0-17.0%) provides resistance to sulfur compounds and various oxidizing environments. Alloy 600 is relatively unaffected by most neutral and alkaline salt solutions and performs well in caustic environments, steam, and mixtures of steam, air, and carbon dioxide.
Key Characteristics
- Resistant to a wide range of corrosive media
- Virtually immune to chlorine ion stress corrosion cracking
- Demonstrates adequate resistance to organic acids (acetic, formic, stearic)
- Excellent resistance to dry gases including chlorine and hydrogen chloride up to 550°C
- Good scaling resistance and high strength at elevated temperatures
- Resists ammonia-bearing atmospheres, nitrogen, and carburizing gases
- Non-magnetic with excellent mechanical properties
- Good workability and readily weldable
Applications
- Thermocouple sheaths
- Ethylene dichloride (EDC) cracking tubes
- Conversion of uranium dioxide to tetrafluoride
- Production of caustic alkalis, particularly with sulfur compounds
- Reactor vessels and heat exchanger tubing for vinyl chloride production
- Process equipment for chlorinated and fluorinated hydrocarbons
- Nuclear reactor components (control rod guide tubes, steam generator baffle plates)
- Furnace retort seals, fans, and fixtures
- Roller hearths and radiant tubes in carbon nitriding processes
Chemical Composition
| Element | Minimum (%) | Maximum (%) |
|---|---|---|
| Ni (Nickel) | 72.0 | - |
| Cr (Chromium) | 14.0 | 17.0 |
| Fe (Iron) | 6.0 | 10.0 |
| C (Carbon) | - | 0.15 |
| Mn (Manganese) | - | 1.0 |
| Si (Silicon) | - | 0.5 |
| S (Sulfur) | - | 0.015 |
Mechanical Properties
| Condition | Ultimate Tensile Strength | Yield Strength (0.2% OS) | Elongation (%) |
|---|---|---|---|
| Cold Worked | 110 KSi (760 MPa) min | 85 KSi (585 MPa) min | 10 min |
| Hot Worked | 90 KSi (620 MPa) min | 40 KSi (275 MPa) min | 25 min |
Specifications
| Form | Standard |
|---|---|
| Metal Type | UNS N06600 |
| Bar | ASTM B166, AMS 5665, Din 17752 |
| Sheet/Plate | ASTM B168, AMS 5540, Din 17750 |
| Tube/Pipe | ASTM B167 |
| Forging | ASTM B564, Din 17754 |
| Weld Wire | FM 82/ ERNiCr-3 |
| Weld Electrode | FM 182/ ENiCrFe-3 |
| Din | 2.4816 |
Machining Data
Carbide tools are suggested for rates better than 50% of Type 304.
| Machining Type | Suggested Starting Rates |
|---|---|
| Single Point Turning | Roughing: 0.15" depth, 0.015"/rev feed, 175 SFM Finishing: 0.025" depth, 0.007"/rev feed, 200 SFM |
| Drilling | 1/4" Dia: 0.004"/rev feed, 60 SFM 1/2" Dia: 0.007"/rev feed, 60 SFM 3/4" Dia: 0.010"/rev feed, 60 SFM |
| Reaming | Feed: same as drilling, 100 SFM |
| Side and Slot Milling | Roughing: 0.25" depth, 0.007"/tooth feed, 125 SFM Finishing: 0.050" depth, 0.009"/tooth feed, 140 SFM |
These rates are for carbide tools: Type C-2 for roughing, drilling and reaming; Type C-3 for finishing.

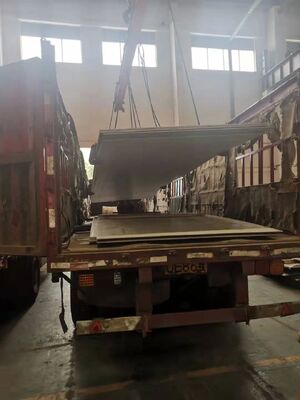

Product Packaging
INCONEL® is a registered trademark of Special Metals Corporation.
