EN10216-2 X10CrMoVNb9-1 Seamless Alloy Steel Pipe Hot Finished Cold Drawn for High Temperature Applications
Product Details
| Outer Diameter | 6-1200mm | Wall Thickness | 1-120mm |
|---|---|---|---|
| Length | 6m,5.8m,11.8m,12m | Surface Treatment | Black Painted, PE Coated, Galvanized |
| Section Shape | Round | Carbon Content | 0.05-0.15% (T11) |
| Manganese Content | 0.30-0.60% (T11) | Phosphorus Content | ≤0.025% (T11) |
| Sulfur Content | ≤0.025% (T11) | Silicon Content | 0.50-1.00% (T11) |
| Chromium Content | 0.50-1.00% (T11) | Molybdenum Content | 1.00-1.50% (T11) |
| Tensile Strength | ≥415 MPa (T11) | Yield Strength | ≥205 MPa (T11) |
| Elongation | ≥30% (T11) | ||
| Highlight | EN10216-2 X10CrMoVNb9-1 Seamless Alloy Steel Pipe,Hot Finished Cold Drawn Seamless Steel Pipe,High Temperature Resistant Alloy Steel Pipe |
||
Product Description
EN10216-2 X10CrMoVNb9-1 Seamless Alloy Steel Pipe
Hot Finished / Cold Drawn alloy steel seamless pipes manufactured to exacting standards for high-performance applications.
Product Specifications
| Item | Cold Rolled / Cold Drawn alloy steel seamless pipe |
| Standards | JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTMA335/A335m, ASTMA213/A213m, DIN 17175 |
| Model Numbers | 12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo |
| Surface | Black painted, PE coated, galvanized |
| Length | 6m, 5.8m, 11.8m, 12m, or as required |
| Wall Thickness | 1-120mm |
| Outer Diameter | 6-1200mm |
Trade Terms
| Payment Terms | T/T, L/C, Western Union |
| Price Terms | FOB, CIF, CFR, Ex-work, CNF |
Chemical Composition (%)
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
|---|---|---|---|---|---|---|---|---|
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Properties
| Standard | Steel Grade | Tensile (MPa) | Yield (MPa) | Elongate (%) | Hardness |
|---|---|---|---|---|---|
| 20MnG | 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 15CrMoG | 440~640 | ≥235 | ≥21 | |
| 12Cr2MoG | 12Cr2MoG | 450~600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 12Cr1MoVG | 470~640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 12Cr2MoWVTiB | 540~735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| ASME SA210 | SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| ASME SA213 | SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| ASME SA213 | SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| DIN17175 | ST45.8/ | 410~530 | ≥255 | ≥21 | / |
| DIN17175 | 15Mo3 | 450~600 | ≥270 | ≥22 | |
| DIN17175 | 13CrMo44 | 440~590 | ≥290 | ≥22 | |
| DIN17175 | 10CrMo910 | 480~630 | ≥280 | ≥20 |
Heat Treatment Assurance
Our facility utilizes a full-automatic natural gas furnace measuring 24 meters in length, maintaining temperature tolerance within 10ºC for precise heat treatment control.
Important Note: It is recommended that the tempering temperature should be at least 100°F [50°C] above the intended service temperature. Please advise if service temperature exceeds 1100°F [600°C]. Pipes of Grades P1, P2, and P12 may receive final heat treatment at 1200°F [650°C] to 1300°F [705°C]. All Grade P5c pipes receive final heat treatment between 1325°F [715°C] to 1375°F [745°C].
Quality Assurance
- Each lot of raw materials undergoes spectrometer testing before storage
- 100% PMI (Positive Material Identification) of mother pipe to ensure correct material
- 100% PMI of finished pipe to verify correct grade production
Permitted OD Tolerance
| OD (mm) | Plus Tolerance (+) | Minus Tolerance (-) |
|---|---|---|
| 10.29-48.3 | 0.4 | 0.4 |
| <48.3--≤114.3 | 0.79 | 0.79 |
| <114.3-≤219.1 | 1.59 | 0.79 |
| <219.1-≤323.9 | 2.38 | 0.79 |
| <323.9 | ±1% | |
Applications
High pressure, low & medium pressure boiler steel pipes and tubes are ideal for manufacturing super-heaters, re-heaters, water walls, and economizers in large-scale power plants.

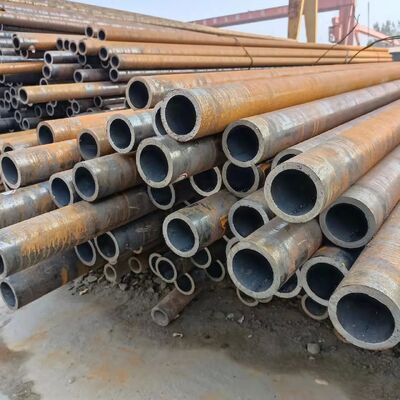

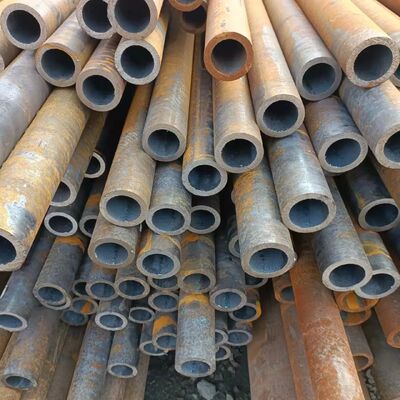

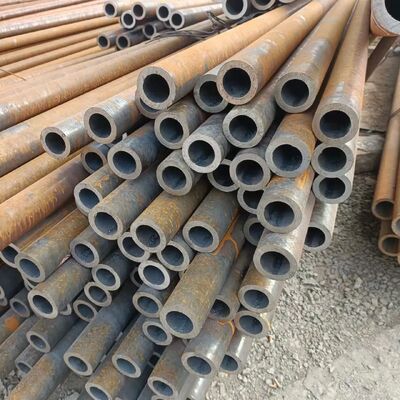

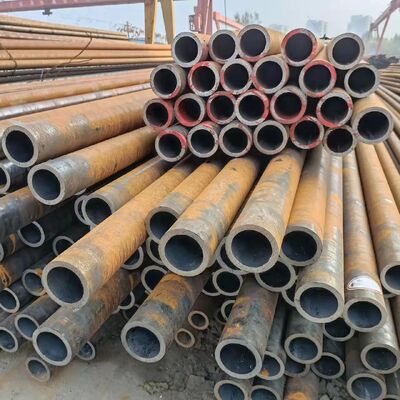

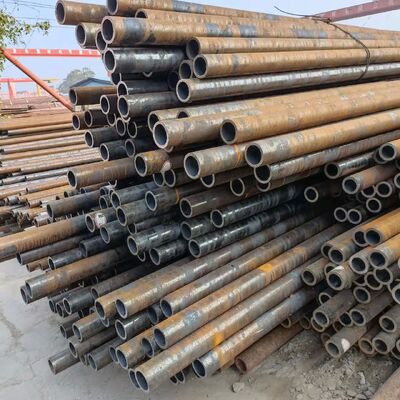

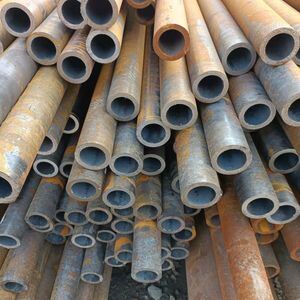

Product Images
Company Information
We are a professional enterprise specializing in pipe fittings production, steel pipe sales, and export services. Our core products include alloy steel pipes, alloy pipes, and alloy pipe fittings.
Manufacturing Capabilities
Established in 1992, our 100,000 square meter facility employs 520 staff including 3 senior engineers, 12 engineers, and 150 technical professionals. Annual production exceeds 20,000 tons of pipe fittings and 50,000 tons of pipe flux.
Certifications & Quality Standards
ISO9001 Quality Management, ISO14001 Environmental Management, OHSA18001 Occupational Health & Safety, Pressure Pipe Special Equipment Manufacturing License, Measurement Assurance Certificate, and multiple industry network certifications including China Power Network and China Petrochemical Materials Supply Network.
Production Equipment
Our facility features 420 advanced equipment units including pushing machines, press machines, large heat treatment furnaces, beveling machines, sawing machines, three-way extruders, splint hammers, and comprehensive testing instruments. We maintain over 20,000 tons of special steel pipe inventory year-round.
Materials & Applications
We supply materials including SA106B, 20g, Q345, 12Cr1MoVG, 15CrMoG, 1Cr5Mo, 1Cr9Mo, 10CrMo910, A335P5/P9/P11/P12/P22/P91/P92, WB36, and various austenitic stainless steels. Our products serve petroleum, chemical, power, metallurgy, city gas, heat pipe networks, shipbuilding, and other industrial pipeline applications.
Global Reach
Our products are exported to Southeast Asia, Central Asia, North Africa, South America, and other global markets. We are committed to high-quality products, excellent service, and building lasting partnerships with our customers.
