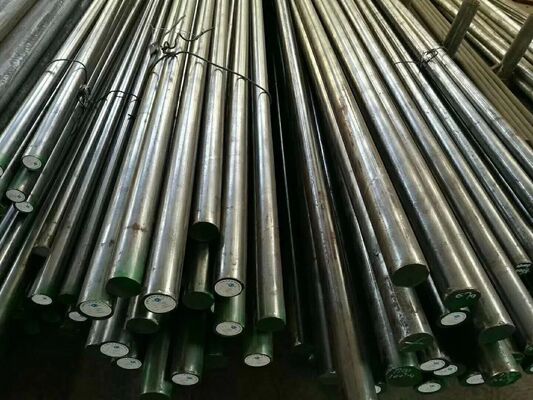

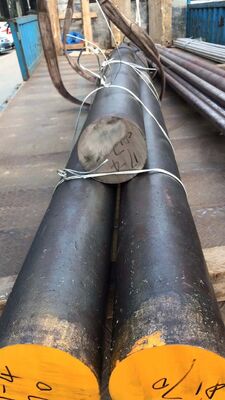

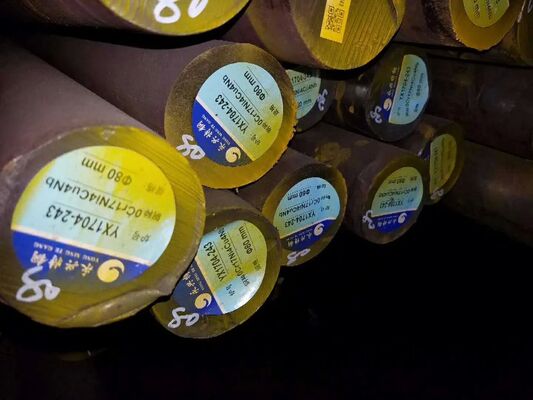

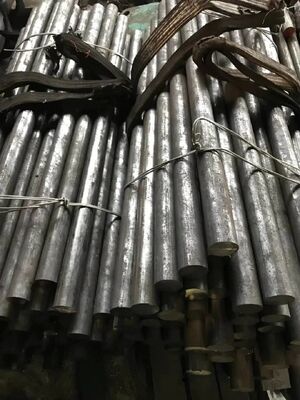

17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface and OD 6-300mm
| Model NO. | 630 | Shape | Round |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |

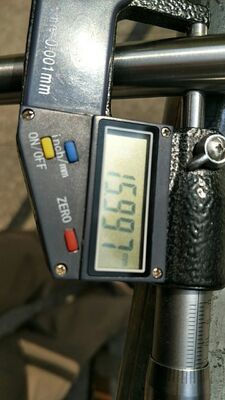

| Specification | OD 6-300mm | Production Capacity | 50000kgs |
| Tensile Strength | 1105-1310 MPa | Yield Strength | 1000-1170 MPa |
| Elongation | 10-16% | Hardness | 28-44 HRC |
| Density | 7750 Kg/m³ | Thermal Conductivity | 18.4-22.7 W/m.K |
| Specific Heat | 460 J/kg.K | Electrical Resistivity | 800 NΩ.m |
| Max Temperature | 572°F (300°C) | ||
| Highlight | Hot Rolled 17-4PH Stainless Steel Round Bar,Bright Surface 630 Stainless Steel Round Bar,OD 6-300mm UNS S17400 Round Bar |
||
17-4 Precipitation Hardening (Type 630) is a chromium-copper precipitation hardening stainless steel designed for applications requiring high strength and moderate corrosion resistance. This alloy maintains high strength up to approximately 600°F (316°C).
Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with copper and niobium additions. This grade offers an optimal combination of high strength, hardness (up to 572°F / 300°C), and corrosion resistance. Mechanical properties can be optimized through heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi).
- Offshore applications (foils, helicopter deck platforms)
- Food processing industry
- Pulp and paper industry
- Aerospace components (turbine blades)
- Mechanical components
- Nuclear waste casks
- ASTM A693 grade 630 (AMS 5604B) UNS S17400
- EURONORM 1.4542 X5CrNiCuNb 16-4
- AFNOR Z5 CNU 17-4PH
- DIN 1.4542
Alloy 17-4 PH provides superior corrosion resistance compared to standard hardenable stainless steels and is comparable to Alloy 304 in most media. For applications with potential stress corrosion cracking risks, higher aging temperatures above 1022°F (550°C) are recommended, with 1094°F (590°C) being optimal for H2S media environments.
The alloy demonstrates corrosion resistance in chemical, petroleum, paper, dairy, and food processing industries, equivalent to 304L grade performance.

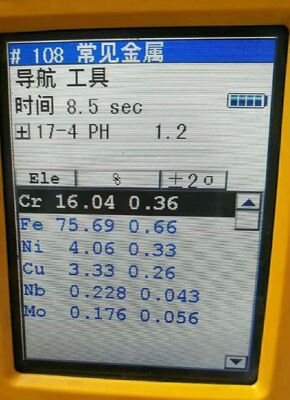

| Element | Content Range (%) |
|---|---|
| C | 0.07 max |
| Mn | 1.0 max |
| Si | 1.0 max |
| P | 0.04 max |
| S | 0.030 max |
| Cr | 15.0 - 17.5 |
| Ni | 3.0 - 5.0 |
| Cu | 3.0 - 5.0 |
| Nb+Ta | 0.15 - 0.45 |
| Condition | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell C |
|---|---|---|---|---|
| Solution Treated | 1105 typ | 1000 typ | 15 typ | 38 max |
| Condition 900 | 1310 min | 1170 min | 10 min | 40 min |
| Condition 1150 | 930 min | 724 min | 16 min | 28 min |
| Property | Value |
|---|---|
| Density | 7750 kg/m³ |
| Thermal Conductivity at 100°C | 18.4 W/m·K |
| Thermal Conductivity at 500°C | 22.7 W/m·K |
| Specific Heat (0-100°C) | 460 J/kg·K |
| Electrical Resistivity | 800 nΩ·m |
| Mean Coefficient of Thermal Expansion (0-100°C) | 10.8 µm/m·°C |
| Alternative Grade | Selection Considerations |
|---|---|
| 431 | Higher toughness, better availability in some sizes |
| 416 | Free-machining martensitic stainless steel, lower cost |
| 316 | Higher corrosion resistance but much lower strength |
| 2205 | Much better corrosion resistance with lower strength |
Solution treatment (Condition A): Heat to 1040°C for 0.5 hours, then air-cool to 30°C. Small sections may be oil quenched.
Hardening: Age-hardened at low temperatures to achieve required mechanical properties. Typical shrinkage is 0.10% for condition H1150 and 0.05% for condition H900.
Welding: Can be welded using all conventional methods without pre-heating requirement.
Machining: Best machined in solution-treated condition, with machining rates similar to grade 304 stainless steel.
- Engine components
- High-strength boat propeller shafts
- Plastic molding dies
- Valves and gears
- Aerospace turbine blades
- Nuclear industry components
