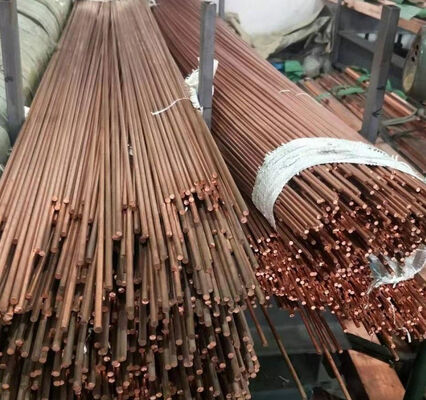

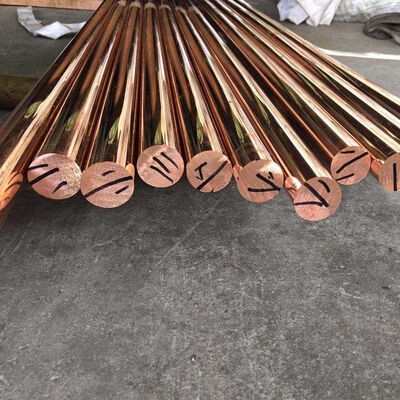

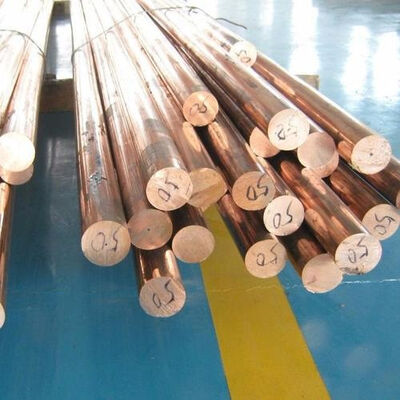

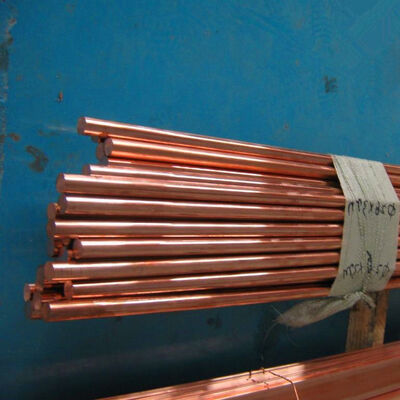

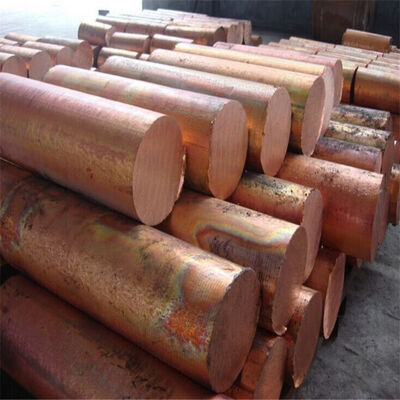

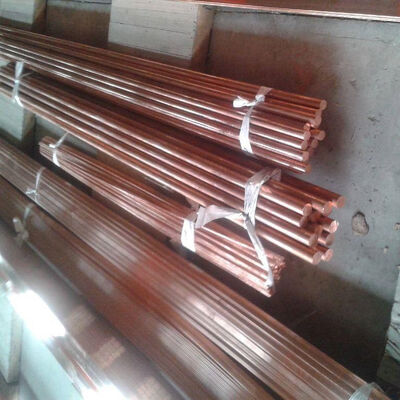

C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
Product Details
| Model NO. | C12000 | Shape | Round |
|---|---|---|---|
| Alloy | Non-alloy | Diameter | 4 - 250mm |
| Length | Custom Any Length As Request | Material | Copper |
| Grade | C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C443 | Temper | O-H112; T3-T8; T351-T851 |
| Size | Thickness 0.3mm~100mm; Width 50mm~2500mm; Length 1000mm~12000mm | Surface | Mill Finish, Polished, Anodizing, Brushing, Sand Blasting, Powder Coating |
| Chemical Composition | Cu:99.90;P:0.004-0.012 | Tensile Strength | 215 ~ 271 MPa |
| Elongation | ≥25% | Hardness | 55 ~ 100HV |
| Other Shape | Round,Square,Flat,Hexagonal | ||
| Highlight | C12000 (TP2) Copper Bar,Diameter 4 - 300mm Copper Rod,Custom Cutting Any Length Phosphorous Deoxidized Copper |
||
Product Description
C12000 (TP2) Copper Bar - Diameter 4-300mm Custom Cutting
High-quality phosphorous deoxidized copper bars available in diameters from 4mm to 300mm with custom cutting to any required length.
Product Specifications
| Product Name | Copper Bar |
|---|---|
| Material | Copper |
| Standard | ASTM, AISI, JIS, DIN, GB, EN |
| Grade | C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200, T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1 |
| Shape | Flat plate |
| Temper | O-H112; T3-T8; T351-T851 |
| Size | Thickness: 0.3mm-100mm; Width: 50mm-2500mm; Length: 1000mm-12000mm |
| Surface | Mill finish, polished, anodizing, brushing, sand blasting, powder coating, etc. |
| Payment Terms | T/T, L/C, Western Union, Paypal |
| Price Terms | CFR, FOB, CIF, Ex-work, CNF |
Applications
- Further making utensil
- Solar reflective film
- Building appearance
- Interior decorating: ceilings, walls, etc.
- Furniture cabinets
- Elevator decoration
- Signs, nameplates, bags making
- Decorated inside and outside vehicles
- Household appliances: refrigerators, microwave ovens, audio equipment, etc.
- Consumer electronics: mobile phones, digital cameras, MP3 players, USB drives, etc.
Package & Contact
Standard export seaworthy package or as required. Please contact us with any questions.
Material Description
C12000 (TP2) copper bar refers to phosphorous deoxidized copper, a high-purity fusible raw material suitable for use in reducing atmospheres but not in oxidizing atmospheres. Commonly used in gasoline or gas delivery pipes, drain pipes, condensate pipes, mine tubes, condensers, evaporators, heat exchangers, and train box components.
Chemical Composition
Cu: 99.90%; P: 0.004-0.012%
Mechanical Properties
Tensile strength: 215-271 MPa; Elongation: ≥25%; Hardness: 55-100 HV
| Product Name | C12000 Copper Bar |
|---|---|
| Length | 1-6m, or as needed |
| Diameter | 3-800mm, or as needed |
| Standard | GB, ASTM, BS, DIN, JIS |
| Grade | Phosphorous Deoxidized Copper |
| Cu (min) | 99% |
| Application | Electronic, Industry, Decoration |
International Grade Equivalents
| China (GB) | Germany (DIN) | Europe (EN) | International (ISO) | US (UNS) | Japan (JIS) |
|---|---|---|---|---|---|
| TU2 | OF-Cu | 2.004 | Cu-OFE | C10200 | C1020 |
| T2 | Se-Cu | 2.0065 | Cu-ETP | C11000 | C1100 |
| TP2 | SF-Cu | 2.0090 | Cu-DHP | C12000 | C1220 |
Equivalent Standards
ASME SB111, ASTM B152, ASTM B359, ASTM B506, ASTM B716, ASME SB133, ASTM B187, ASTM B372, ASTM B623, ASTM B716, ASME SB359, ASTM B188, ASTM B395, ASTM B638, ASTM B743, ASME SB395, ASTM B224, ASTM B42, ASTM B640, ASTM B75, ASME SB42, ASTM B272, ASTM B442, ASTM B641, MIL B-18907, ASME SB75, ASTM B280, ASTM B447, ASTM B68, MIL B-20292, ASTM B111, ASTM B302, ASTM B451, ASTM B687, MIL T-24107, ASTM B133, ASTM B306, ASTM B5, ASTM B698, MIL T-3235, SAE J463, MIL W-85, SAE J461
