C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
Product Details
| Model NO. | C11000 | Shape | Coil |
|---|---|---|---|
| Alloy | Non-alloy | Color | Red |
| Diameter | 6*3-300*50mm | Length | 1-6m Or Cutting Any Length As Request |
| Surface | Bright | Copper Grade | C11000,C10100,C12200 |
| Size Range | Round Bar: 6mm - 200mm, Square Bar: 4x4mm - 200x200mm, Hex Bar: 8x8mm - 100x100mm, Flat Bar: 20x2mm - 200x20mm | Processing | Extrusion/cold Drawn |
| Temper | 1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft | Surface Finish | Mill, Polished, Bright, Oiled, Hair Line, Brush, Mirror, Sand Blast |
| Chemical Composition | Cu ≥99.90 | Melting Point | 934 To 967 Degrees |
| Container Size | 20ft GP: 5.9m X 2.13m X 2.18m, 40ft GP: 11.8m X 2.13m X 2.18m, 40ft HG: 11.8m X 2.13m X 2.72m | ||
| Highlight | C11000 Copper Flat Bar,ASTM Standard Red Copper Strip,6*3-300*50mm Copper Flat Strip |
||
Product Description
C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
Product Specifications
| Product Name | Copper Flat Bar |
| Copper & Copper Alloy Grades | C11000, C10100, C12200, H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200, C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561, CuZn30, CuZn32, CuZn35, CuZn37, CuZn40, TU1, T2, TP2, and more |
| Available Sizes |
Round Bar: 6mm - 200mm Square Bar: 4x4mm - 200x200mm Hex Bar: 8x8mm - 100x100mm Flat Bar: 20x2mm - 200x20mm |
| Standard Lengths | 2m, 3m, 5.8m, 6m, or custom lengths as required |
| Processing Method | Extrusion / Cold Drawn |
| Temper Options | 1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft |
| Surface Finishes | Mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required |
Material Description
C11000 copper bar offers excellent electrical and thermal conductivity, corrosion resistance, and processing properties. It can be welded and brazed effectively. With low impurity content that minimally affects conductivity, this material provides reliable performance, though it may be susceptible to "hydrogen disease" during high-temperature processing above 370°C.
Chemical Composition
| Grade | Cu | Pb | Fe | Zn |
|---|---|---|---|---|
| C11000 | ≥99.90% | - | - | - |
Product Types & Dimensions
| Type | Grade | Shape | Temper | Dimension (mm) | Length (mm) |
|---|---|---|---|---|---|
| Extruded | C11000 | Round | O | 16-<30 | L500-5000 |
| Extruded | C11000 | Round | O | 30-300 | OD≤50 L1000-5000 OD:50-75 L500-5000 |
| Extruded | C11000 | Rectangle | O | 20-120 | OD>75-120 L500-4000 |
| Extruded | C11000 | Square, Hexagonal | O | 20-120 | OD>120 L300-4000 |
| Drawing | C11000 | Round | O, H | 6-80 | OD≤50 L1000-500 OD>50-80 L500-5000 |
| Drawing | C11000 | Square, Hexagonal | H | 8-60 | 8-60 |
Product Introduction
Copper bars are non-ferrous metal processing bars known for excellent processing performance and high conductivity. They are primarily categorized as:
- Brass Rods: Copper-zinc alloys with yellow coloration, melting points of 934-967°C, offering good mechanical properties and wear resistance. Used in precision instruments, ship parts, gun casings, automotive synchronizer gear rings, marine pumps, valves, and structural components.
- Purple Copper Rods: High copper content with purple-red color, featuring superior electrical conductivity, thermal conductivity, corrosion resistance, and processing properties. Characterized by high purity, fine structure, low oxygen content, and excellent ductility for fine machining applications.
Packaging & Delivery
Export standard packaging, bundled or as required. Container specifications:
- 20ft GP: 5.9m (length) × 2.13m (width) × 2.18m (height) - approximately 24-26 CBM
- 40ft GP: 11.8m (length) × 2.13m (width) × 2.18m (height) - approximately 54 CBM
- 40ft HG: 11.8m (length) × 2.13m (width) × 2.72m (height) - approximately 68 CBM

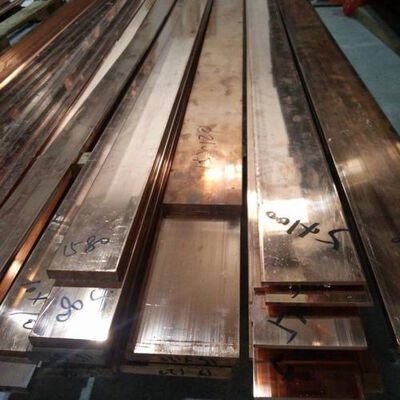

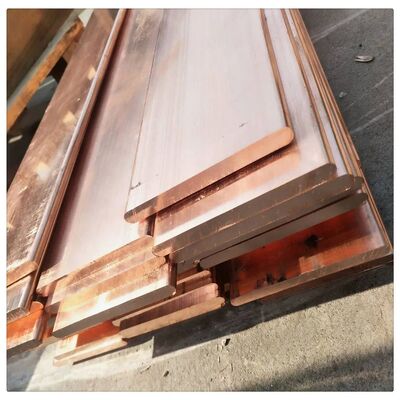

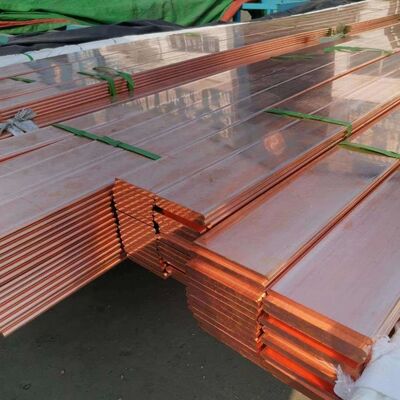

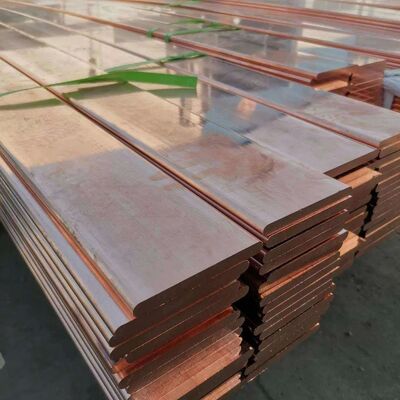

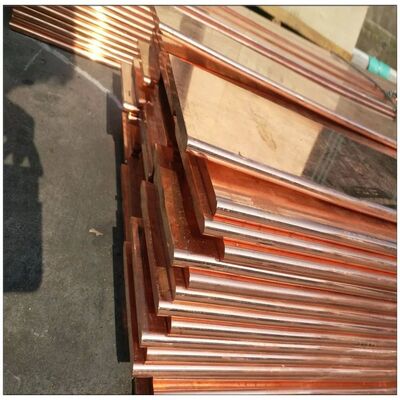

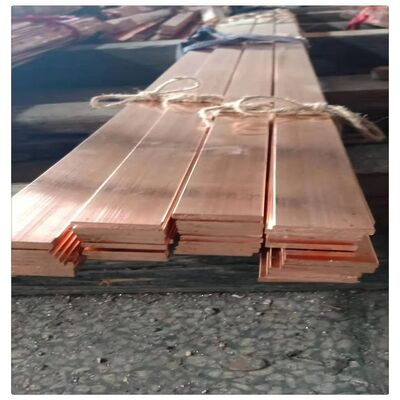

Product Images
