C10100 ASTM Standard Copper Flat Bar in 6m Length for High Conductivity Applications
Product Details
| Copper Grade | C10100 | Shape | Plate |
|---|---|---|---|
| Alloy Type | Non-alloy | Color | Red |
| Size Range | 10*3-200*40mm | Length | 1-6m |
| Other Shapes | Square, Hexagonal, Round | Density | 8.89-8.94 G/cm³ |
| Melting Point | 1083°C | Conductivity | 101% IACS |
| Oxygen Content | <0.001% | Machinability Rate | 20% |
| Forging Temperature | 760-871°C | Forging Rate | 65% |
| Annealing Temperature | 371-649°C | ||
| Highlight | C10100 Copper Flat Bar,ASTM Standard Copper Bar,6m Length Copper Rod |
||
Product Description
TU1 Copper Flat Bar C10100 ASTM EN DIN Standard
High-quality oxygen-free copper flat bars available in 6m length with various processing options and surface finishes.
Product Specifications
| Product Name | Copper Flat Bar |
|---|---|
| Copper Alloy Grades | C11000, C10100, C12200, H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200, C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561, CuZn30, CuZn32, CuZn35, CuZn37, CuZn40, TU1, T2, TP2, and more |
| Available Sizes |
Round Bar: 6mm - 200mm Square Bar: 4x4mm - 200x200mm Hex Bar: 8x8mm - 100x100mm Flat Bar: 20x2mm - 200x20mm |
| Standard Length | 2m, 3m, 5.8m, 6m, or as required |
| Processing Method | Extrusion/Cold Drawn |
| Temper Options | 1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft |
| Surface Finish | Mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required |
Material Description: Oxygen-Free Copper (C10100)
Oxygen-free high thermal conductivity (OFHC) C10100 copper is specifically designed for electrical and electronic conductors, wave guides, cavity resonators, super conductor matrixes, vacuum tube and solid-state devices, and glass to metal seals.
C10100 copper features a conductivity rating of 101% IACS - the highest among all copper alloys. With a chemical composition of 99.99% pure copper, it offers exceptional electrical and thermal performance. The material has a density of 8.89 to 8.94 grams per cubic centimeter and a melting point of 1083 degrees Celsius.
Benefits of Oxygen-Free Copper
Oxygen-free high conductivity (OFC) copper C10100 undergoes electrolytic refining in an electrically charged solution of copper sulfate and sulfuric acid, resulting in exceptionally low oxygen content (less than 0.001%). This high-purity copper delivers superior conductivity and enhanced ability to transfer low-frequency sounds, making it ideal for high-end audio-visual systems, speaker wires, audio/video connector cable assemblies, and amplifier wires.
Fabrication Properties
- Machining: Machinability rate of 20%
- Welding: Recommended methods include soldering, brazing, gas shielded arc welding, oxyacetylene welding and butt welding
- Forging: Forged at 760-871°C with a forging rate of 65%
- Hot Working: Excellent hot working properties
- Cold Working: Excellent cold working properties
- Annealing: Annealing occurs at 371-649°C
Applications
Oxygen-free copper C10100 is widely used in various industrial applications including:
- Welding fixtures
- Anodes
- Bus bar in electrical power installations
- Ground straps
- Automotive rectifiers
- Inductors
- Glass to metal seals
- High resistance ratio cryogenic shunts
- Lean-in wire seals
- Transistor component bases
- Bus conductors
- Wave guides
- Hollow conductors

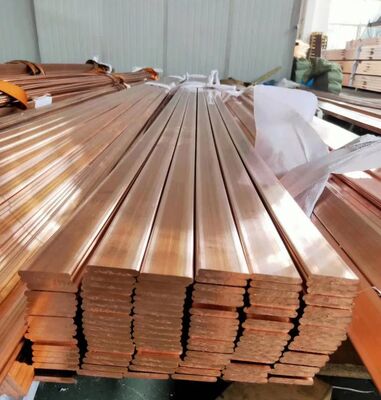

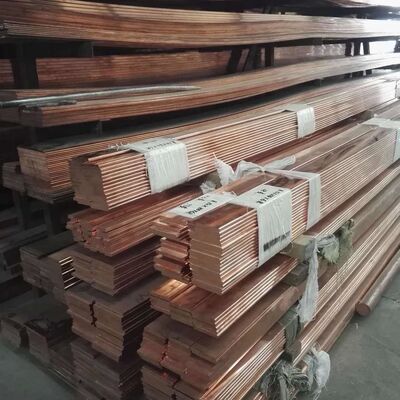

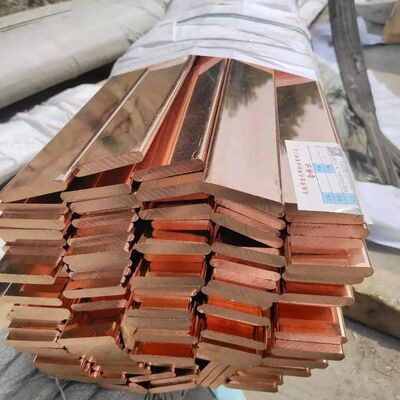

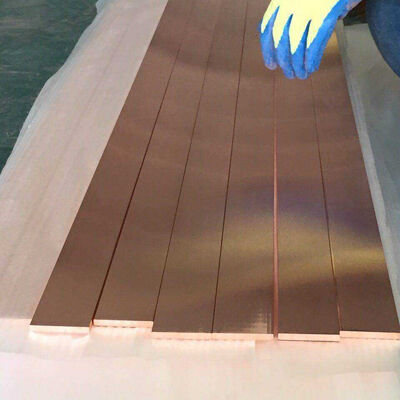

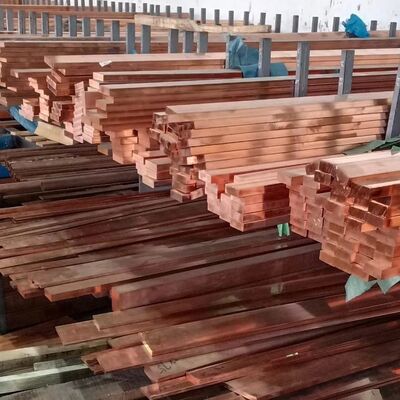

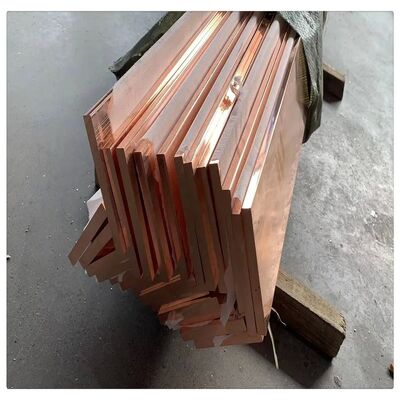

Product Images
