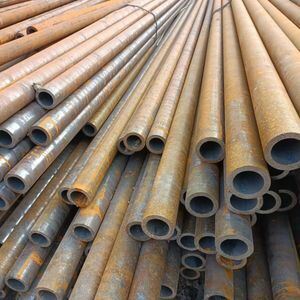

Alloy Steel ASTM A335 Standard Grade T92 P92 High Pressure Boiler Seamless Pipe
Product Details
| Outer Diameter | 6-1200mm | Wall Thickness | 1-120mm |
|---|---|---|---|
| Length | 6m,5.8m,11.8m,12m, Or As Required | Section Shape | Round |
| Surface Treatment | Black | Carbon Content | 0.05-0.15% (T11), 0.07-0.13% (T92) |
| Manganese Content | 0.30-0.60% | Phosphorus Content | ≤0.025% |
| Sulfur Content | ≤0.025% | Chromium Content | 8-9.50% (T91/T92) |
| Molybdenum Content | 0.85-1.05% (T91), 0.3-0.60% (T92) | Vanadium Content | 0.18-0.25% (T91), 0.15-0.25% (T92) |
| Tensile Strength | ≥585MPa (T91), ≥620MPa (T92) | Yield Strength | ≥415MPa (T91), ≥440MPa (T92) |
| Elongation | ≥20% (T91/T92) | ||
| Highlight | ASTM A335 Standard Seamless Steel Pipe,High Pressure Boiler Pipe,Grade T92 P92 Alloy Steel Pipe |
||
Product Description
Alloy Steel ASTM A335 Standard Grade T92 P92 High Pressure Boiler Seamless Pipe
High-quality alloy steel seamless pipes designed for high-pressure boiler applications, manufactured to meet stringent international standards including ASTM A335 specifications.
Product Specifications
Item:
Cold Rolled / Cold Drawn alloy steel seamless pipe
Standards:
JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTMA335/A335m, ASTMA213/A213m, DIN 17175
Model Numbers:
12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo
Product Description
Surface:
Black painted, PE coated, galvanized
Length:
6m, 5.8m, 11.8m, 12m, or as required
Wall Thickness:
1-120mm
Outer Diameter:
6-1200mm
Trade Terms
Payment Terms:
T/T, L/C, Western Union
Price Terms:
FOB, CIF, CFR, Ex-work, CNF
Chemical Composition (%)
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
|---|---|---|---|---|---|---|---|---|
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Properties
| Standard | Steel Grade | Tensile (MPa) | Yield (MPa) | Elongate (%) | Hardness |
|---|---|---|---|---|---|
| 20MnG | 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 15CrMoG | 440~640 | ≥235 | ≥21 | |
| 12Cr2MoG | 12Cr2MoG | 450~600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 12Cr1MoVG | 470~640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 12Cr2MoWVTiB | 540~735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| ASME SA210 | SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| ASME SA213 | SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| ASME SA213 | SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| DIN17175 | ST45.8/ | 410~530 | ≥255 | ≥21 | / |
| DIN17175 | 15Mo3 | 450~600 | ≥270 | ≥22 | |
| DIN17175 | 13CrMo44 | 440~590 | ≥290 | ≥22 | |
| DIN17175 | 10CrMo910 | 480~630 | ≥280 | ≥20 |
Heat Treatment Assurance
Our facility utilizes a fully-automatic natural gas furnace measuring 24 meters in length, ensuring precise temperature control with real temperature tolerance within 10ºC.
Note: It is recommended that the temperature for tempering should be at least 100°F [50°C] above the intended service temperature. Please advise if service temperature exceeds 1100°F [600°C].
Quality Assurance
- Each lot of raw materials undergoes spectrometer testing before storage
- 100% PMI (Positive Material Identification) of mother pipe to ensure correct material
- 100% PMI of finished pipe to verify correct grade production
Permitted OD Tolerance
| OD (mm) | Plus Tolerance (+) | Minus Tolerance (-) |
|---|---|---|
| 10.29-48.3 | 0.4 | 0.4 |
| <48.3--≤114.3 | 0.79 | 0.79 |
| <114.3-≤219.1 | 1.59 | 0.79 |
| <219.1-≤323.9 | 2.38 | 0.79 |
| <323.9 | ±1% | ±1% |
Applications
High pressure, low & medium pressure boiler steel pipes/tubes are suitable for manufacturing super-heaters, re-heaters, water walls, and economizers in large-scale power plants.
Product Images
Company Information
We are a professional enterprise specializing in pipe fittings production, steel pipe sales, and export services. Our core products include alloy steel pipes, alloy pipes, and alloy pipe fittings.
Established in 1992, our factory covers 100,000 square meters and employs 520 staff members, including 3 senior engineers, 12 engineers, and 150 professional technical personnel. Our annual production capacity exceeds 20,000 tons of pipe fittings and 50,000 tons of pipe flux.
Certifications: ISO9001, ISO14001, OHSA18001, pressure pipe special equipment manufacturing license, measurement assurance certificate, and multiple industry network member certifications.
Production Capabilities: Equipped with 420 sets of advanced machinery including pushing machines, press machines, large heat treatment furnaces, and comprehensive testing instruments. We maintain over 20,000 tons of special steel pipes in inventory year-round.
Materials & Applications: Our products serve petroleum, chemical, power generation, metallurgy, city gas, heat pipe networks, shipbuilding, and other industrial pipeline applications.
With a commitment to quality and customer satisfaction, our products are distributed nationwide and exported to Southeast Asia, Central Asia, North Africa, South America, and other global markets.
