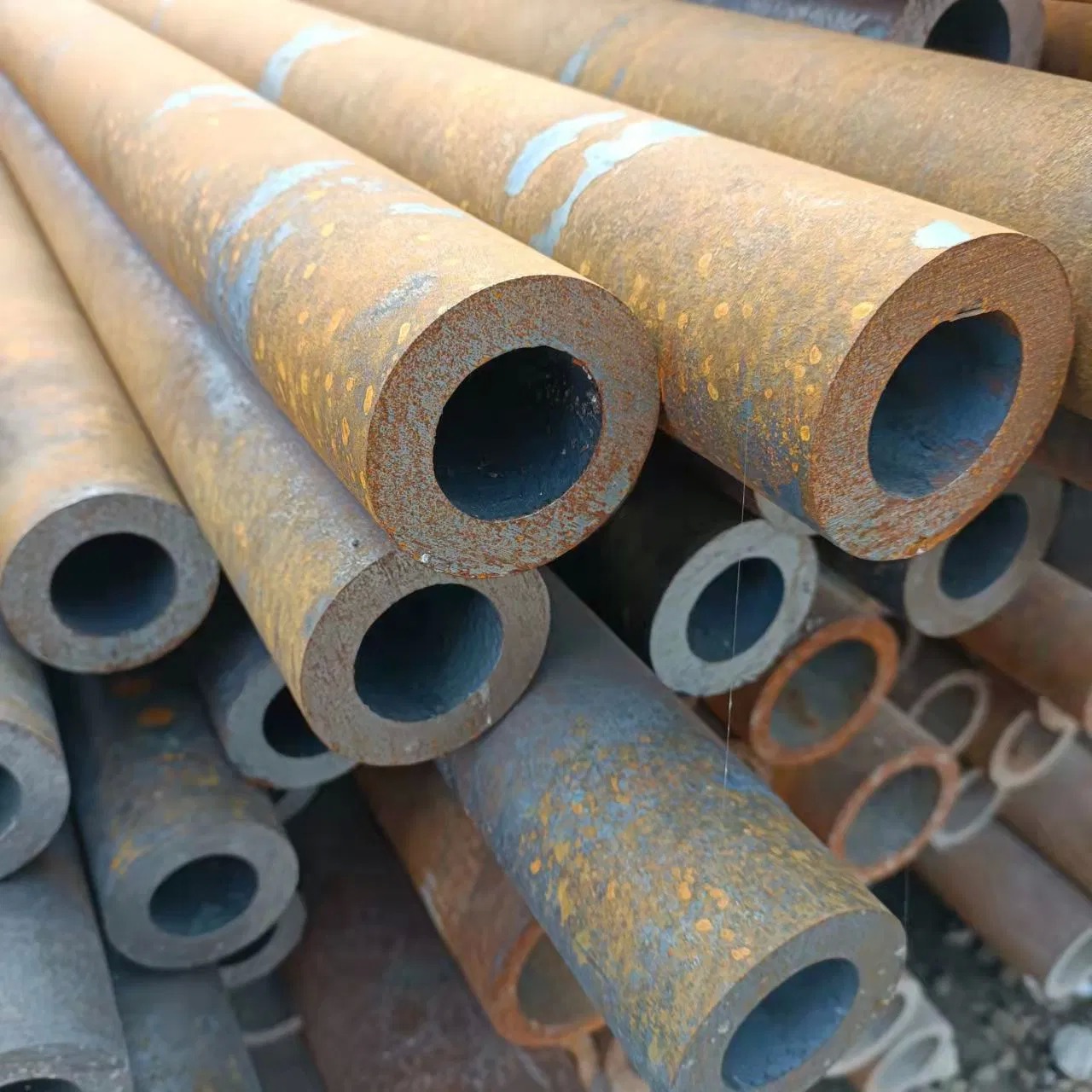

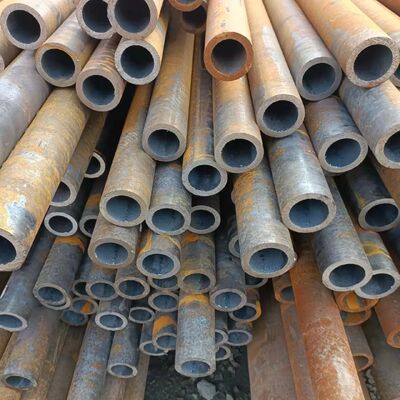

EN10216-3 690QL1 High Pressure Seamless Steel Tube with Fine Grain Ground Surface
Product Details
| Surface Treatment | Black | Section Shape | Round |
|---|---|---|---|
| Outer Diameter | 6-630mm | Wall Thickness | 1-120mm |
| Length | 6m,5.8m,11.8m,12m, Or As Required | Tensile Strength | ≥415-735MPa |
| Yield Strength | ≥205-440MPa | Elongation | ≥18-30% |
| Hardness | ≤143-250HB | Carbon Content | 0.05-0.20% |
| Manganese Content | 0.30-0.61% | Chromium Content | 0.50-9.50% |
| Molybdenum Content | 0.30-1.50% | Vanadium Content | 0.15-0.25% |
| Heat Treatment | 1200°F-1375°F | ||
| Highlight | EN10216-3 690QL1 Seamless Steel Tube,Fine Grain Ground Surface Seamless Steel Tube,High Pressure Seamless Steel Tube |
||
Product Description
EN10216-3 690QL1 High Pressure Seamless Steel Tube
Fine grain ground surface alloy steel seamless pipes designed for high-pressure applications in demanding industrial environments.
Product Specifications
| Item | Cold Rolled / Cold Drawn Alloy Steel Seamless Pipe |
|---|---|
| Standards | JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTMA335/A335m, ASTMA213/A213m, DIN 17175 |
| Model Numbers | 12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo |
| Surface Treatment | Black painted, PE coated, galvanized |
| Length | 6m, 5.8m, 11.8m, 12m, or as required |
| Wall Thickness | 1-120mm |
| Outer Diameter | 6-1200mm |
Trade Terms
| Payment Terms | T/T, L/C, Western Union |
|---|---|
| Price Terms | FOB, CIF, CFR, Ex-work, CNF |
Chemical Composition
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
|---|---|---|---|---|---|---|---|---|
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Properties
| Standard | Steel Grade | Tensile (MPa) | Yield (MPa) | Elongate (%) | Hardness |
|---|---|---|---|---|---|
| 20MnG | 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 15CrMoG | 440~640 | ≥235 | ≥21 | |
| 12Cr2MoG | 12Cr2MoG | 450~600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 12Cr1MoVG | 470~640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 12Cr2MoWVTiB | 540~735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| ASME SA210 | SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| ASME SA213 | SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| ASME SA213 | SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| DIN17175 | ST45.8/ | 410~530 | ≥255 | ≥21 | / |
| DIN17175 | 15Mo3 | 450~600 | ≥270 | ≥22 | |
| DIN17175 | 13CrMo44 | 440~590 | ≥290 | ≥22 | |
| DIN17175 | 10CrMo910 | 480~630 | ≥280 | ≥20 |
Heat Treatment Assurance
Our facility utilizes a full-automatic natural gas furnace measuring 24 meters in length, maintaining precise temperature control with real temperature tolerance within 10ºC.
Important Note: It is recommended that the tempering temperature should be at least 100°F [50°C] above the intended service temperature. Please advise if service temperature exceeds 1100°F [600°C].
Pipe of Grades P1, P2, and P12 (hot finished or cold drawn) may receive final heat treatment at 1200°F [650°C] to 1300°F [705°C]. All Grade P5c pipes undergo final heat treatment in the range from 1325°F [715°C] to 1375°F [745°C].
Quality Assurance Process
- Each lot of raw materials undergoes spectrometer testing before storage
- 100% PMI (Positive Material Identification) of mother pipe to ensure correct material
- 100% PMI of finished pipe to verify correct grade production
Permitted Outer Diameter Tolerance
| Outer Diameter (mm) | Plus Tolerance (+) | Minus Tolerance (-) |
|---|---|---|
| 10.29-48.3 | 0.4 | 0.4 |
| <48.3 - ≤114.3 | 0.79 | 0.79 |
| <114.3 - ≤219.1 | 1.59 | 0.79 |
| <219.1 - ≤323.9 | 2.38 | 0.79 |
| <323.9 | ±1% | |
Applications
High pressure, low & medium pressure boiler steel pipes/tubes are specifically designed for critical components in large-scale power plants, including super-heaters, re-heaters, water walls, and economizers.

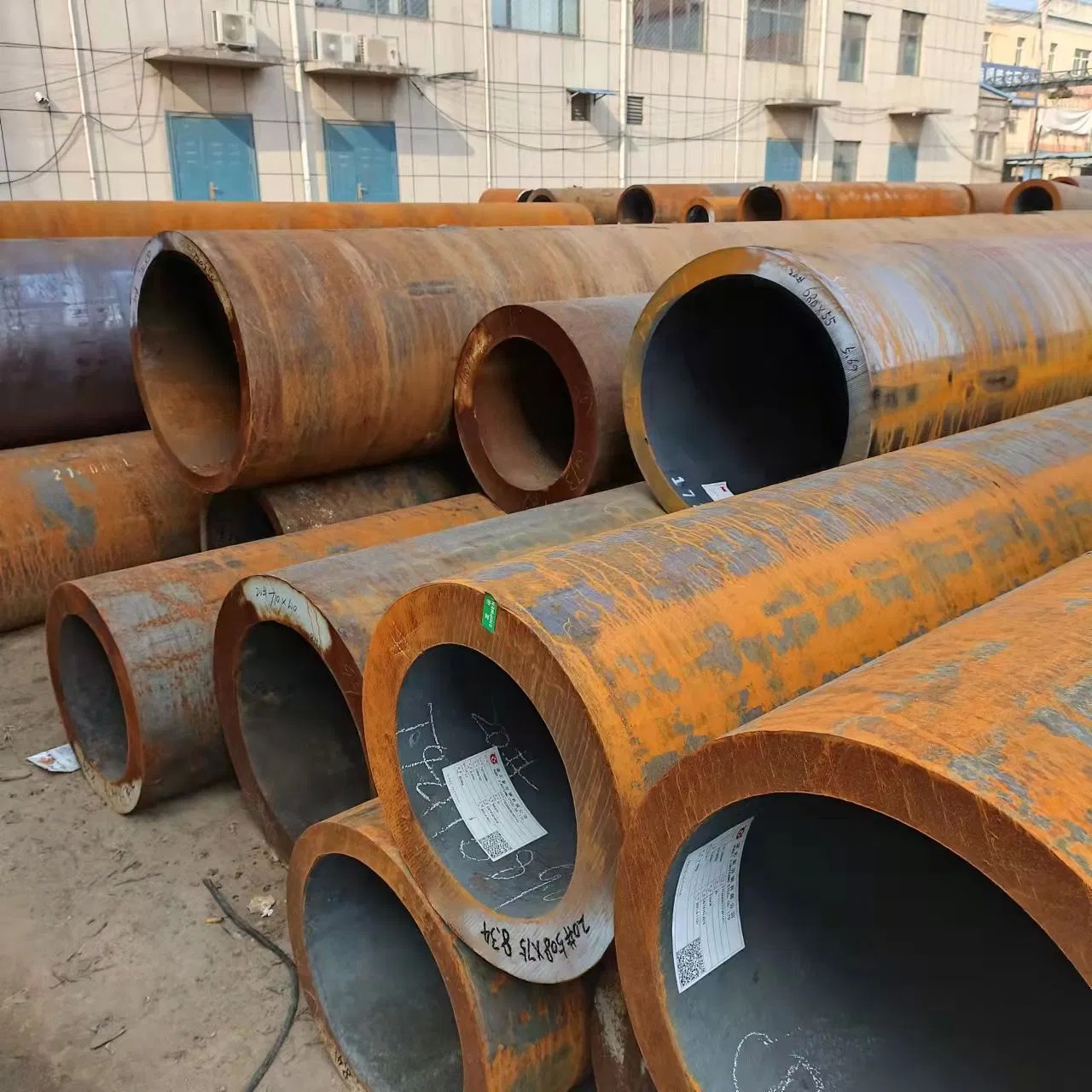

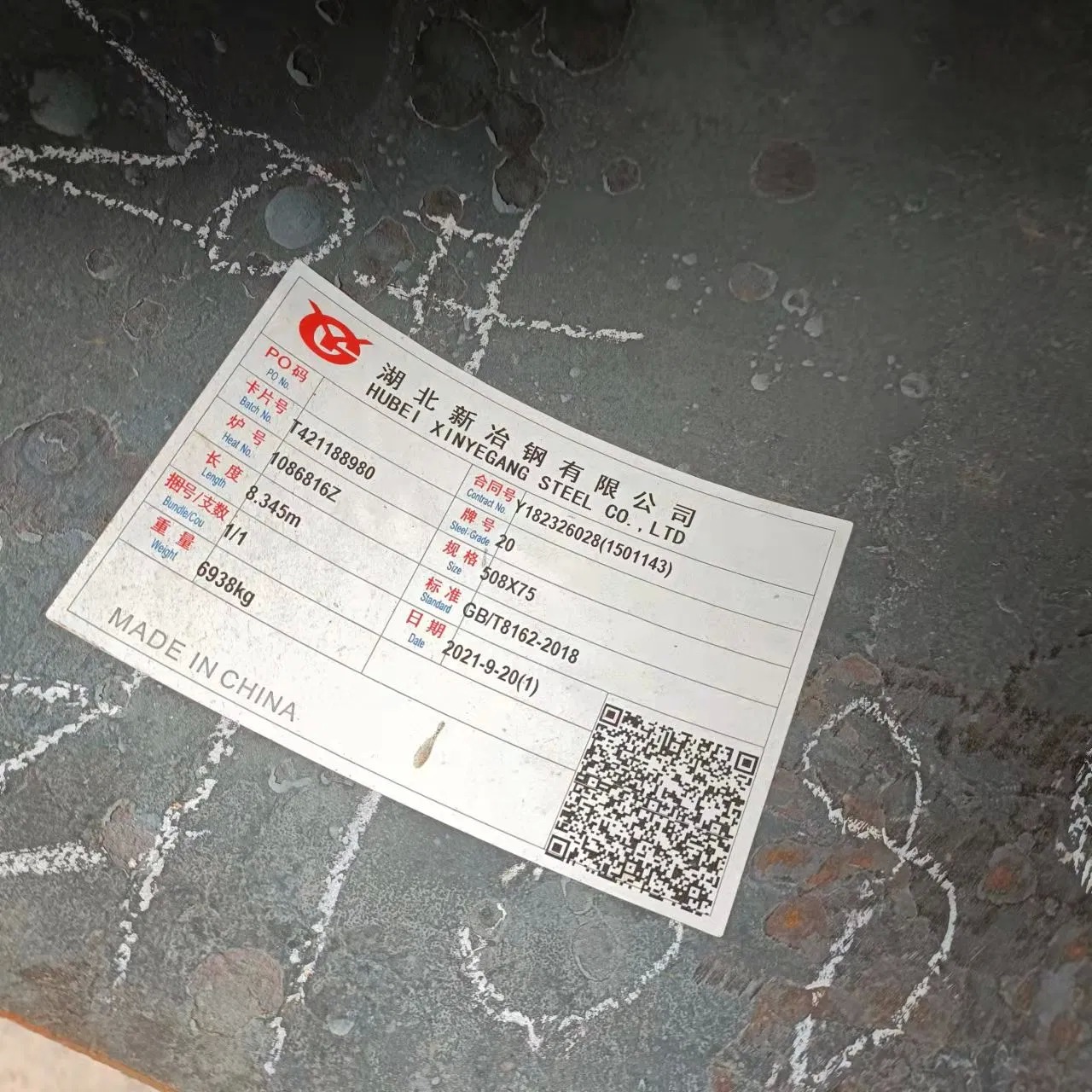

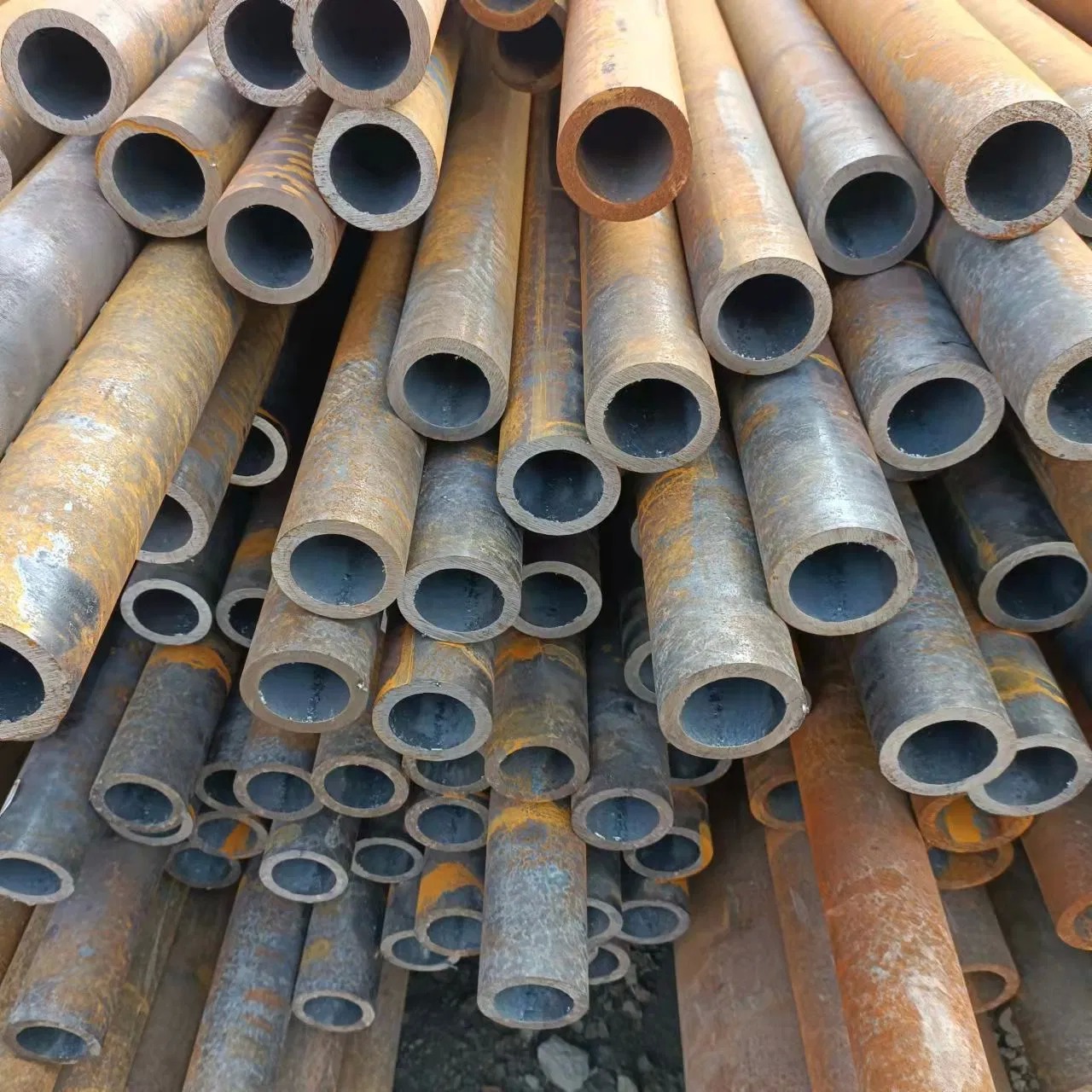

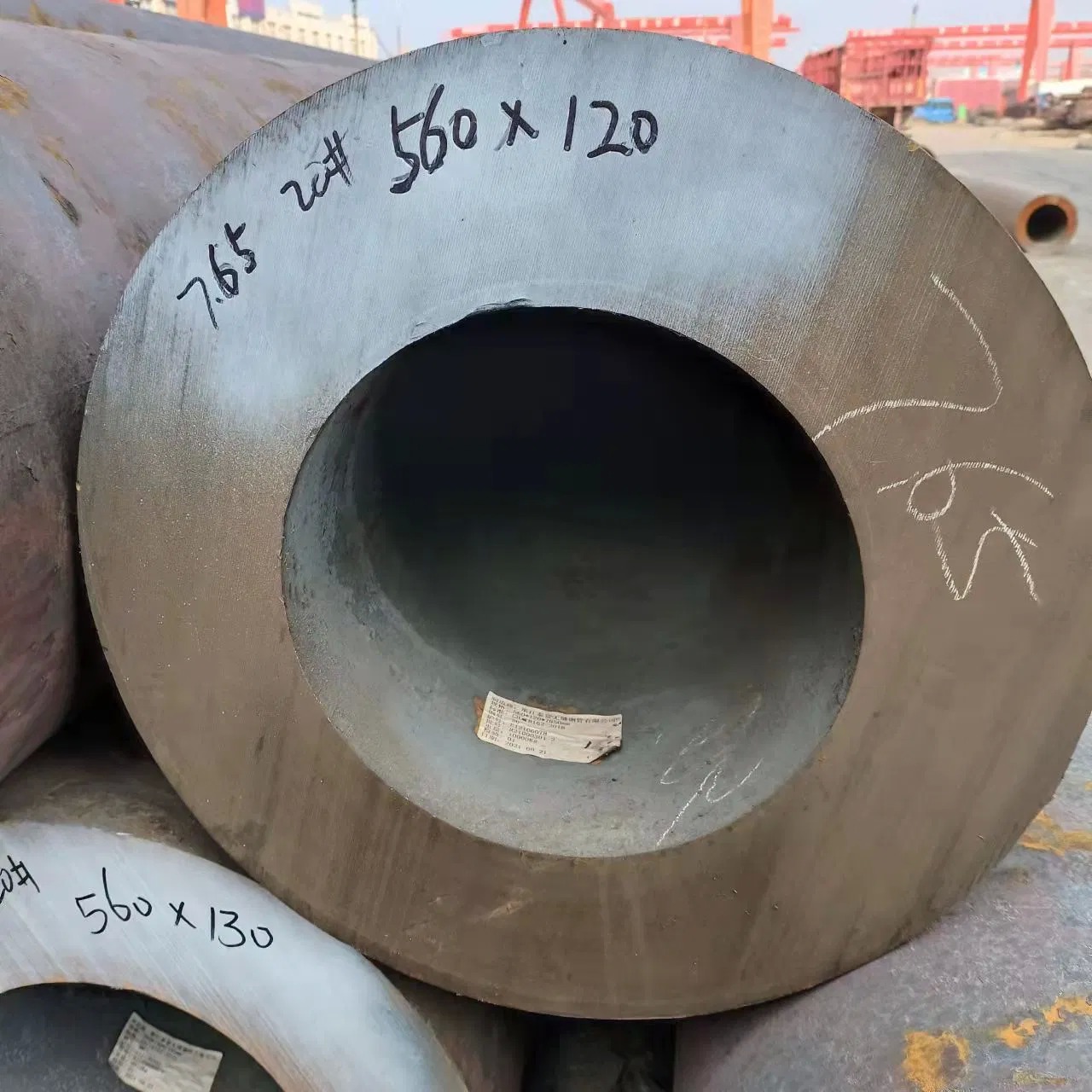

Product Images
Manufacturer Profile
Our company is a professional enterprise specializing in pipe fittings production, steel pipe sales, and export services. We primarily manufacture alloy steel pipes, alloy pipes, and alloy pipe fittings.
Established in 1992, our facility covers 100,000 square meters and employs 520 personnel, including 3 senior engineers, 12 engineers, and 150 technical professionals. Annual production capacity exceeds 20,000 tons of pipe fittings and 50,000 tons of pipe flux.
Certifications: ISO9001, ISO14001, OHSA18001, pressure pipe special equipment manufacturing license, measurement assurance certificate, and multiple industry network member certifications.
Production Capabilities: Equipped with 420 sets of advanced machinery including pushing machines, press machines, large heat treatment furnaces, beveling machines, sawing machines, three-way extruders, and comprehensive testing instruments.
Material Inventory: Maintains over 20,000 tons of special steel pipes including SA106B, 20g, Q345, 12Cr1MoVG, 15CrMoG, 1Cr5Mo, 1Cr9Mo, 10CrMo910, A335P5/P9/P11/P12/P22/P91/P92, WB36, and various austenitic stainless steels.
Market Reach: Products are exported to Southeast Asia, Central Asia, North Africa, South America, and serve domestic petroleum, chemical, power, metallurgy, city gas, heat pipe networks, and shipbuilding industries.
