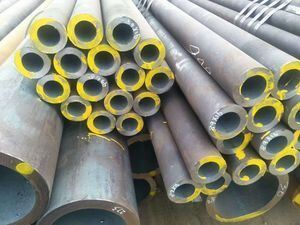

EN10210/EN10219 Standard S355J2 Seamless Steel Pipe with OD 6-630mm for Industrial Applications
Product Details
| Model NO. | S355j2 | Surface Treatment | Black |
|---|---|---|---|
| Section Shape | Round | OD | 6-630mm |
| Production Capacity | 50000kgs | Dimension Range | S:40-400mm R:50*30 500*300mm |
| OD Range | 20~3020mm | Steel Material | Q195, Q215, Q235, Q345 |
| Size Length | Below 16 Meter | Carbon Content | Max 0.22 |
| Silicon Content | Max 0.55 | Manganese Content | Max 1.6 |
| Yield Strength | 355 MPa (≤16mm) | Tensile Strength | 470-630 MPa (≤100mm) |
| Elongation | 22% (≤40mm) | ||
| Highlight | EN10210/EN10219 Standard Seamless Steel Pipe,S355J2 Steel Grade Seamless Tube,OD 6-630mm Seamless Carbon Steel Pipe |
||
Product Description
EN10210/EN10219 S355J2 Seamless Steel Tubes
Product Specifications
| Product Type | EN-10025-2 Grade S355J2 Square Tube Seamless Pipe |
|---|---|
| Dimension Range | S: 40-400mm, R: 50×30 to 500×300mm |
| Outer Diameter | 20~3020mm (Theoretical) |
| Standards | GB, BS, ASTM |
| Steel Material | Q195, Q215, Q235, Q345 |
| Size Length | Any Length Below 16 Meters |
| Surface Treatment | Bared, Black Painted, Galvanized, Oiled, 3PE, FBE, Corrosion Resistant Coating |
| Section Shape | Square and Rectangular |
| Package | Bundle, In Bulk, Bags, Custom Requirements |
International Grade Equivalents
| USA | Germany DIN/WNr | Japan JIS | France AFNOR | England BS | Italy UNI | European EN | Sweden SS | Czechia CSN |
|---|---|---|---|---|---|---|---|---|
| A656 | 1.0577, ASt52, St52-3N | SS490YA | A52FP | 224-460 | S355J2G4 | Fe510D2, S355J2G4 | 2134-01 | 11531 |
Chemical Composition
| C | Si | Mn | P | S | Cu | CEV |
|---|---|---|---|---|---|---|
| max 0.22 | max 0.55 | max 1.6 | max 0.03 | max 0.03 | max 0.55 | max 0.47 |
Mechanical Properties
| Steel Grade | Minimum Yield Strength Reh (MPa) | Tensile Strength Rm (MPa) | Minimum Elongation A (%) | Notch Impact Test | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ≤16mm | >16-40mm | >40-63mm | >63-80mm | >80-100mm | >100-125mm | >3-100mm | >100-125mm | >3-40mm | >40-63mm | >63-100mm | >100-125mm | Temperature (°C) | Min. Energy (J) | |
| S355J2 | 355 | 345 | 335 | 325 | 315 | 295 | 470-630 | 450-600 | 22 | 21 | 20 | 18 | -20 | 27 |
