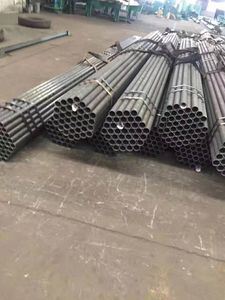

API 5L A53 A106 GrB Seamless Steel Pipe with 273mm X 12.7mm Round Tube for Pipeline Transport
Product Details
| Outer Diameter | 273mm | Wall Thickness | 12.7mm |
|---|---|---|---|
| Length | 12meter | Section Shape | Round |
| Material | Carbon Steel And Alloy Steel | Surface Treatment | Black, Oiled, Polished, Brightness, Metallic Color |
| Production Capacity | 50000kgs | OD Range | 6-630mm |
| Cold Drawn Tolerance | +/-0.1mm | Cold Rolled Tolerance | +/-0.05mm |
| Tensile Strength | ≥415 Mpa | Yield Strength | ≥245 Mpa |
| Carbon Content | ≤0.28 | Manganese Content | ≤1.20 |
| Chromium Content | ≤0.50 | ||
| Highlight | API 5L A53 A106 GrB Seamless Steel Pipe,273mm X 12.7mm Seamless Steel Pipe,Round Tube API 5L Pipe |
||
Product Description
API 5L A53 A106 GrB Seamless Steel Pipe
High-precision seamless steel pipe with dimensions 273mm x 12.7mm x 12 meters, manufactured as round tube for industrial applications.
Product Specifications
| Product Name | Seamless Steel Pipe |
| Material | Carbon Steel and Alloy Steel |
| Surface Treatment | Oiled, Polished, Brightness, Metallic Color |
| Standards | ASTM A106, A53, A192, A179, A210, A519, DIN17175, 1629, 2391, EN10216-1, 10216-2, 10305-1 |
| Grades | St35, St45, St52, E215, E235, E355, sch10, sch20, A106, A179, A192, A210, T11, T22, T12, AISI4130, SAE1010, SAE1020 |
| Manufacturing Process | Cold Rolled and Cold Drawn |
| Size Range | OD: 8mm-100mm, WT: 1-8mm |
| Length | Customized |
| Tolerance | Cold Drawn Pipe: +/-0.1mm, Cold Rolled Pipe: +/-0.05mm |
| Applications | Gas Spring, Shock Absorber, Cylinder and other High Precision Areas |
Seamless Pipe Applications
Seamless steel pipes are manufactured through hot rolled and cold drawn processes, with hot rolled pipes offering superior strength. Common applications include:
- Steam Pipeline Systems
- Gas Pipeline Networks
- Liquefied Gas Pipeline Infrastructure
- Natural Gas Transmission Lines
- Petroleum Product Pipelines
- Various Fluid and Gas Conveyance Systems
API 5L Technical Parameters
| Standard | Steel Grade | Chemical Components (%) | Mechanical Properties |
|---|---|---|---|
| API Spec 5L PSL1 | B | C≤0.28, Mn≤1.20, Cr≤0.50, Mo≤0.15, P≤0.030, S≤0.030, Ni≤0.50, Cu≤0.50 | Tensile: ≥415 Mpa, Yield: ≥245 Mpa |
| X42 | C≤0.28, Mn≤1.30, Cr≤0.50, Mo≤0.15, P≤0.030, S≤0.030, Ni≤0.50, Cu≤0.50 | Tensile: ≥415 Mpa, Yield: ≥290 Mpa | |
| X46 | C≤0.28, Mn≤1.40, Cr≤0.50, Mo≤0.15, P≤0.030, S≤0.030, Ni≤0.50, Cu≤0.50 | Tensile: ≥435 Mpa, Yield: ≥320 Mpa | |
| X52 | C≤0.28, Mn≤1.40, Cr≤0.50, Mo≤0.15, P≤0.030, S≤0.030, Ni≤0.50, Cu≤0.50 | Tensile: ≥460 Mpa, Yield: ≥360 Mpa | |
| X56 | C≤0.28, Mn≤1.40, Cr≤0.50, Mo≤0.15, P≤0.030, S≤0.030, Ni≤0.50, Cu≤0.50 | Tensile: ≥490 Mpa, Yield: ≥390 Mpa | |
| X60 | C≤0.28, Mn≤1.40, Cr≤0.50, Mo≤0.15, P≤0.030, S≤0.030, Ni≤0.50, Cu≤0.50 | Tensile: ≥520 Mpa, Yield: ≥415 Mpa | |
| X65 | C≤0.28, Mn≤1.40, Cr≤0.50, Mo≤0.15, P≤0.030, S≤0.030, Ni≤0.50, Cu≤0.50 | Tensile: ≥535 Mpa, Yield: ≥450 Mpa | |
| X70 | C≤0.28, Mn≤1.40, Cr≤0.50, Mo≤0.15, P≤0.030, S≤0.030, Ni≤0.50, Cu≤0.50 | Tensile: ≥570 Mpa, Yield: ≥485 Mpa |
