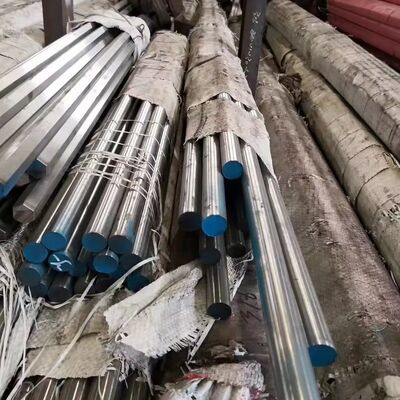

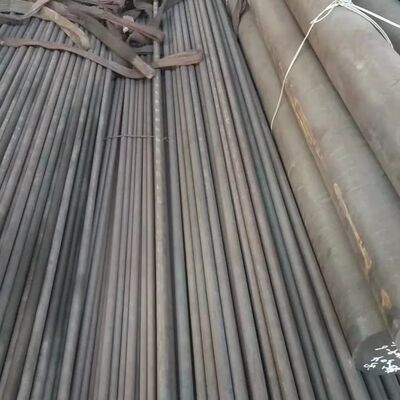

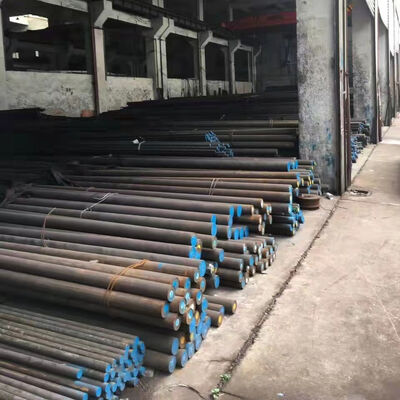

17-4PH Stainless Steel Bar SUS630 Round Bar Dia 6-30 mm Heat Treated H1150 Bright Surface

Certification	ISO, AISI, ASTM, EN, DIN, JIS
Minimum Order Quantity	50 kg
Price	US $3.13-3.62 / kg

Product Details

Material	17-4PH Stainless Steel	Shape	Round
Technique	Hot Rolled	Surface Treatment	Bright
Diameter Range	6-300mm	Length	6m
Tensile Strength	1105-1310 MPa	Yield Strength	724-1170 MPa
Elongation	10-16%	Hardness	28-44 HRC
Density	7750 Kg/m³	Thermal Conductivity	18.4 W/m.K
Electrical Resistivity	800 NΩ.m	Heat Treatment	H1150
Corrosion Resistance	Equivalent To 304L
Highlight	Dia 6-30 mm 17-4PH Stainless Steel Bar , Heat Treated H1150 SUS630 Round Bar , Bright Surface Precipitation Hardening Stainless Steel Bar

Leave a Message

Product Description

17-4PH Stainless Steel Round Bar

High-strength precipitation hardening stainless steel bars with diameters ranging from 6-30 mm, manufactured from SUS630 material and heat treated to H1150 condition for optimal mechanical properties.

Product Specifications

Product	17-4PH Stainless Steel Round Bar
Standard	ASTM, GB, DIN, EN
Diameter	8 - 450mm
Length	6m per piece or custom cutting available
Finishing	Black Bar / Bright Bar
Available Grades	201, 301, 303Cu, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 318, 321, 347, 410, 420, 430, 431, 440a/b/c, 904L, 2205, 2507, Hastelloy C276/C4/C22, Inconel 600/625, Incoloy 800/825/825H
Services	Cutting, surface polishing, heat treatment
Brand	Walsin, BAOSTEEL, TISCO, QINGSHAN

Material Description

17-4PH (Type 630) is a chromium-copper precipitation hardening stainless steel designed for applications requiring high strength and moderate corrosion resistance. This material maintains high strength up to approximately 600°F (316°C).

General Properties

Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with copper and niobium additions. It combines high strength, hardness (up to 572°F / 300°C), and corrosion resistance. Mechanical properties can be optimized through heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi).

Applications & Standards

Applications	Standards
Offshore industries Food processing equipment Pulp and paper industry Aerospace components Mechanical components Nuclear waste casks	ASTM A693 grade 630 (AMS 5604B) UNS S17400 EURONORM 1.4542 X5CrNiCuNb 16-4 AFNOR Z5 CNU 17-4PH DIN 1.4542

Chemical Composition

Element	Content (%)
C	0.07 max
Mn	1.0 max
Si	1.0 max
P	0.04 max
S	0.030 max
Cr	15.0 - 17.5
Ni	3.0 - 5.0
Cu	3.0 - 5.0
Nb+Ta	0.15 - 0.45

Mechanical Properties

Condition	Tensile Strength (MPa)	Yield Strength 0.2% Proof (MPa)	Elongation (% in 50mm)	Hardness Rockwell C (HRC)
Solution Treated	1105 (typical)	1000 (typical)	15 (typical)	38 max
Condition 900	1310 min	1170 min	10 min	40 min
Condition 1150	930 min	724 min	16 min	28 min

Physical Properties

Property	Value
Density	7750 kg/m³
Thermal Conductivity at 100°C	18.4 W/m·K
Thermal Conductivity at 500°C	22.7 W/m·K
Specific Heat (0-100°C)	460 J/kg·K
Electrical Resistivity	800 nΩ·m
Mean Coefficient of Thermal Expansion (0-100°C)	10.8 µm/m·°C
