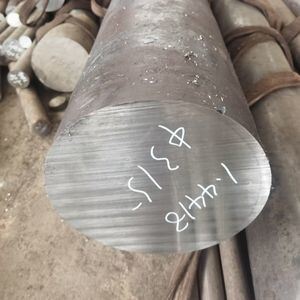

Hot Rolled 17-4PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm

Certificación	ISO, AISI, ASTM, EN, DIN, JIS
Cantidad de orden mínima	50 kg
Precio	US $3.33-3.82 / kg

Datos del producto

Número de modelo	17-4PH/630	Forma	Redondo
Técnica	laminado en caliente	Tratamiento superficial	Brillante
Rango de diámetro	8 - 450 mm	Longitud	6 m/unidad
Grados principales	201, 301, 303Cu, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 318, 321, 347, 410, 420, 430, 431, 440a/b	Resistencia a la tracción	1105 - 1310 MPa
Fuerza de producción	724 - 1170 MPa	Alargamiento	10 - 16%
Dureza	28 - 44 HRC	Densidad	7750 kg/m³
Conductividad térmica	18,4 - 22,7 W/mK	Resistividad eléctrica	800 nΩ.m
Temperatura del tratamiento térmico	482 - 621°C
Resaltar	Hot Rolled Stainless Steel Round Bar , Bright Surface 17-4PH Stainless Steel Bar , OD 6-300mm 630 Stainless Steel Bar

Deja un mensaje

Descripción de producto

Inox Stainless Rod 17-4 PH Stainless Steel Round Bar

High-quality 17-4PH precipitation hardening stainless steel round bars offering exceptional strength and corrosion resistance for demanding industrial applications.

Product Specifications

Product	17-4PH Stainless Steel Round Bar
Standard	ASTM GB DIN EN
Diameter	8 - 450mm
Length	6m /pcs or cutting as requested
Finishing	Black Bar / Bright Bar
Main Grades	201, 301, 303Cu, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 318, 321, 347, 410, 420, 430, 431, 440a/b/c, 904L, 2205, 2507, Hastelloy C276, C4, C22, Inconel 600, 625, Incoloy 800, 825, 825H, etc.
Service	Cutting, surface polishing, heat treatment
Brand	Walsin, BAOSTEEL, TISCO, QINGSHAN

Material Description

17-4PH (Type 630) is a chromium-copper precipitation hardening stainless steel designed for applications requiring high strength and moderate corrosion resistance. It maintains high strength up to approximately 600°F (316°C).

General Properties

Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with copper and niobium additions. It combines high strength, hardness (up to 572°F / 300°C), and corrosion resistance. Mechanical properties can be optimized through heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi).

Applications

Offshore industries (foils, helicopter deck platforms)
Food processing industry
Pulp and paper industry
Aerospace components (turbine blades)
Mechanical components
Nuclear waste casks

Standards

ASTM A693 grade 630 (AMS 5604B) UNS S17400, EURONORM 1.4542 X5CrNiCuNb 16-4, AFNOR Z5 CNU 17-4PH, DIN 1.4542

Chemical Composition

Element	Content (%)
C	≤ 0.07
Mn	≤ 1.00
Si	≤ 1.00
P	≤ 0.04
S	≤ 0.030
Cr	15.00 - 17.50
Ni	3.00 - 5.00
Cu	3.00 - 5.00
Nb+Ta	0.15 - 0.45

Mechanical Properties

Condition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HRC)
Solution Treated	1105 (typ)	1000 (typ)	15 (typ)	38 max
Condition 900	1310 min	1170 min	10 min	40 min
Condition 1150	930 min	724 min	16 min	28 min

Physical Properties

Property	Value
Density	7750 kg/m³
Thermal Expansion (0-100°C)	10.8 µm/m/°C
Thermal Conductivity (100°C)	18.4 W/m·K
Specific Heat	460 J/kg·K
Electrical Resistivity	800 nΩ·m

Heat Treatment

Solution treatment involves heating to 1040°C for 0.5 hours followed by air cooling. Age hardening at various temperatures achieves desired mechanical properties:
