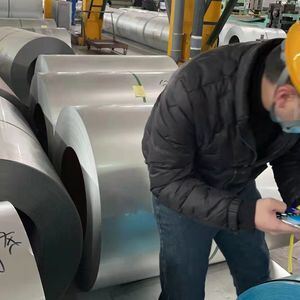

JIS G3312 DX51D AZ PPGL Prepainted Color Steel for Buildings and Vehicles
Product Details
| Thickness | 0.12 - 3.0mm (Galvanized), 0.25 - 3.0mm (Galvalume), 0.12 - 1.2mm (Prepainted) | Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm Or Custom |
|---|---|---|---|
| Length | Custom Length | Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm Or 610mm | Zinc Coating | Z30 - Z275 |
| Aluminum-Zinc Coating | AZ40 - AZ180 | Painting Type | PE, HDP, SMP, PVDF |
| Sheet Dimensions | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Coating Thickness | 20-25um/5-10um |
| Coating Layers | Above 2 Layer, Bottom 1 Layer | Pattern Thickness | 0.17 - 1.5mm |
| Alloy Composition | 55% Aluminum, 43% Zinc, 2% Silicon | Heat Resistance | >300°C |
| Edge Type | Slit Edge | ||
| Highlight | JIS G3312 Prepainted Color Steel,DX51D PPGL,AZ PPGL Prepainted Galvanized Steel Sheet |
||
Product Description
JIS G3312, CGCC, Dx51d Az PPGL for Buildings, Vehicles Prepainted Color Steel
High-quality prepainted color steel sheets manufactured to JIS G3312, CGCC, and DX51D AZ standards, specifically designed for building construction and vehicle manufacturing applications.
Product Specifications
Available Products
| Product Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|
Technical Specifications
| Thickness | Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
|---|---|
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface | Galvanized: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume: AZ40 - AZ180 Prepainted: Painting Types: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Products Center
Prepainted Galvanized Steel Coil (PPGI)
Color coated steel plate uses cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, it undergoes continuous coating via roller coating method, followed by baking and cooling processes.
Features lightweight construction, attractive appearance, and excellent anti-corrosion performance. Can be directly processed and serves as a superior raw material for construction industry, shipbuilding, vehicle manufacturing, home appliances, and electrical industries. Effectively replaces wood while enabling efficient construction, energy saving, and pollution prevention.
Galvanized Steel Coil
Galvanized sheet refers to zinc-coated steel plate surface. Galvanizing provides an economical and effective rust prevention method, with approximately half of global zinc production used for this purpose.
Surface Requirements:
- Surface states vary based on coating process treatments: regular spangle, small spangle, big spangles, etc.
- Must have good appearance without defects affecting product use: no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, white rust, etc.
Galvalume Steel Coil
Galvalume steel sheet consists of aluminum-zinc alloy structure composed of 55% aluminum, 43% zinc and 2% silicon solidified at 600°C. The structure forms dense tetrad junction crystal of aluminized iron, silicon and zinc.
- Excellent corrosion resistance - 3 times better than pure galvanized sheet
- Beautiful zinc flower surface decoration suitable for building exterior panels
- Aluminum provides primary protective corrosion resistance
- Superior heat resistance - withstands temperatures over 300°C
- Similar high-temperature oxidation resistance to aluminum plated steel plate
- Common applications: chimney tubes, ovens, illuminators, solar lampshades
Featured Products
| Products | Pattern Print Prepainted Steel Sheet |
|---|---|
| Introduction | Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Bright colors, wide variety including marble grain, camouflage, wood grain printing color board |
| Size | Thickness: 0.17 - 1.5mm, Width: less than 1.5mm |
| Color and Pattern | Customized as per client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um/5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510mm/610mm |
| Application | Widely used in household appliances, furniture, doors and windows, indoor and outdoor decoration |
Trade Information
| Minimum Order Quantity | 5 Tons |
|---|---|
| Payment Terms | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Information
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi City. We offer comprehensive solutions including color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.
Strategic Partnerships
We maintain excellent cooperative relationships with several major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin Zongcheng Steel.
Application Fields
Our products are widely used in steel structure building, metal building materials, steel silo, ventilation pipes, mechanical and electrical housing, home appliance plate, elevator, purification plate, automotive stamping parts and related fields.
Expertise and Service
Our employees average over 8 years of industry experience, enabling us to provide customized supply solutions and improve supply chain efficiency. We have participated in material supply and technical services for numerous medium and large engineering projects domestically and internationally.
We adhere to the value concept of "not for a long time, not to be able to recover" and are committed to providing perfect demand solutions. Our company aims to become China's premier high-end coating and plating steel products service provider, working hand-in-hand with domestic and international customers to create excellence.
