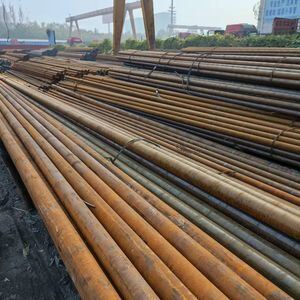

ASTM A335 Alloy Steel Pipe P11 P22 P91 Chrome Moly Tube for Power Plants
Product Details
| Outer Diameter | 6-630mm | Wall Thickness | 1-120mm |
|---|---|---|---|
| Section Shape | Round | Surface Treatment | Black |
| Length | 6m,5.8m,11.8m,12m | Tensile Strength | 415-735 MPa |
| Yield Strength | 205-440 MPa | Elongation | 18-30% |
| Hardness | ≤250HB | Carbon Content | 0.05-0.20% |
| Manganese Content | 0.30-0.61% | Chromium Content | 0.50-9.50% |
| Molybdenum Content | 0.44-1.50% | Heat Treatment | 1200°F-1375°F |
| Temperature Tolerance | ±10ºC | ||
| Highlight | ASTM A335 Alloy Steel Pipe,P11 P22 P91 Chrome Moly Tube,Power Plants Seamless Steel Pipe |
||
Product Description
ASTM A335 Alloy Round Section Steel Pipe P11 P22 P91 for Power Plants Chrome Moly Tube
High-performance alloy steel seamless pipes specifically designed for power plant applications, featuring chrome molybdenum composition for superior high-temperature performance.
Product Specifications
| Item | Cold Rolled / Cold Drawn alloy steel seamless pipe |
|---|---|
| Standards | JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTMA335/A335m, ASTMA213/A213m, DIN 17175 |
| Model Numbers | 12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo |
Product Description
| Surface | Black painted, PE coated, galvanized |
|---|---|
| Length | 6m, 5.8m, 11.8m, 12m, or as required |
| Wall Thickness | 1-120mm |
| Outer Diameter | 6-1200mm |
Trade Terms
| Payment Terms | T/T, L/C, Western Union |
|---|---|
| Price Terms | FOB, CIF, CFR, Ex-work, CNF |
Chemical Composition (%)
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
|---|---|---|---|---|---|---|---|---|
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Properties
| Standard | Steel Grade | Tensile (MPa) | Yield (MPa) | Elongate (%) | Hardness |
|---|---|---|---|---|---|
| 20MnG | 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 15CrMoG | 440~640 | ≥235 | ≥21 | |
| 12Cr2MoG | 12Cr2MoG | 450~600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 12Cr1MoVG | 470~640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 12Cr2MoWVTiB | 540~735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| ASME SA210 | SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| ASME SA213 | SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| ASME SA213 | SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| DIN17175 | ST45.8/ | 410~530 | ≥255 | ≥21 | / |
| DIN17175 | 15Mo3 | 450~600 | ≥270 | ≥22 | |
| DIN17175 | 13CrMo44 | 440~590 | ≥290 | ≥22 | |
| DIN17175 | 10CrMo910 | 480~630 | ≥280 | ≥20 |
Heat Treatment Assurance
Our facility features a full-automatic natural gas furnace measuring 24 meters in length, capable of maintaining temperature tolerance within 10ºC for precise heat treatment control.
Important Note: It is recommended that the tempering temperature should be at least 100°F [50°C] above the intended service temperature. Please advise if service temperature exceeds 1100°F [600°C].
Quality Assurance
- Each lot of raw materials undergoes spectrometer testing before storage
- 100% PMI (Positive Material Identification) of mother pipe to ensure correct material
- 100% PMI of finished pipe to verify correct grade production
Permitted OD Tolerance
| OD (mm) | Plus Tolerance (+) | Minus Tolerance (-) |
|---|---|---|
| 10.29-48.3 | 0.4 | 0.4 |
| <48.3--≤114.3 | 0.79 | 0.79 |
| <114.3-≤219.1 | 1.59 | 0.79 |
| <219.1-≤323.9 | 2.38 | 0.79 |
| <323.9 | ±1% | |
Applications
These high-pressure, low & medium pressure boiler steel pipes/tubes are specifically designed for power plant applications including super-heaters, re-heaters, water walls, and economizers in large-scale power generation facilities.
Product Images
Company Information
We are a comprehensive enterprise specializing in pipe fittings production, steel pipe sales, and export services. Our core products include alloy steel pipes, alloy pipes, and alloy pipe fittings.
Manufacturing Capabilities
Established in 1992, our 100,000 square meter facility employs 520 professionals including 3 senior engineers, 12 engineers, and 150 technical staff. Annual production exceeds 20,000 tons of pipe fittings and 50,000 tons of pipe flux.
Certifications & Quality Standards
- ISO9001 International Quality Management System Certification
- ISO14001 Environmental Management System Certification
- OHSA18001 Occupational Health and Safety Management System Certification
- Pressure Pipe Special Equipment Manufacturing License
- Measurement Assurance Ability Certificate
Production Equipment
Our facility is equipped with 420 sets of advanced machinery including pushing machines, press machines, large heat treatment furnaces, beveling machines, sawing machines, three-way extruders, splint hammers, large sand blasting machines, and comprehensive testing instruments.
Material Inventory & Supply Chain
We maintain over 20,000 tons of special steel pipes year-round, serving as special dealer for major steel mills including Tianjin Big Seamless Steel Tube, Shanghai Baosteel, Chengdu Steel Vanadium, Yangzhou Chengde, Valing Henggang, and Baotou Steel.
Global Reach
Our products are exported worldwide to Southeast Asia, Central Asia, North Africa, South America, and other regions, serving industries including petroleum, chemical, electric power, metallurgy, city gas, heat pipe networks, and shipbuilding.
