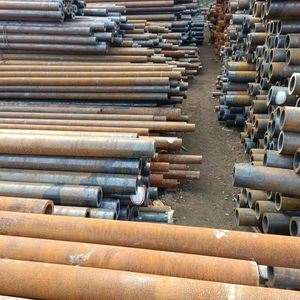

AISI 4130 Alloy Steel Seamless Steel Pipe with Black Surface Treatment and OD 6-630mm
Product Details
| Outer Diameter | 6-1200mm | Wall Thickness | 1-120mm |
|---|---|---|---|
| Length | 6m,5.8m,11.8m,12m, Or As Required | Section Shape | Round |
| Surface Treatment | Black Painted, PE Coated, Galvanized | Tensile Strength | 415-735 MPa |
| Yield Strength | 205-440 MPa | Elongation | 18-30% |
| Hardness | ≤250HB | Carbon Content | 0.05-0.20% |
| Manganese Content | 0.30-0.61% | Phosphorus Content | ≤0.025% |
| Sulfur Content | ≤0.025% | Silicon Content | 0.10-2.00% |
| Chromium Content | 0.50-10.00% | ||
| Highlight | AISI 4130 Alloy Steel Seamless Steel Pipe,OD 6-630mm Seamless Steel Pipe,Black Surface Treatment Seamless Steel Pipe |
||
Product Description
Alloy Seamless Steel Pipe / AISI 4130 Alloy Steel / Seamless Steel Tube
High-quality alloy seamless steel pipes and tubes manufactured to meet rigorous industrial standards for demanding applications.
Product Specifications
| Item | Cold Rolled / Cold Drawn alloy steel seamless pipe |
|---|---|
| Standard | JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTMA335/A335m, ASTMA213/A213m, DIN 17175 |
| Model No. | 12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo |
Product Description
| Surface | black painted, PE coated, galvanized |
|---|---|
| Length | 6m, 5.8m, 11.8m, 12m, or as required |
| Wall Thickness | 1-120mm |
| Outer Diameter | 6-1200mm |
Trade Terms
| Payment Terms | T/T, L/C, Western Union |
|---|---|
| Price Terms | FOB, CIF, CFR, Ex-work, CNF |
Chemical Composition (%)
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
|---|---|---|---|---|---|---|---|---|
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Properties
| Standard | Steel Grade | Tensile (MPa) | Yield (MPa) | Elongate (%) | Hardness |
|---|---|---|---|---|---|
| 20MnG | 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 15CrMoG | 440~640 | ≥235 | ≥21 | |
| 12Cr2MoG | 12Cr2MoG | 450~600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 12Cr1MoVG | 470~640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 12Cr2MoWVTiB | 540~735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| ASME SA210 | SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| ASME SA213 | SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| ASME SA213 | SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| DIN17175 | ST45.8/ | 410~530 | ≥255 | ≥21 | / |
| DIN17175 | 15Mo3 | 450~600 | ≥270 | ≥22 | |
| DIN17175 | 13CrMo44 | 440~590 | ≥290 | ≥22 | |
| DIN17175 | 10CrMo910 | 480~630 | ≥280 | ≥20 |
Heat Treatment Assurance
Our facility features a full-automatic natural gas furnace measuring 24 meters in length, capable of maintaining temperature tolerance within 10ºC for precise heat treatment control.
Important Note: It is recommended that the tempering temperature should be at least 100°F [50°C] above the intended service temperature. Please advise if service temperature exceeds 1100°F [600°C]. Pipes of Grades P1, P2, and P12 may receive final heat treatment at 1200°F [650°C] to 1300°F [705°C]. All Grade P5c pipes receive final heat treatment between 1325°F [715°C] to 1375°F [745°C].
Quality Assurance
- Each lot of raw materials undergoes spectrometer testing before storage
- 100% PMI (Positive Material Identification) of mother pipe to ensure correct material
- 100% PMI of finished pipe to verify correct grade production
Permitted OD Tolerance
| OD (mm) | Plus Tolerance (+) | Minus Tolerance (-) |
|---|---|---|
| 10.29-48.3 | 0.4 | 0.4 |
| <48.3--≤114.3 | 0.79 | 0.79 |
| <114.3-≤219.1 | 1.59 | 0.79 |
| <219.1-≤323.9 | 2.38 | 0.79 |
| <323.9 | ±1% |
Applications
High pressure, low & medium pressure boiler steel pipes and tubes are ideal for manufacturing super-heaters, re-heaters, water walls, and economizers in large-scale power plants.
Product Gallery
Company Information
We are a comprehensive enterprise specializing in pipe fittings production, steel pipe sales, and export services. Our core products include alloy steel pipes, alloy pipes, and alloy pipe fittings.
Established: 1992
Facility Area: 100,000 square meters
Employees: 520 personnel including 3 senior engineers, 12 engineers, and 150 technical professionals
Annual Production: Over 20,000 tons of pipe fittings and 50,000 tons of pipe flux
Certifications & Quality Standards
ISO9001, ISO14001, OHSA18001, Pressure Pipe Special Equipment Manufacturing License, Measurement Assurance Certificate, and multiple industry network member certifications including China Power Network and China Petrochemical Materials Supply Network.
Production Capabilities
Our facility features 420 sets of advanced equipment including pushing machines, press machines, large heat treatment furnaces, beveling machines, sawing machines, three-way extruders, and comprehensive testing instruments. We maintain over 20,000 tons of special steel pipes in inventory year-round.
Material Expertise
We work with materials including SA106B, 20g, Q345, 12Cr1MoVG, 15CrMoG, 1Cr5Mo, 1Cr9Mo, 10CrMo910, A335P5/P9/P11/P12/P22/P91/P92, WB36, and various austenitic stainless steels.
Market Presence
Our products serve petroleum, chemical, power generation, metallurgy, city gas, heat pipe networks, shipbuilding, and other industrial pipeline applications. We export to Southeast Asia, Central Asia, North Africa, South America, and other global regions.
