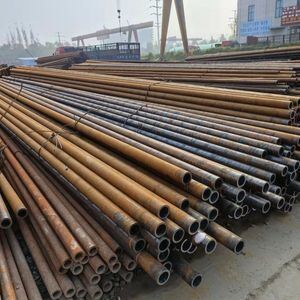

Round Type Alloy Steel Seamless Pipe 40mm-360mm Dimensions for Annealing and Quenching
Product Details
| Outer Diameter | 6-1200mm | Wall Thickness | 1-120mm |
|---|---|---|---|
| Length | 6m,5.8m,11.8m,12m, Or As Required | Surface Treatment | Black Painted,PE Coated,galvanized |
| Tensile Strength | 415-735MPa | Yield Strength | 205-440MPa |
| Elongation | 18-30% | Hardness | ≤250HB |
| Carbon Content | 0.05-0.20% | Manganese Content | 0.30-0.61% |
| Chromium Content | 0.50-10.00% | Molybdenum Content | 0.44-1.50% |
| Heat Treatment Temp | 1200°F-1375°F | OD Tolerance | ±1% |
| Production Capacity | 50000kgs | ||
| Highlight | 40mm-360mm Dimensions Alloy Steel Seamless Pipe,Annealing Quenching Seamless Steel Pipe,Round Type Boiler Steel Pipe |
||
Product Description
Round Type Alloy Steel Seamless Pipes 40mm-360mm Dimensions for Annealing / Quenching
High-quality cold rolled/cold drawn alloy steel seamless pipes designed for annealing and quenching applications, available in diameters from 40mm to 360mm.
Product Specifications
Item: Cold Rolled / Cold Drawn alloy steel seamless pipe
Standards: JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTMA335/A335m, ASTMA213/A213m, DIN 17175
Model Numbers: 12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo
Product Description
| Surface | Black painted, PE coated, galvanized |
| Length | 6m, 5.8m, 11.8m, 12m, or as required |
| Wall Thickness | 1-120mm |
| Outer Diameter | 6-1200mm |
Trade Terms
| Payment Terms | T/T, L/C, Western Union |
| Price Terms | FOB, CIF, CFR, Ex-work, CNF |
Chemical Composition (%)
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
|---|---|---|---|---|---|---|---|---|
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Properties
| Standard | Steel Grade | Tensile (MPa) | Yield (MPa) | Elongate (%) | Hardness |
|---|---|---|---|---|---|
| 20MnG | 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 15CrMoG | 440~640 | ≥235 | ≥21 | |
| 12Cr2MoG | 12Cr2MoG | 450~600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 12Cr1MoVG | 470~640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 12Cr2MoWVTiB | 540~735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| ASME SA210 | SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| ASME SA213 | SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| ASME SA213 | SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| DIN17175 | ST45.8/ | 410~530 | ≥255 | ≥21 | / |
| DIN17175 | 15Mo3 | 450~600 | ≥270 | ≥22 | |
| DIN17175 | 13CrMo44 | 440~590 | ≥290 | ≥22 | |
| DIN17175 | 10CrMo910 | 480~630 | ≥280 | ≥20 |
Heat Treatment Assurance
Our facility features a full-automatic natural gas furnace with 24 meters in length, maintaining real temperature tolerance within 10ºC for precise heat treatment control.
Important Note: It is recommended that the tempering temperature should be at least 100°F [50°C] above the intended service temperature. Please advise if service temperature exceeds 1100°F [600°C].
Pipes of Grades P1, P2, and P12 may receive final heat treatment at 1200°F[650°C] to 1300°F [705°C]. All Grade P5c pipes receive final heat treatment in the range from 1325°F [715°C] to 1375°F[745°C].
Quality Assurance
- Each lot of raw materials tested by spectrometer before storage
- 100% PMI (Positive Material Identification) of mother pipe to ensure correct material
- 100% PMI of finished pipe to verify correct grade production
Permitted OD Tolerance
| OD (mm) | Plus Tolerance (+) | Minus Tolerance (-) |
|---|---|---|
| 10.29-48.3 | 0.4 | 0.4 |
| <48.3--≤114.3 | 0.79 | 0.79 |
| <114.3-≤219.1 | 1.59 | 0.79 |
| <219.1-≤323.9 | 2.38 | 0.79 |
| <323.9 | ±1% | ±1% |
Applications
High pressure, low & medium pressure boiler steel pipes/tubes are suitable for manufacturing super-heaters, re-heaters, water walls, and economizers in large-scale power plants.
Product Images
Company Information
Our company is a professional enterprise specializing in pipe fittings production, steel pipe sales, and export services. We primarily manufacture alloy steel pipes, alloy pipes, and alloy pipe fittings.
Established in 1992, our factory covers 100,000 square meters and employs 520 staff members, including 3 senior engineers, 12 engineers, and 150 professional technical personnel. Our annual production capacity exceeds 20,000 tons of pipe fittings and 50,000 tons of pipe flux.
Certifications & Quality Standards
- ISO9001 International Quality Management System Certification
- ISO14001 Environmental Management System Certification
- OHSA18001 Occupational Health and Safety Management System Certification
- Pressure Pipe Special Equipment Manufacturing License
- Measurement Assurance Ability Certificate
- China Power Network Members Accessories Factory Certification
- China Petrochemical Materials Supply Network Member Certification
Production Capabilities
We maintain advanced production equipment and comprehensive testing facilities with strong technical capabilities. Our product range includes steel pipe fittings (elbows, tees, four-ways, reducing pipes, heads, flanges, support hangers, bearing plugs) and related series products.
Our facility is equipped with 420 sets of key equipment including pushing machines, press machines, large heat treatment furnaces, beveling machines, sawing machines, three-way extruders, splint hammers, large sand blasting machines, and various testing instruments.
We maintain over 20,000 tons of special steel pipes year-round, sourcing materials from major steel producers including Tianjin Big Seamless Steel Tube, Shanghai Baosteel, Chengdu Steel Vanadium, Yangzhou Chengde, Valing Henggang, and Baotou Steel.
Market Reach
Our products are widely used in petroleum, chemical, electric power, metallurgy, city gas, heat pipe networks, shipbuilding, and other pipeline engineering industries. We export to Southeast Asia, Central Asia, North Africa, South America, and many other regions worldwide.
We adhere to the business philosophy of high-quality branding, market leadership, and honest customer relationships to create a better future through sincere cooperation.
