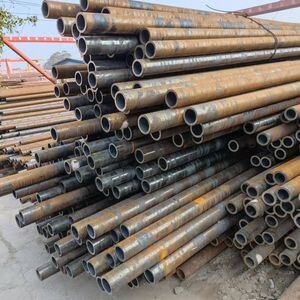

Cold Finished High Temperature Resistant Corrosion Resistant Seamless Boiler Tubes and Steel Pipes
Product Details
| Outer Diameter | 6-1200mm | Wall Thickness | 1-120mm |
|---|---|---|---|
| Length | 6m,5.8m,11.8m,12m | Surface Treatment | Black Painted, PE Coated, Galvanized |
| Section Shape | Round | Tensile Strength | 415-735 MPa |
| Yield Strength | 205-440 MPa | Elongation | 18-30% |
| Hardness | ≤250HB | Carbon Content | 0.05-0.20% |
| Manganese Content | 0.30-0.61% | Chromium Content | 0.50-10.00% |
| Molybdenum Content | 0.44-1.50% | Vanadium Content | 0.15-0.25% |
| Heat Treatment | 1200°F-1375°F | ||
| Highlight | Cold Finished Seamless Boiler Tubes,High Temperature Resistant Seamless Steel Pipe,Corrosion Resistant Alloy Steel Seamless Tubes |
||
Product Description
34Mn2V 34CrMo4 Cold Finished Steel Seamless Boiler Tubes / Pipe
High-quality cold finished alloy steel seamless pipes and tubes with TUV BV BKW NBK GBK certifications, designed for demanding boiler applications.
Product Specifications
| Item | Cold Rolled / Cold Drawn alloy steel seamless pipe |
|---|---|
| Standards | JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTMA335/A335m, ASTMA213/A213m, DIN 17175 |
| Model Numbers | 12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo |
| Surface Treatment | Black painted, PE coated, galvanized |
| Length | 6m, 5.8m, 11.8m, 12m, or as required |
| Wall Thickness | 1-120mm |
| Outer Diameter | 6-1200mm |
Trade Terms
| Payment Terms | T/T, L/C, Western Union |
|---|---|
| Price Terms | FOB, CIF, CFR, Ex-work, CNF |
Chemical Composition (%)
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
|---|---|---|---|---|---|---|---|---|
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Properties
| Standard | Steel Grade | Tensile (MPa) | Yield (MPa) | Elongation (%) | Hardness |
|---|---|---|---|---|---|
| 20MnG | 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 15CrMoG | 440~640 | ≥235 | ≥21 | |
| 12Cr2MoG | 12Cr2MoG | 450~600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 12Cr1MoVG | 470~640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 12Cr2MoWVTiB | 540~735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| ASME SA210 | SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| ASME SA213 | SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| ASME SA213 | SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| DIN17175 | ST45.8/ | 410~530 | ≥255 | ≥21 | / |
| DIN17175 | 15Mo3 | 450~600 | ≥270 | ≥22 | |
| DIN17175 | 13CrMo44 | 440~590 | ≥290 | ≥22 | |
| DIN17175 | 10CrMo910 | 480~630 | ≥280 | ≥20 |
Heat Treatment Assurance
Our full-automatic natural gas furnace (24 meters in length) maintains precise temperature control with real temperature tolerance within 10ºC.
Important Note: It is recommended that the tempering temperature should be at least 100°F [50°C] above the intended service temperature. Please advise if service temperature exceeds 1100°F [600°C].
Pipe of Grades P1, P2, and P12 (hot finished or cold drawn) may receive final heat treatment at 1200°F[650°C] to 1300°F [705°C]. All Grade P5c pipes receive final heat treatment in the range from 1325°F [715°C] to 1375°F[745°C].
Quality Assurance Process
- Each lot of raw materials tested by spectrometer before storage
- 100% PMI (Positive Material Identification) of mother pipe to ensure correct material
- 100% PMI of finished pipe to verify correct grade production
Permitted OD Tolerance
| OD Range (mm) | Plus Tolerance (+) | Minus Tolerance (-) |
|---|---|---|
| 10.29-48.3 | 0.4 | 0.4 |
| <48.3--≤114.3 | 0.79 | 0.79 |
| <114.3-≤219.1 | 1.59 | 0.79 |
| <219.1-≤323.9 | 2.38 | 0.79 |
| <323.9 | ±1% | |
Applications
High pressure, low & medium pressure boiler steel pipes/tubes are suitable for manufacturing super-heaters, re-heaters, water walls, and economizers in large-scale power plants.
Product Images
Company Information
Our company is a professional enterprise specializing in pipe fittings production, steel pipe sales, and export services. We primarily manufacture alloy steel pipes, alloy pipes, and alloy pipe fittings.
Established: 1992
Factory Area: 100,000 square meters
Employees: 520 (including 3 senior engineers, 12 engineers, and 150 professional technicians)
Annual Production: Over 20,000 tons of pipe fittings and 50,000 tons of pipe flux
Certifications & Quality Standards
- ISO9001 International Quality Management System Certification
- ISO14001 Environmental Management System Certification
- OHSA18001 Occupational Health and Safety Management System Certification
- Pressure Pipe Special Equipment Manufacturing License
- Measurement Assurance Ability Certificate
- Hebei Province China Datang Group Network Members Factory Certificate
- Chemical Equipment Sentinel Production Enterprises Certificate
- China Power Network Members Accessories Factory Certification
- China Petrochemical Materials Supply Network Member Certification
Production Capabilities
We maintain advanced production equipment, comprehensive testing facilities, and strong technical expertise. Our product range includes steel pipe fittings (elbows, tees, four-ways, reducing pipes, heads, flanges, support hangers, bearing plugs) and we operate 420 sets of key equipment including pushing machines, press machines, large heat treatment furnaces, beveling machines, sawing machines, three-way extruders, splint hammers, large sand blasting machines, and various testing instruments.
We maintain over 20,000 tons of special steel pipes year-round with materials including SA106B, 20G, Q345, 12Cr1MoVG, 15CrMoG, 1Cr5Mo, 1Cr9Mo, 10CrMo910, A335P5/P9/P11/P12/P22/P91/P92, WB36, and various austenitic stainless steels.
Our products serve major industries including petroleum, chemical, power generation, metallurgy, city gas, heat pipe networks, and shipbuilding.
Global Reach
Our products are exported to Southeast Asia, Central Asia, North Africa, South America, and many other regions worldwide. We are committed to high-quality products, excellent service, and building strong customer relationships for mutual success.
