EN10216-3 620QH Carbon Steel Seamless Tube with Fine Grain and OD 6-630mm for High-Temperature Applications
Product Details
| Surface Treatment | Black | Section Shape | Round |
|---|---|---|---|
| Outer Diameter | 6-630mm | Wall Thickness | 1-120mm |
| Length | 6m,5.8m,11.8m,12m, Or As Required | Tensile Strength | ≥415-735MPa |
| Yield Strength | ≥205-440MPa | Elongation | ≥18-30% |
| Hardness | ≤143-250HB | Carbon Content | 0.05-0.20% |
| Manganese Content | 0.30-0.61% | Chromium Content | 0.50-9.50% |
| Molybdenum Content | 0.44-1.50% | Heat Treatment | 1200°F-1375°F |
| OD Tolerance | ±0.4mm-±1% | ||
| Highlight | EN10216-3 620QH Seamless Steel Pipe,Fine Grain Seamless Alloy Pipe,OD 6-630mm Carbon Steel Seamless Tube |
||
Product Description
EN10216-3 620QH Carbon Steel Seamless Tube
High-quality seamless alloy pipe with fine grain structure designed for demanding industrial applications.
Product Specifications
| Item | Cold Rolled / Cold Drawn alloy steel seamless pipe |
| Standard | JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTMA335/A335m, ASTMA213/A213m, DIN 17175 |
| Model No. | 12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo |
| Surface | Black painted, PE coated, galvanized |
| Length | 6m, 5.8m, 11.8m, 12m, or as required |
| Wall Thickness | 1-120mm |
| Outer Diameter | 6-1200mm |
Trade Terms
| Payment Terms | T/T, L/C, Western Union |
| Price Terms | FOB, CIF, CFR, Ex-work, CNF |
Chemical Composition (%)
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
|---|---|---|---|---|---|---|---|---|
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Properties
| Standard | Steel Grade | Tensile (MPa) | Yield (MPa) | Elongate (%) | Hardness |
|---|---|---|---|---|---|
| 20MnG | 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 15CrMoG | 440~640 | ≥235 | ≥21 | |
| 12Cr2MoG | 12Cr2MoG | 450~600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 12Cr1MoVG | 470~640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 12Cr2MoWVTiB | 540~735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| ASME SA210 | SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| ASME SA213 | SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| ASME SA213 | SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| DIN17175 | ST45.8/ | 410~530 | ≥255 | ≥21 | / |
| DIN17175 | 15Mo3 | 450~600 | ≥270 | ≥22 | |
| DIN17175 | 13CrMo44 | 440~590 | ≥290 | ≥22 | |
| DIN17175 | 10CrMo910 | 480~630 | ≥280 | ≥20 |
Heat Treatment Assurance
Our facility features a fully-automatic natural gas furnace measuring 24 meters in length, ensuring precise temperature control with real temperature tolerance within 10ºC.
Important Note: It is recommended that tempering temperature should be at least 100°F [50°C] above the intended service temperature. Please advise if service temperature exceeds 1100°F [600°C].
Quality Assurance
- Each lot of raw materials undergoes spectrometer testing before storage
- 100% PMI (Positive Material Identification) of mother pipe to ensure correct material
- 100% PMI of finished pipe to verify correct grade production
Permitted OD Tolerance
| OD (mm) | Plus Tolerance (+) | Minus Tolerance (-) |
|---|---|---|
| 10.29-48.3 | 0.4 | 0.4 |
| <48.3--≤114.3 | 0.79 | 0.79 |
| <114.3-≤219.1 | 1.59 | 0.79 |
| <219.1-≤323.9 | 2.38 | 0.79 |
| <323.9 | ±1% | ±1% |
Applications
High pressure, low & medium pressure boiler steel pipes/tubes are suitable for manufacturing super-heaters, re-heaters, water walls, and economizers in large-scale power plants.

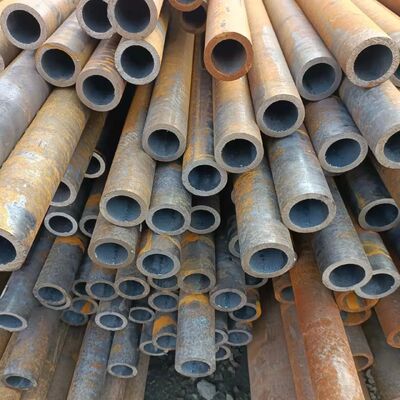

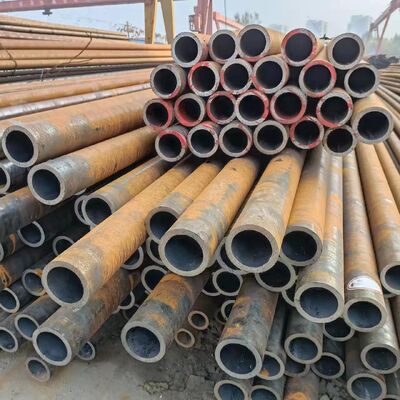

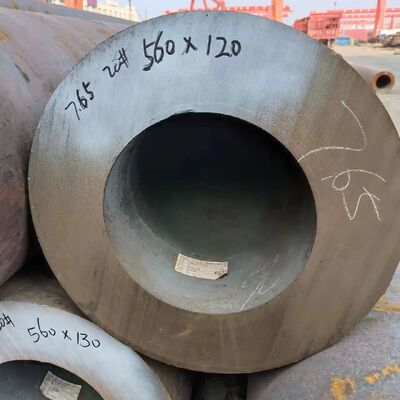

Product Images
Company Information
Our company is a professional enterprise specializing in pipe fittings production, steel pipe sales, and export services. We primarily manufacture alloy steel pipes, alloy pipes, and alloy pipe fittings.
Company Overview
Established in 1992, our factory covers 100,000 square meters and employs 520 staff members, including 3 senior engineers, 12 engineers, and 150 professional technicians. Annual production exceeds 20,000 tons of pipe fittings and 50,000 tons of pipe flux.
Certifications
ISO9001 International Quality Management System, ISO14001 Environmental Management System, OHSA18001 Occupational Health and Safety Management System, Pressure Pipe Special Equipment Manufacturing License, Measurement Assurance Certificate, and various industry network member certifications.
Production Capabilities
We operate 420 sets of key equipment including pushing machines, press machines, large heat treatment furnaces, beveling machines, sawing machines, three-way extruders, splint hammers, and large sand blasting machines. We maintain over 20,000 tons of special steel pipes in inventory year-round.
Materials & Applications
Our products utilize materials including SA106B, 20G, Q345, 12Cr1MoVG, 15CrMoG, 1Cr5Mo, 1Cr9Mo, 10CrMo910, A335P5/P9/P11/P12/P22/P91/P92, WB36, and various austenitic stainless steels. Applications include petroleum, chemical, power generation, metallurgy, city gas, heat pipe networks, and shipbuilding industries.
Global Reach
Our products are exported to Southeast Asia, Central Asia, North Africa, South America, and other regions worldwide. We are committed to high-quality products, excellent service, and building lasting partnerships with our customers.
