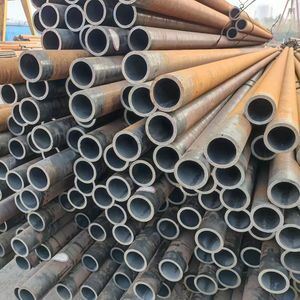

Cold Drawn Seamless Alloy Steel Tube ASTM A213 High Temperature Resistant Corrosion Resistant Heat-Exchanger Tube
Product Details
| Outer Diameter | 6-1200mm | Wall Thickness | 1-120mm |
|---|---|---|---|
| Length | 6m,5.8m,11.8m,12m | Surface Treatment | Black Painted, PE Coated, Galvanized |
| Section Shape | Round | Carbon Content | 0.05-0.15% (T11) |
| Manganese Content | 0.30-0.60% (T11) | Chromium Content | 0.50-1.00% (T11) |
| Molybdenum Content | 1.00-1.50% (T11) | Tensile Strength | ≥415 MPa (T11) |
| Yield Strength | ≥205 MPa (T11) | Elongation | ≥30% (T11) |
| Hardness | ≤163HB (T11) | Heat Treatment | 1200°F-1300°F (P1, P2, P12) |
| OD Tolerance | ±0.4mm (10.29-48.3mm) | ||
| Highlight | Cold Drawn Seamless Alloy Steel Tube,High Temperature Resistant ASTM A213 Tube,Corrosion Resistant Heat-Exchanger Tube |
||
Product Description
Seamless Alloy Cold Drawn Steel Tube ASTM A213 T5 T9 T11 T12, Heat-Exchanger Tubes
High-performance seamless alloy steel tubes manufactured through cold drawing process, specifically designed for heat exchanger applications in demanding industrial environments.
Product Specifications
| Item | Cold Rolled / Cold Drawn alloy steel seamless pipe |
| Standards | JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTMA335/A335m, ASTMA213/A213m, DIN 17175 |
| Model Numbers | 12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo |
Product Description
| Feature | Specifications |
|---|---|
| Surface | Black painted, PE coated, galvanized |
| Length | 6m, 5.8m, 11.8m, 12m, or as required |
| Wall Thickness | 1-120mm |
| Outer Diameter | 6-1200mm |
Trade Terms
| Payment Terms | T/T, L/C, Western Union |
| Price Terms | FOB, CIF, CFR, Ex-work, CNF |
Chemical Composition (%)
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
|---|---|---|---|---|---|---|---|---|
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Properties
| Standard | Steel Grade | Tensile (MPa) | Yield (MPa) | Elongate (%) | Hardness |
|---|---|---|---|---|---|
| 20MnG | 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 15CrMoG | 440~640 | ≥235 | ≥21 | |
| 12Cr2MoG | 12Cr2MoG | 450~600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 12Cr1MoVG | 470~640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 12Cr2MoWVTiB | 540~735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| ASME SA210 | SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| ASME SA213 | SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| ASME SA213 | SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| DIN17175 | ST45.8/ | 410~530 | ≥255 | ≥21 | / |
| DIN17175 | 15Mo3 | 450~600 | ≥270 | ≥22 | |
| DIN17175 | 13CrMo44 | 440~590 | ≥290 | ≥22 | |
| DIN17175 | 10CrMo910 | 480~630 | ≥280 | ≥20 |
Heat Treatment Assurance
Our facility utilizes a fully-automatic natural gas furnace measuring 24 meters in length, ensuring precise temperature control with real temperature tolerance maintained within 10ºC.
Important Note: It is recommended that the tempering temperature should be at least 100°F [50°C] above the intended service temperature. Please advise if service temperature exceeds 1100°F [600°C].
Pipes of Grades P1, P2, and P12 (hot finished or cold drawn) may receive final heat treatment at 1200°F[650°C] to 1300°F [705°C] instead of standard specifications. All Grade P5c pipes undergo final heat treatment in the range of 1325°F [715°C] to 1375°F[745°C].
Quality Assurance
- Each lot of raw materials undergoes spectrometer testing before storage
- 100% PMI (Positive Material Identification) of mother pipe to ensure correct material
- 100% PMI of finished pipe to verify correct grade production
Permitted OD Tolerance
| Outer Diameter (mm) | Plus Tolerance (+) | Minus Tolerance (-) |
|---|---|---|
| 10.29-48.3 | 0.4 | 0.4 |
| <48.3--≤114.3 | 0.79 | 0.79 |
| <114.3-≤219.1 | 1.59 | 0.79 |
| <219.1-≤323.9 | 2.38 | 0.79 |
| <323.9 | ±1% | |
Applications
These high-pressure, low & medium pressure boiler steel pipes/tubes are specifically designed for manufacturing super-heaters, re-heaters, water walls, and economizers in large-scale power plants.
Product Gallery
Manufacturer Profile
Our company is a comprehensive enterprise specializing in pipe fittings production, steel pipe sales, and export services. We primarily manufacture alloy steel pipes, alloy pipes, and alloy pipe fittings.
Company Overview
Established in 1992, our facility covers 100,000 square meters and employs 520 personnel, including 3 senior engineers, 12 engineers, and 150 technical professionals. Annual production capacity exceeds 20,000 tons of pipe fittings and 50,000 tons of pipe flux.
Certifications & Quality Standards
- ISO9001 International Quality Management System Certification
- ISO14001 Environmental Management System Certification
- OHSA18001 Occupational Health and Safety Management System Certification
- Pressure Pipe Special Equipment Manufacturing License
- Measurement Assurance Ability Certificate
- China Power Network Members Accessories Factory Certification
- China Petrochemical Materials Supply Network Member Certification
Production Capabilities
Our facility features 420 sets of advanced equipment including pushing machines, press machines, large heat treatment furnaces, beveling machines, sawing machines, three-way extruders, splint hammers, large sand blasting machines, and comprehensive testing instruments.
Material Inventory & Supply Chain
We maintain over 20,000 tons of special steel pipes year-round, including materials such as SA106B, 20G, Q345, 12Cr1MoVG, 15CrMoG, 1Cr5Mo, 1Cr9Mo, 10CrMo910, A335P5/P9/P11/P12/P22/P91/P92, WB36, and various austenitic stainless steels.
As authorized dealers for major steel manufacturers including Tianjin Big Seamless Steel Tube, Shanghai Baosteel, Chengdu Steel Vanadium, Yangzhou Chengde, Valin Henggang, and Baotou Steel, our products serve petroleum, chemical, power, metallurgy, city gas, heat pipe networks, shipbuilding, and other industrial pipeline applications.
Our products are exported to Southeast Asia, Central Asia, North Africa, South America, and other global markets. We remain committed to quality products, excellent service, and building lasting partnerships with our customers.
