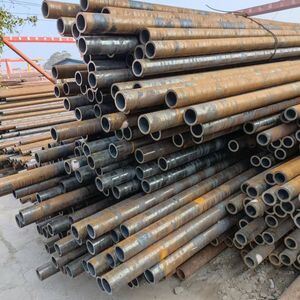

Black Painted Hot-Expanded Seamless Alloy Steel Tube for Heat-Exchanger Tubes
Product Details
| Surface Treatment | Black | Section Shape | Round |
|---|---|---|---|
| Outer Diameter | 6-630mm | Production Capacity | 50000kgs |
| Length | 6m,5.8m,11.8m,12m | Wall Thickness | 1-120mm |
| Outer Diameter Range | 6-1200mm | Tensile Strength | 415-735MPa |
| Yield Strength | 205-440MPa | Elongation | 18-30% |
| Hardness | ≤250HB | Heat Treatment | 1200°F-1375°F |
| Temperature Tolerance | ±10ºC | OD Tolerance | ±0.4mm To ±1% |
| Material Grades | 12Cr1MoV, P91, T91, 15CrMo | ||
| Highlight | Black Painted Seamless Alloy Steel Tube,Hot-Expanded Seamless Steel Pipe,Heat-Exchanger Tubes Alloy Steel Pipe |
||
Product Description
Painting Black Seamless Alloy Steel Tube Hot-Expanded for Heat-Exchanger Tubes
High-performance cold rolled/cold drawn alloy steel seamless pipes specifically designed for heat-exchanger applications, featuring black painted surface protection.
Product Specifications
| Item | Cold Rolled / Cold Drawn alloy steel seamless pipe |
| Standards | JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTMA335/A335m, ASTMA213/A213m, DIN 17175 |
| Model Numbers | 12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo |
Physical Characteristics
| Surface | Black painted, PE coated, galvanized |
| Length | 6m, 5.8m, 11.8m, 12m, or as required |
| Wall Thickness | 1-120mm |
| Outer Diameter | 6-1200mm |
Trade Terms
| Payment Terms | T/T, L/C, Western Union |
| Price Terms | FOB, CIF, CFR, Ex-work, CNF |
Chemical Composition
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
|---|---|---|---|---|---|---|---|---|
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Properties
| Standard | Steel Grade | Tensile (MPa) | Yield (MPa) | Elongate (%) | Hardness |
|---|---|---|---|---|---|
| 20MnG | 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 15CrMoG | 440~640 | ≥235 | ≥21 | |
| 12Cr2MoG | 12Cr2MoG | 450~600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 12Cr1MoVG | 470~640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 12Cr2MoWVTiB | 540~735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| ASME SA210 | SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| ASME SA213 | SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| ASME SA213 | SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| ASME SA213 | SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| ASME SA213 | SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| DIN17175 | ST45.8/ | 410~530 | ≥255 | ≥21 | / |
| DIN17175 | 15Mo3 | 450~600 | ≥270 | ≥22 | |
| DIN17175 | 13CrMo44 | 440~590 | ≥290 | ≥22 | |
| DIN17175 | 10CrMo910 | 480~630 | ≥280 | ≥20 |
Heat Treatment Assurance
Our facility utilizes a fully-automatic natural gas furnace measuring 24 meters in length, ensuring precise temperature control with real temperature tolerance maintained within 10ºC.
Important Note: It is recommended that the tempering temperature should be at least 100°F [50°C] above the intended service temperature. Please advise if service temperature exceeds 1100°F [600°C].
Pipes of Grades P1, P2, and P12 (hot finished or cold drawn) may receive final heat treatment at 1200°F[650°C] to 1300°F [705°C] instead of specified treatments. All Grade P5c pipes receive final heat treatment in the range of 1325°F [715°C] to 1375°F[745°C].
Pipes of Grades P1, P2, and P12 (hot finished or cold drawn) may receive final heat treatment at 1200°F[650°C] to 1300°F [705°C] instead of specified treatments. All Grade P5c pipes receive final heat treatment in the range of 1325°F [715°C] to 1375°F[745°C].
Quality Assurance Process
- Each lot of raw materials undergoes spectrometer testing before storage
- 100% PMI (Positive Material Identification) of mother pipe to ensure correct material
- 100% PMI of finished pipe to verify correct grade production
Permitted Outer Diameter Tolerance
| OD (mm) | Plus Tolerance (+) | Minus Tolerance (-) |
|---|---|---|
| 10.29-48.3 | 0.4 | 0.4 |
| <48.3--≤114.3 | 0.79 | 0.79 |
| <114.3-≤219.1 | 1.59 | 0.79 |
| <219.1-≤323.9 | 2.38 | 0.79 |
| <323.9 | ±1% | |
Applications
High pressure, low & medium pressure boiler steel pipes/tubes are specifically designed for manufacturing super-heaters, re-heaters, water walls, and economizers in large-scale power plants.
Product Gallery
Manufacturer Profile
Our company is a professional enterprise specializing in pipe fittings production, steel pipe sales, and export services. We primarily manufacture alloy steel pipes, alloy pipes, and alloy pipe fittings.
Established in 1992, our facility covers 100,000 square meters and employs 520 personnel, including 3 senior engineers, 12 engineers, and 150 technical professionals. Annual production capacity exceeds 20,000 tons of pipe fittings and 50,000 tons of pipe flux.
Certifications: ISO9001, ISO14001, OHSA18001, pressure pipe special equipment manufacturing license, measurement assurance certificate, and multiple industry network member certifications.
Production Capabilities: Advanced equipment including pushing machines, press machines, large heat treatment furnaces, beveling machines, and comprehensive testing instruments. We maintain over 20,000 tons of special steel pipes in inventory year-round.
Materials & Applications: SA106B, 20g, Q345, 12Cr1MoVG, 15CrMoG, 1Cr5Mo, 1Cr9Mo, 10CrMo910, A335P5/P9/P11/P12/P22/P91/P92, WB36, and various austenitic stainless steels. Products serve petroleum, chemical, power, metallurgy, city gas, heat pipe networks, and shipbuilding industries.
Our products are distributed nationwide and exported to Southeast Asia, Central Asia, North Africa, South America, and other global markets. We remain committed to quality products, excellent service, and building lasting partnerships with our customers.
