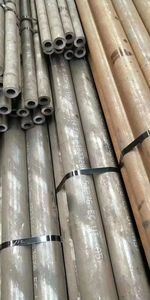

X10CrMoVNb9-1 T91/P91 Alloy Steel Seamless Pipe for High-Temperature Service in Boiler Applications
Product Details
| Model NO. | P91 | Surface Treatment | Black |
|---|---|---|---|
| Section Shape | Round | Outer Diameter | 6-630mm |
| Production Capacity | 50000kgs | Material Grade | X10CrMoVNb9-1 |
| Chromium Content | 9% | Molybdenum Content | 1% |
| Temperature Resistance | 580°C - 600°C | Standard | ASTM A 335, A 213, EN 10216-2 |
| Wall Thickness | STD, 40, XH, 60, 80, 100, 120, 140, 160, XXH | Heat Transfer | Higher Than Austenitic Steels |
| Thermal Expansion | Lower Than Austenitic Steels | Material Type | Ferritic-martensitic Steel |
| Micro-alloying Elements | Vanadium, Niobium | ||
| Highlight | X10CrMoVNb9-1 Alloy Steel Seamless Pipe,T91/P91 Boiler Pipe,High-Temperature Service Pipe |
||
Product Description
X10CrMoVNb9-1 Alloy Steel Seamless Pipes for High-Temperature Service (T91/P91)
Grade T/P91 is a ferritic-martensitic steel containing 9% chromium and 1% molybdenum, micro-alloyed with vanadium and niobium, with controlled nitrogen content according to ASTM A 335, A 213, or EN 10216-2 standards under the designation X10CrMoVNb9-1.
Primary Applications
On fossil-fueled power plants, this grade is primarily used for high-temperature applications in superheater and reheater tubes, headers, and steam piping (main steam and hot reheat).
Performance Characteristics
- Excellent elevated-temperature strength and creep behavior up to 580°C - 600°C
- 9% chromium content provides superior corrosion and oxidation resistance compared to grade 22
- Reduced weight of boiler and piping components due to superior performance
- Higher resistance to thermal fatigue
- Superior heat transfer and lower thermal expansion coefficients compared to austenitic steels
Available Specifications
Standard wall thickness designations: STD, 40, XH, 60, 80, 100, 120, 140, 160, XXH
Special customer designated nominal and minimum wall thicknesses can be furnished. Non-standard OD & ID dimensions are available.
Alternative Manufacturing Process
Best Pipeline can provide pipe from turned and bored forgings in accordance with Specifications A/SA369 when client requirements for size, wall thickness, quantity, or delivery cannot be met by material available under Specifications A/SA335.
Material Grades and International Equivalents
| EN/DIN Grade | Steel Designation | Standard |
|---|---|---|
| P235GH | 1.0345 | EN10216-2 |
| P265GH | 1.0425 | EN10216-2 |
| 16Mo3 | 1.5415 | EN10216-2 |
| 15NiCuMoNb5-6-4 | 1.6368 | EN10216-2 |
| 13CrMo4-5 | 1.7335 | EN10216-2 |
| 10CrMo9-10 | 1.7380 | EN10216-2 |
| X11CrMo5 | 1.7362 | EN10216-2 |
| X11CrMo9-1 | 1.7386 | EN10216-2 |
| X10CrMoNVb9-1 | 1.4903 | EN10216-2 |
| X10CrwMoVNb9-2 | 1.4901 | EN10216-2 |
International Standards Reference
| Standard | Country | Organization |
|---|---|---|
| ASTM | USA | American Society of Mechanical Engineers |
| AISI | USA | American Iron and Steel Institute |
| JIS | Japan | Japanese Industrial Standards |
| DIN | Germany | Deutsches Institut fur Normung e.V. |
| UNS | USA | Unified Numbering System |
