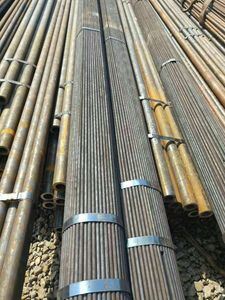

ASTM A335 Alloy Steel Seamless Pipe for High-temperature Service with Corrosion Resistance and OD 6-630mm
Product Details
| Material Grade | X10CrMoVNb9-1 | Outer Diameter | 6-630mm |
|---|---|---|---|
| Section Shape | Round | Surface Treatment | Black |
| Temperature Resistance | 580°C - 600°C | Chromium Content | 9% |
| Molybdenum Content | 1% | Micro-alloy Elements | Vanadium, Niobium |
| Heat Transfer | Higher Than Austenitic Steels | Thermal Expansion | Lower Than Austenitic Steels |
| Wall Thickness | Customizable | Production Capacity | 50000kgs |
| Standard Compliance | ASTM A335, A213, EN10216-2 | Pipe Size Range | 1/2" - 80" |
| Material Type | Ferritic-martensitic Steel | ||
| Highlight | High-temperature Service Alloy Steel Pipe,Corrosion Resistant Seamless Steel Pipe,OD 6-630mm ASTM A335 Pipe |
||
Product Description
ASTM A335 P5 P9 P11 P22 P91 Alloy Steel Pipe
Available in sizes from 1/2" to 80" for high-temperature industrial applications
Product Overview
X10CrMoVNb9-1 Alloy Steel Seamless Pipes for High-temperature Service T91/P91 (X10CrMoVNb9-1) are premium ferritic-martensitic steel pipes micro-alloyed with vanadium and niobium, manufactured according to ASTM A335, A213, and EN 10216-2 standards.
Primary Applications
These alloy steel pipes are specifically designed for fossil-fueled power plants, serving critical roles in:
- Superheater and reheater tubes
- Headers and steam piping systems
- Main steam and hot reheat lines
Performance Advantages
- Excellent elevated-temperature strength and creep resistance up to 580°C - 600°C
- Superior corrosion and oxidation resistance with 9% chromium content
- Enhanced thermal fatigue resistance through reduced component weight
- Higher heat transfer coefficients compared to austenitic steels
- Lower thermal expansion coefficients for improved stability
Available Specifications
Standard wall thickness designations: STD, 40, XH, 60, 80, 100, 120, 140, 160, XXH
Custom nominal and minimum wall thicknesses available upon request. Non-standard OD & ID dimensions can be furnished to meet specific project requirements.
Alternative Manufacturing Options
When size, wall thickness, quantity, or delivery requirements cannot be met by A/SA335 specifications, we offer pipes from turned and bored forgings in accordance with A/SA369 specifications. Available grades include FP11, FP22, FP5, FP9, FP91, and FP92.
Material Grades and International Equivalents
| EN/DIN Grade | Steel Designation | Standard |
|---|---|---|
| P235GH | 1.0345 | EN10216-2 |
| P265GH | 1.0425 | EN10216-2 |
| 16Mo3 | 1.5415 | EN10216-2 |
| 15NiCuMoNb5-6-4 | 1.6368 | EN10216-2 |
| 13CrMo4-5 | 1.7335 | EN10216-2 |
| 10CrMo9-10 | 1.7380 | EN10216-2 |
| X11CrMo5 | 1.7362 | EN10216-2 |
| X11CrMo9-1 | 1.7386 | EN10216-2 |
| X10CrMoNVb9-1 | 1.4903 | EN10216-2 |
| X10CrwMoVNb9-2 | 1.4901 | EN10216-2 |
International Standards Reference
| Standard | Country | Organization |
|---|---|---|
| ASTM | USA | American Society of Mechanical Engineers |
| AISI | USA | American Iron and Steel Institute |
| JIS | Japan | Japanese Industrial Standards |
| DIN | Germany | Deutsches Institut fur Normung e.V. |
| UNS | USA | Unified Numbering System |
