EN 10216-2 P235GH Seamless Steel Tube for High Temperature and High Pressure Boiler Pipe with OD 6-630mm

  • EN 10216-2 P235GH Seamless Steel Tube for High Temperature and High Pressure Boiler Pipe with OD 6-630mm
Minimum Order Quantity 1 Ton
Price US $650-890 / Ton
Product Details
Model NO. P235GH Surface Treatment Black
Section Shape Round Outer Diameter 6-630mm
Production Capacity 50000kgs Carbon Content ≤0.16%
Silicon Content ≤0.35% Manganese Content ≤1.20%
Phosphorus Content ≤0.025% Sulfur Content ≤0.020%
Chromium Content ≤0.30% Molybdenum Content ≤0.08%
Tensile Strength 360-500MPa Bend Strength ≥238MPa
Elongation 25%
Highlight

EN 10216-2 P235GH Seamless Steel Tube

,

High Temperature and High Pressure Boiler Pipe

,

OD 6-630mm Seamless Steel Pipe
Leave a Message
Product Description
EN 10216-2 P235GH Seamless Steel Tube for High Temperature and High Pressure Applications
EN 10216-2 P235GH seamless steel tubes are specifically designed for high temperature and high pressure applications in boiler systems, heating pipes, superheaters, reheaters, pressure vessels, and industrial instruments.
Product Overview
The EN10216-2 standard covers seamless steel pipes for pressure purposes, with P235GH being one of the primary material grades. These pipes are available in various grades including P195GH, P235GH, and P265GH, each with specific inspection requirements, chemical compositions, and mechanical properties to meet different application needs.
This standard is widely adopted across European countries including Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, the Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, and the United Kingdom.
Our EN10216-2 P235GH seamless steel pipes feature surface painting and marking, chamfered ends, threading capabilities, and blunt finishes. Both ends can be equipped with protective pipe caps and covers, with various export packaging options to ensure safe transportation and delivery.
Chemical Composition (%)
Standards Steel Pipes No. C Si Mn P S Cr Mo Cu Ni Al Nb N
EN10216-2 15NiCuMoNb5-6-4 (WB36) ≤0.17 0.25~0.50 0.80~1.20 ≤0.025 ≤0.020 ≤0.30 0.25~0.50 0.50~0.80 1.00~1.30 ≤0.05 0.015~0.045
P195GH ≤0.13 ≤0.35 ≤0.70 ≤0.025 ≤0.020 ≤0.30 ≤0.08
P235GH ≤0.16 ≤0.35 ≤1.20 ≤0.025 ≤0.020 ≤0.30 ≤0.08
P265GH ≤0.20 ≤0.40 ≤1.40 ≤0.025 ≤0.020 ≤0.30 ≤0.08
20MnNb6 ≤0.22 0.15~0.35 1.00~1.50 ≤0.025 ≤0.020 / /
16Mo3 0.12~0.20 ≤0.35 0.40~0.90 ≤0.025 ≤0.020 ≤0.30 ≤0.08
Physical Properties
Standards Steel Pipes No. Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Impact Energy (J) Hardness
EN10216-2 15NiCuMoNb5-6-4 (WB36) 610~780 ≥440 ≥19
P195GH 320~440 ≥195 27
P235GH 360~500 ≥238 25
P265GH 410~570 ≥265 23
20MnNb6 500~650 ≥355 22
16Mo3 450~600 ≥280 22
Product Images

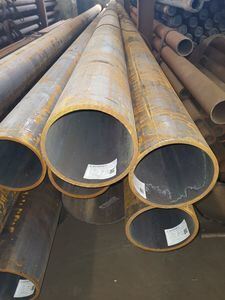

EN 10216-2 P235GH Seamless Steel Tube for High Temperature and High Pressure Boiler Pipe with OD 6-630mm 0 EN 10216-2 P235GH Seamless Steel Tube for High Temperature and High Pressure Boiler Pipe with OD 6-630mm 1 EN 10216-2 P235GH Seamless Steel Tube for High Temperature and High Pressure Boiler Pipe with OD 6-630mm 2
