Hot Rolled 321 Stainless Steel Bar 10 - 140mm Diameter in 6m Length SS Round Bar

  • Hot Rolled 321 Stainless Steel Bar 10 - 140mm Diameter in 6m Length SS Round Bar
  • Hot Rolled 321 Stainless Steel Bar 10 - 140mm Diameter in 6m Length SS Round Bar
  • Hot Rolled 321 Stainless Steel Bar 10 - 140mm Diameter in 6m Length SS Round Bar
  • Hot Rolled 321 Stainless Steel Bar 10 - 140mm Diameter in 6m Length SS Round Bar
  • Hot Rolled 321 Stainless Steel Bar 10 - 140mm Diameter in 6m Length SS Round Bar
  • Hot Rolled 321 Stainless Steel Bar 10 - 140mm Diameter in 6m Length SS Round Bar
Certification AISI
Minimum Order Quantity 50 kg
Price US $2.66-3.19 / kg
Product Details
Shape Round Technique Cold Rolled
Surface Treatment Bright Diameter Range 8 - 300mm
Length 6m/pcs Grade 316L / 1.4404 / AISI316L
Standard ASTM A276/276M Tensile Strength 515 MPa Min
Yield Strength 205 MPa Min Elongation 40% In 50 Mm Min
Hardness Rockwell HR B 95 Max Hardness Brinell HB 217 Max
Carbon Content 0.08 Max Chromium Content 17.0 - 19.0
Nickel Content 9.0 - 12.0
Highlight

321 Stainless Steel Bar

,

10 - 140mm Diameter SS Bar

,

6m Length Stainless Steel Round Bar
Leave a Message
Product Description
Hot Rolled 321 Stainless Steel Bar
Available in diameters from 10-140mm with standard 6m lengths, our 321 stainless steel bars offer exceptional performance for demanding industrial applications.
Product Specifications
Products Stainless Steel Round Bar
Grade 316L / 1.4404 / AISI316L
Standard ASTM A276/276M
Diameter 8 - 300mm
Length 6m/pcs or cutting any length as requested
Surface Black, bright
Other Grades 304, 310S, 316L, 317L, 321, 410, 420, 431, 440A/B/C, 2205, 2507, 630, 631, 904L, etc.
Service Cutting, polishing, heat treatment
Stainless Steel Bar Product Range
Product Name Size Range Main Grades
Stainless Steel Round Bar (hot rolled black surface) 8 - 300mm 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 410, 420, 431, 440A/B/C, 2205, 2507, 904L, 254SMO, 17-4PH, 17-7PH, etc.
Stainless Steel Round Bar (bright polished) 3 - 50mm 201, 304, 316L, 310S, 2205, 630, etc.
Stainless Steel Square Bar 4×4 - 50×50mm 201, 304, 316L, 310S, 410, 420, etc.
Stainless Steel Hexagon Bar S4-S70 201, 304, 316L, 310S, 410, 420, etc.
Stainless Steel Flat Bar 10×3 - 100×40 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 410, 420, 431, 440A/B/C, 2205, 2507, 904L, 254SMO, 17-4PH, 17-7PH, etc.
Stainless Steel Angle Bar 30×30 - 200×200 201, 304, 316L, 310S, 2205, etc.
Stainless Steel Channel Bar 50×25 - 200×100 201, 304, 316L, 310S, 2205, etc.
About 321 Stainless Steel
Alloy 321 (UNS S32100) is a titanium-stabilized stainless steel that provides excellent resistance to intergranular corrosion following exposure to temperatures between 800-1500°F (427-816°C). The addition of titanium stabilizes the alloy against chromium carbide formation.
321 stainless steel offers superior high-temperature performance with enhanced creep and stress rupture properties compared to Alloy 304 and 304L. It maintains excellent oxidation resistance up to 1500°F (816°C) and provides good low-temperature toughness.
Alloy 321H (UNS S32109) features higher carbon content (0.04-0.10) for improved creep resistance and elevated temperature strength above 1000°F (537°C). Both 321 and 321H variants cannot be hardened by heat treatment but respond well to cold working and standard fabrication processes.
Chemical Composition
Grade C Mn Si P S Cr Mo Ni N Other
321 0.08 max 2.00 max 0.75 max 0.045 max 0.030 max 17.0-19.0 - 9.0-12.0 0.10 max Ti=5(C+N) min, 0.70 max
321H 0.04-0.10 2.00 max 0.75 max 0.045 max 0.030 max 17.0-19.0 - 9.0-12.0 - Ti=4(C+N) min, 0.70 max
347 0.08 max 2.00 max 0.75 max 0.045 max 0.030 max 17.0-19.0 - 9.0-13.0 - Nb=10(C+N) min, 1.0 max
Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Rockwell B (HR B) max Brinell (HB) max
321 515 205 40 95 217
321H 515 205 40 95 217
347 515 205 40 92 201
Typical Applications
  • Aircraft exhaust manifolds
  • Expansion joints
  • Bellows
  • Furnace parts
  • Heating element tubing
  • Heat exchangers
  • Woven or welded screens for high-temperature mineral processing
  • Spiral welded tube for burner pipes and flues

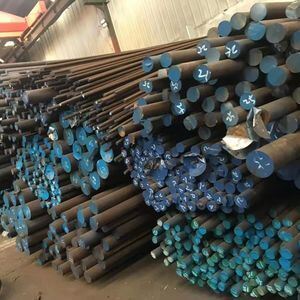

Product Images
Hot Rolled 321 Stainless Steel Bar 10 - 140mm Diameter in 6m Length SS Round Bar 0 Hot Rolled 321 Stainless Steel Bar 10 - 140mm Diameter in 6m Length SS Round Bar 1
