Diameter 8-300mm 17-4PH Stainless Steel Round Bar with 6m Length and Bright Surface

Certification	ISO, AISI, ASTM, EN, DIN, JIS
Minimum Order Quantity	50 kg
Price	US $3.24-3.73 / kg

Product Details

Diameter Range	8 - 300mm	Length	6m
Shape	Round	Technique	Hot Rolled
Surface Treatment	Bright	Material Grade	17-4PH/630
Tensile Strength	1105-1310 MPa	Yield Strength	1000-1170 MPa
Elongation	10-16%	Hardness	28-44 HRC
Density	7750 Kg/m³	Thermal Conductivity	18.4-22.7 W/m.K
Specific Heat	460 J/kg.K	Electrical Resistivity	800 NΩ.m
Coefficient Of Thermal Expansion	10.8-11.6 µm/m/°C
Highlight	Diameter 8-300mm Stainless Steel Round Bar , 6m Length 17-4PH Round Bar , Bright Surface 630 Stainless Steel Bar

Leave a Message

Product Description

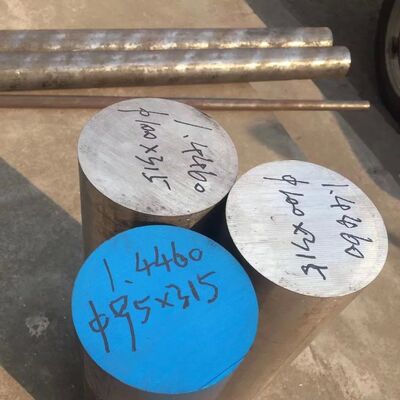

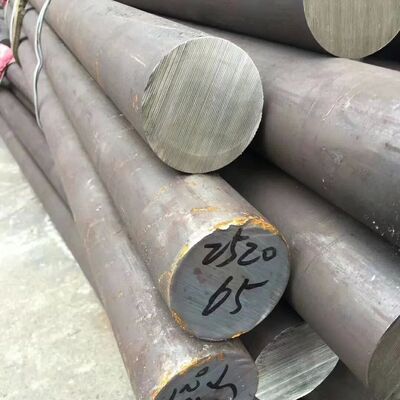

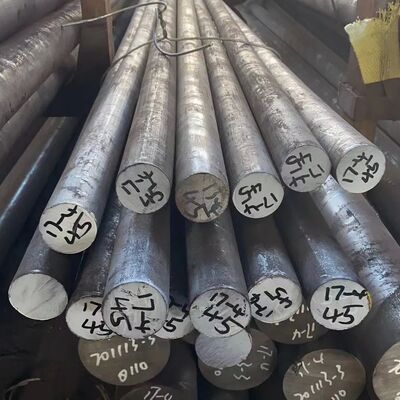

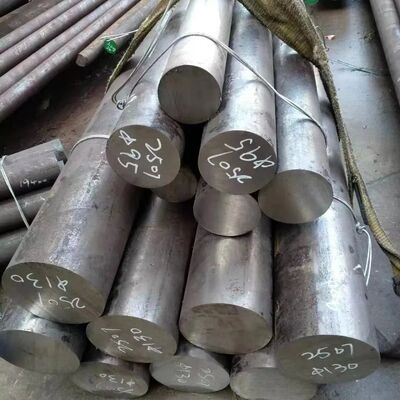

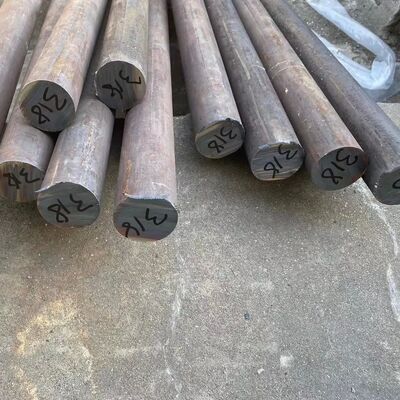

Diameter 8-300mm 17-4PH Stainless Steel Round Bar

High-strength 17-4PH precipitation hardening stainless steel round bars available in diameters from 8mm to 300mm with standard 6-meter lengths. Custom cutting services available upon request.

Product Specifications

Product	17-4PH Stainless Steel Round Bar
Standard	ASTM GB DIN EN
Diameter	8 - 450mm
Length	6m per piece or custom cutting available
Finishing	Black Bar / Bright Bar
Main Grades	201, 301, 303Cu, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 318, 321, 347, 410, 420, 430, 431, 440a/b/c, 904L, 2205, 2507, Hastelloy C276, C4, C22, Inconel 600, 625, Incoloy 800, 825, 825H, etc.
Service	Cutting, surface polishing, heat treatment
Brand	Walsin, BAOSTEEL, TISCO, QINGSHAN

Material Description

17-4PH Precipitation Hardening (Type 630) is a chromium-copper precipitation hardening stainless steel designed for applications requiring high strength and moderate corrosion resistance. This alloy maintains high strength up to approximately 600°F (316°C).

General Properties

Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with copper and niobium additions. This grade combines high strength, hardness (up to 572°F / 300°C), and excellent corrosion resistance. Mechanical properties can be optimized through heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi).

Note: This grade should not be used at temperatures above 572°F (300°C) or at very low temperatures. It provides adequate resistance to atmospheric corrosion and diluted acids or salts, with corrosion resistance equivalent to Alloy 304 or 430.

Applications & Standards

Applications	Standards
Offshore (foils, helicopter deck platforms) Food industry Pulp and paper industry Aerospace (turbine blades) Mechanical components Nuclear waste casks	ASTM A693 grade 630 (AMS 5604B) UNS S17400 EURONORM 1.4542 X5CrNiCuNb 16-4 AFNOR Z5 CNU 17-4PH DIN 1.4542

Chemical Composition

Element	Content (%)
C	0.07 max
Mn	1.0 max
Si	1.0 max
P	0.04 max
S	0.030 max
Cr	15.0 - 17.5
Ni	3.0 - 5.0
Cu	3.0 - 5.0
Nb+Ta	0.15 - 0.45

Mechanical Properties

Condition	Tensile Strength (MPa)	Yield Strength 0.2% Proof (MPa)	Elongation (% in 50mm)	Hardness Rockwell C (HRC)
Solution Treated	1105 (typical)	1000 (typical)	15 (typical)	38 max
Condition 900	1310 min	1170 min	10 min	40 min
Condition 1150	930 min	724 min	16 min	28 min

Physical Properties

Property	Value
Density	7750 kg/m³
Thermal Conductivity at 100°C	18.4 W/m·K
Thermal Conductivity at 500°C	22.7 W/m·K
Specific Heat (0-100°C)	460 J/kg·K
Electrical Resistivity	800 nΩ·m

Alternative Grade Comparison

Alternative Grade	Reason for Selection
431	Higher toughness than 17-4PH, better availability in some sizes
416	Free-machining martensitic stainless steel, better for repetition machining, lower cost
316	Higher corrosion resistance for severe environments, but with much lower strength
2205	Much better corrosion resistance with lower strength (but not as low as 316)
