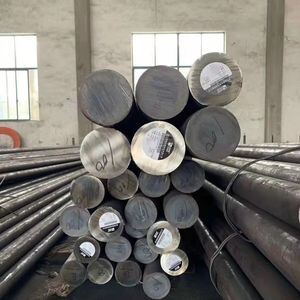

Cold Rolled Bright Surface 316L Stainless Steel Round Bar with OD 6-630mm
Product Details
| Model Number | 316L | Shape | Round |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Diameter Range | 8 - 300mm | Length | 6m/pcs |
| Carbon Content | 0.03% Max | Manganese Content | 2.0% Max |
| Silicon Content | 0.75% Max | Chromium Content | 16.0 - 18.0% |
| Molybdenum Content | 2.00 - 3.00% | Nickel Content | 10.0 - 14.0% |
| Tensile Strength | 485 MPa Min | Yield Strength | 170 MPa Min |
| Elongation | 40% Min | ||
| Highlight | Cold Rolled Stainless Steel Round Bar,Bright Surface 316L Stainless Steel Bar,OD 6-630mm AISI 316L Round Bar |
||
Product Description
ASTM JIS DIN GB 1.4404 / 316L / 022Cr17Ni12Mo2 Stainless Steel Round Bar
Product Specifications
| Products | Stainless Steel Round Bar |
| Grade | 316L / 1.4404 / AISI316L |
| Standard | ASTM A276/276M |
| Diameter | 8 - 300mm |
| Length | 6m/pcs or cutting any length as request |
| Surface | black, bright |
| Other Grade | 304 310S 316L 317L 321 410 420 431 440A/B/C 2205 2507 630 631 904L.etc |
| Service | Cutting, polishing, heat treatment |
Stainless Steel Bar Product Range
| Products Name | Size Range | Mainly Grade |
|---|---|---|
| Stainless Steel Round Bar (hot rolled black surface) | 8 - 300mm | 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 431 440A/B/C 2205 2507 904L 254SMO 17-4PH 17-7PH.etc |
| Stainless Steel Round Bar (bright polished) | 3 - 50mm | 201 304 316L 310S 2205 630.etc |
| Stainless Steel Square Bar | 4*4 - 50*50mm | 201 304 316L 310S 410 420 .etc |
| Stainless Steel Hexagon Bar | S4-S70 | 201 304 316L 310S 410 420 .etc |
| Stainless Steel Flat Bar | 10*3 - 100*40 | 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 431 440A/B/C 2205 2507 904L 254SMO 17-4PH 17-7PH.etc |
| Stainless Steel Angle Bar | 30*30 - 200*200 | 201 304 316L 310S 2205.etc |
| Stainless Steel Channel Bar | 50*25 - 200*100 | 201 304 316L 310S 2205.etc |
About 316L Stainless Steel
Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments.
Grade 316L, the low carbon version of 316, is immune from sensitization (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel.
The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.
Chemical Composition of 316L Stainless Steel
| Element | Min (%) | Max (%) |
|---|---|---|
| C | - | 0.03 |
| Mn | - | 2.0 |
| Si | - | 0.75 |
| P | - | 0.045 |
| S | - | 0.03 |
| Cr | 16.0 | 18.0 |
| Mo | 2.00 | 3.00 |
| Ni | 10.0 | 14.0 |
| N | - | 0.10 |
Mechanical Properties of 316L Stainless Steel
| Property | Value |
|---|---|
| Tensile Strength (MPa) min | 485 |
| Yield Strength 0.2% Proof (MPa) min | 170 |
| Elongation (% in 50 mm) min | 40 |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
Grade Specification Comparison
| Standard | Designation |
|---|---|
| UNS No | S31603 |
| Old British BS | 316S11 |
| Euronorm No | 1.4404 |
| Euronorm Name | X2CrNiMo17-12-2 |
| Swedish SS | 2348 |
| Japanese JIS | SUS 316L |
Corrosion Resistance
Excellent in a range of atmospheric environments and many corrosive media - generally more resistant than 304. Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 60°C.
Considered resistant to potable water with up to about 1000 mg/L chlorides at ambient temperatures, reducing to about 500 mg/L at 60°C.
316 is usually regarded as the standard "marine grade stainless steel", but it is not resistant to warm seawater. In many marine environments, 316 does exhibit surface corrosion, usually visible as brown staining.
Heat Resistance
Good oxidation resistance in intermittent service to 870°C and in continuous service to 925°C. Continuous use of 316 in the 425-860°C range is not recommended if subsequent aqueous corrosion resistance is important.
Grade 316L is more resistant to carbide precipitation and can be used in the above temperature range.
Heat Treatment
Solution Treatment (Annealing) - Heat to 1010-1120°C and cool rapidly. These grades cannot be hardened by thermal treatment.
Welding
Excellent weldability by all standard fusion and resistance methods, both with and without filler metals. Heavy welded sections in Grade 316 require post-weld annealing for maximum corrosion resistance. This is not required for 316L.
316L stainless steel is not generally weldable using oxyacetylene welding methods.
Machining
316L stainless steel tends to work harden if machined too quickly. For this reason, low speeds and constant feed rates are recommended.
316L stainless steel is also easier to machine compared to 316 stainless steel due to its lower carbon content.
Hot and Cold Working
316L stainless steel can be hot worked using the most common hot working techniques. Optimal hot working temperatures should be in the range 1150-1260°C, and certainly should not be less than 930°C. Post-work annealing should be carried out to induce maximum corrosion resistance.
Most common cold working operations such as shearing, drawing, and stamping can be performed on 316L stainless steel. Post-work annealing should be carried out to remove internal stresses.
Hardening and Work Hardening
316L stainless steel does not harden in response to heat treatments. It can be hardened by cold working, which can also result in increased strength.
Applications
- Food preparation equipment particularly in chloride environments
- Pharmaceuticals
- Marine applications
- Architectural applications
- Medical implants, including pins, screws and orthopedic implants like total hip and knee replacements
- Fasteners
