17-4PH Stainless Steel Grinding Bar with Diameter 6mm-18mm Hot Rolled Bright Surface Round Bar

  • 17-4PH Stainless Steel Grinding Bar with Diameter 6mm-18mm Hot Rolled Bright Surface Round Bar
Certification ISO, AISI, ASTM, EN, DIN, JIS
Minimum Order Quantity 50 kg
Price US $3.13-3.61 / kg
Product Details
Diameter Range 6mm - 18mm Standard Diameters 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm
Material Grade 17-4PH Shape Round
Technique Hot Rolled Surface Treatment Bright
Standard Length 6m Tensile Strength 1105-1310 MPa
Yield Strength 724-1300 MPa Elongation 10-16%
Hardness 28-44 HRC Density 7750 Kg/m³
Thermal Conductivity 18.4 W/m.K Maximum Temperature 572°F (300°C)
Corrosion Resistance Equivalent To 304L
Highlight

Diameter 6mm-18mm 17-4PH Stainless Steel Grinding Bar

,

Hot Rolled 17-4PH Stainless Steel Grinding Bar

,

Bright Surface Stainless Steel Round Bar
Leave a Message
Product Description
17-4PH Stainless Steel Grinding Bar

Available in diameters: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm

Product Specification
Products17-4PH Stainless Steel Round Bar
StandardASTM GB DIN EN
Diameter8 - 450mm
Length6m /pcs or cutting as request
Finishingblack bar / Bright Bar
Main Grade201 301 303Cu 304 304L 309S 310S 316L 316Ti 317L 318 321 347 410 420 430 431 440a/b/c 904L 2205 2507 Hastelloy C276 C4 C22 Inconel 600 625 Incoloy 800 825 825H.etc
ServiceCutting, surface polishing, heat treatment
BrandWalsin BAOSTEEL TISCO QINGSHAN
Material Description

17-4 Precipitation Hardening (Type 630) is a chromium-copper precipitation hardening stainless steel used for applications requiring high strength and moderate corrosion resistance. High strength is maintained to approximately 600°F (316°C).

General Properties

Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with Cu and Nb/Cb additions. The grade combines high strength, hardness (up to 572°F / 300°C), and corrosion resistance. Mechanical properties can be optimized with heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi).

Applications & Standards
ApplicationsStandards
  • Offshore (foils, helicopter deck platforms)
  • Food industry
  • Pulp and paper industry
  • Aerospace (turbine blades)
  • Mechanical components
  • Nuclear waste casks
  • ASTM A693 grade 630 (AMS 5604B) UNS S17400
  • EURONORM 1.4542 X5CrNiCuNb 16-4
  • AFNOR Z5 CNU 17-4PH
  • DIN 1.4542
Chemical Composition
GradeCMnSiPSCrNiCuNb+Ta
630min. max - 0.07- 1- 1- 0.04- 0.03015 17.53 53 50.15 0.45
Mechanical Properties
ConditionTensile Strength (MPa)Yield Strength 0.2% Proof (MPa)Elongation (% in 50mm)Hardness Rockwell C (HR C)Hardness Brinell (HB)
Solution Treated1105 typ1000 typ15 typ38 max363 max
Condition 9001310 min1170 min10 min40 min388 min
Condition 1150930 min724 min16 min28 min277 min
Physical Properties
PropertyValue
Density7750 kg/m³
Mean Co-eff of Thermal Expansion 0-100°C10.8 µm/m/°C
Mean Co-eff of Thermal Expansion 0-315°C11.6 µm/m/°C
Thermal Conductivity at 100°C18.4 W/m.K
Thermal Conductivity at 500°C22.7 W/m.K
Specific Heat 0-100°C460 J/kg.K
Electrical Resistivity800 nΩ.m
Applications
  • Engine components
  • High strength and boat propeller shafts
  • Plastic moulding dies
  • Valves and gears
Product Image

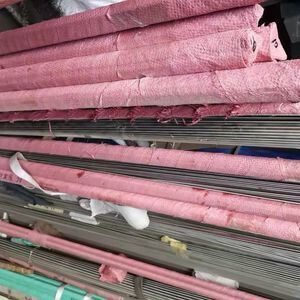

17-4PH Stainless Steel Grinding Bar with Diameter 6mm-18mm Hot Rolled Bright Surface Round Bar 0
