C11000 CU-ETP / CW004A Copper Plate Sheet Flat Plates Good Surface And Smooth Edge
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | CU-ETP |
| Minimum Order Quantity | 50 kgs |
| Price | 10 - 12.2 USD/Kg |
| Packaging Details | carton box, wooden box |
| Delivery Time | 10 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 5 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Copper Plate Sheet | Material | CU-ETP / C11000 / C110 |
|---|---|---|---|
| Thickness | 0.5 - 60.0mm | Width | 10 - 1500mm |
| Length | Within 6m | MOQ | 50 Kgs |
| Type | Plate, Sheet, Coil , Strip, Bars | Packing | Carton Box, Wooden Box |
| Highlight | C11000 Copper Plate Sheet,Smooth Edge Copper Plate Sheet,CU-ETP Copper Plate Sheet |
||
Product Description

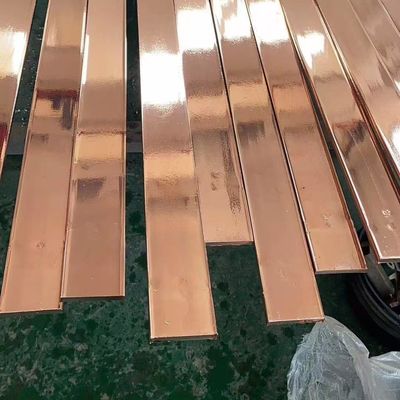

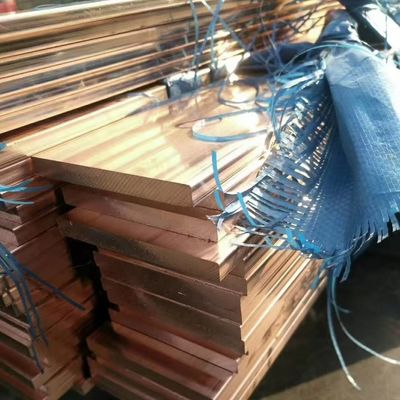

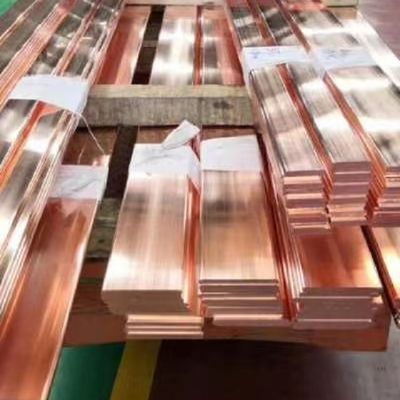

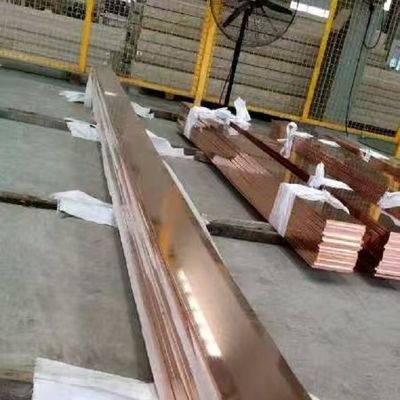

Copper Plate Sheet C11000 CU-ETP / CW004A Flat Plates Good Surface and Smooth Edge
Products Specification
|
Copper Sheet,Copper Plate
|
||||
|
Material
|
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000, C44300,C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600, C70620,C71000,C71500,C71520,C71640,C72200,etc. |
|||
|
Specifications
|
Thickness
|
0.1mm-200mm
|
||
|
Width
|
10mm-2500mm
|
|||
|
Length
|
10mm~12000mm,or as required.
|
|||
|
Price Term
|
Ex-work, FOB, CFR, CIF, etc.
|
|||
|
Payment Term
|
T/T, L/C, Western Union, etc.
|
|||
|
Delivery Time
|
According to order's quantity.
|
|||
|
MOQ
|
100Kgs.
|
|||
|
Export To
|
Singapore,Indonesia,Ukraine,Korea,Thailand, Viet Nam, Saudi Arabia, Brazil,
Spain, Canada, USA, Egypt, India, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq,Russia,Malaysia, etc. |
|||
Pure copper appearance is purplish red, commonly known as "red copper", "red copper" or "red copper".Pure copper conducts electricity very well, ranking second only to silver among all metals, so it is used very widely in industry.T2 is a typical grade of pure copper, usually referring to red copper, or T2 unless otherwise specified.
STANDARDS:
| CHINA |
GB/T 5231-2012 GB/T 2529-2012 |
T2,T11050 |
| USA | ASTM B187-2006 | C11000 |
| JAPAN |
JIS H3100:2006 JIS H3140:2006[TJC STEEL] JIS H3250:2006 |
C1100 |
| GERMANY | DIN 1787:1973 | E-Cu58,2.0065 |
| DIN CEN/TS 13388:2008 | Cu-ETP,CW004A |
CHEMICAL COMPOSITION(%):
| GRADE | T2 | C11000 | C1100 | CW004A |
| Cu | ≥99.90 | ≥99.90 | ≥99.90 | ≥99.90 |
| Ag | — | ≤0.03 | ||
| Bi | ≤0.001 | — | — | ≤0.0005 |
| Sb | ≤0.002 | — | — | — |
| As | ≤0.002 | — | — | — |
| Fe | ≤0.005 | — | — | — |
| Pb | ≤0.005[TJC STEEL] | — | — | ≤0.005 |
| S | ≤0.005 | — | — | — |
| O | — | — | — | ≤0.040 |
PERFORMANCE CHARACTERISTICS:
1. Excellent electrical and thermal conductivity, good ductility, deep drawing performance, corrosion resistance and atmospheric corrosion performance, can be welded and brazed.
2. Trace amount of oxygen is easy to cause "hydrogen embrittlement", not suitable for processing and use in high temperature (such as BBB 0 370℃) reducing atmosphere.
Application of Cu-ETP Copper Plate Sheet
Cu-ETP has the advantages of electric conduction and heat conduction of pure copper, and is widely used, such as wire and cable, sealing gasket, hardware, mold electrode, etc.
