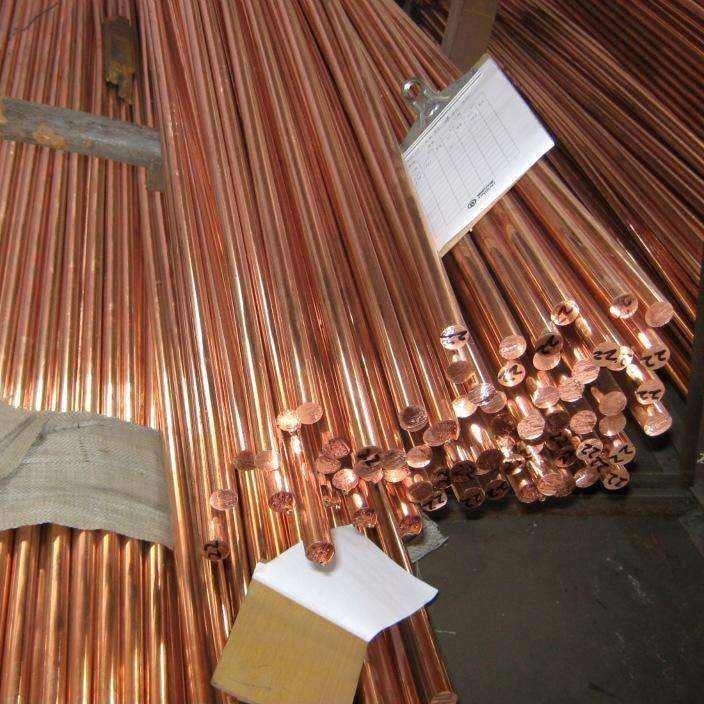

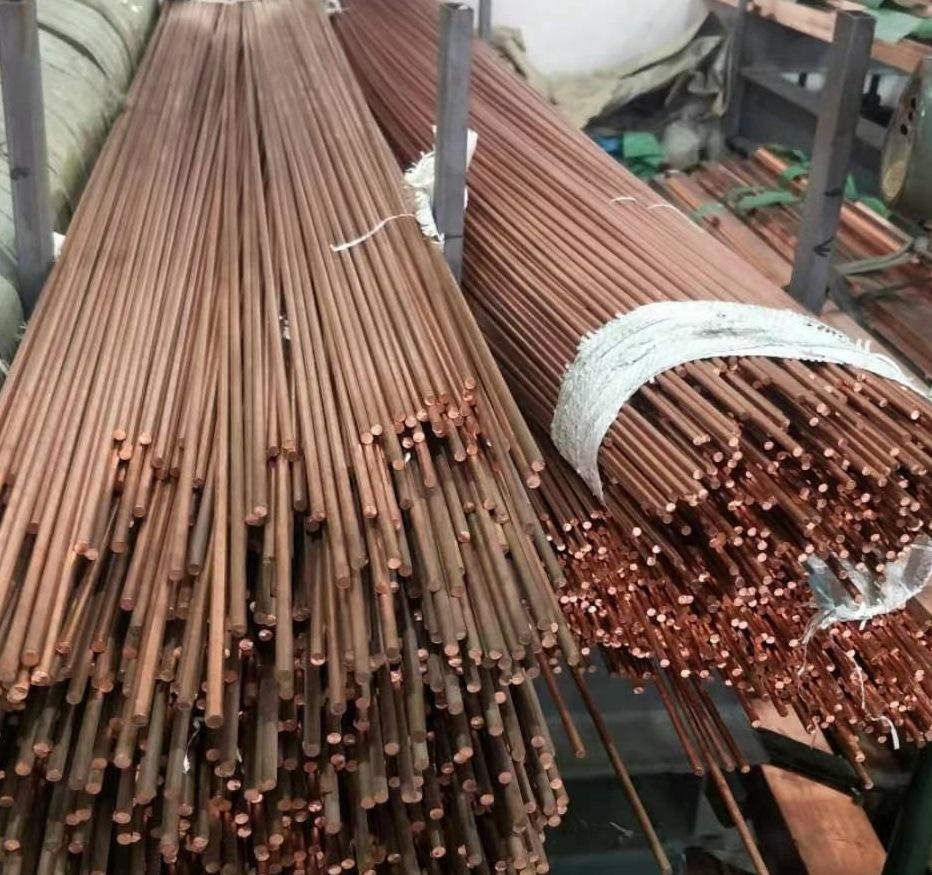

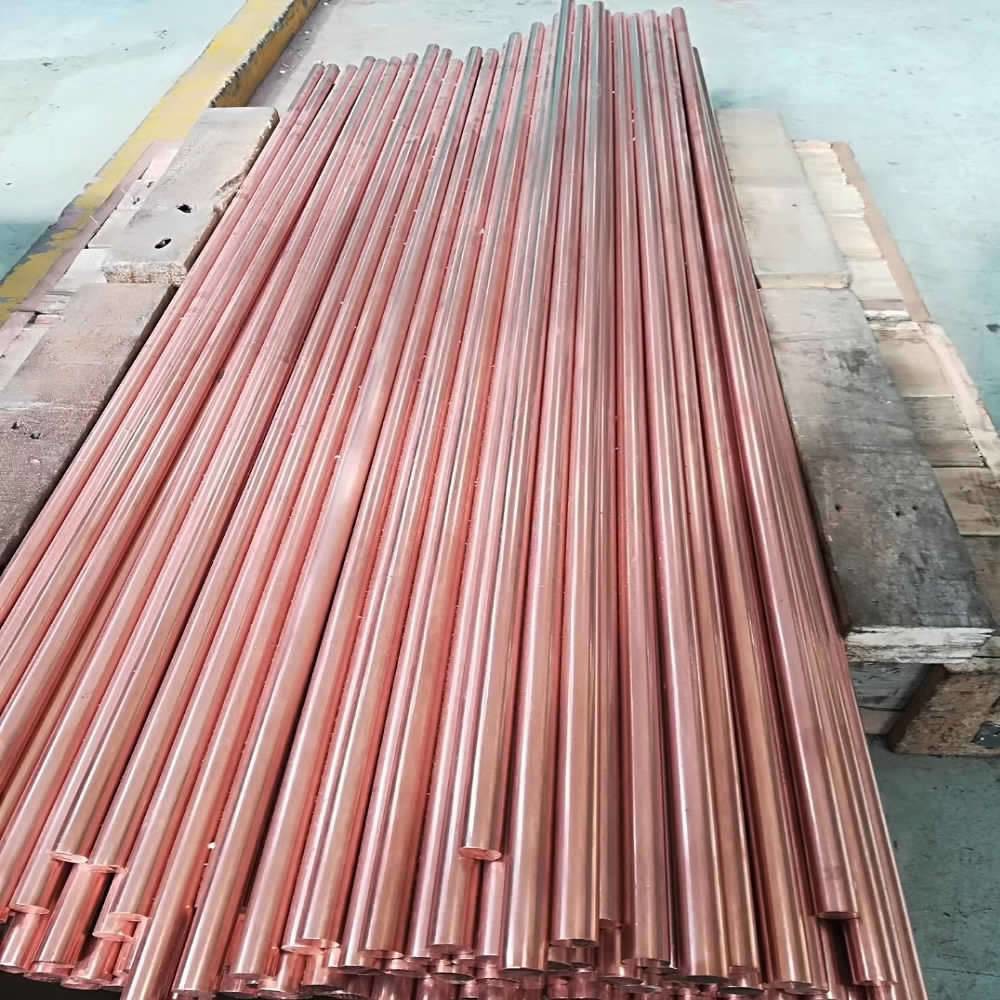

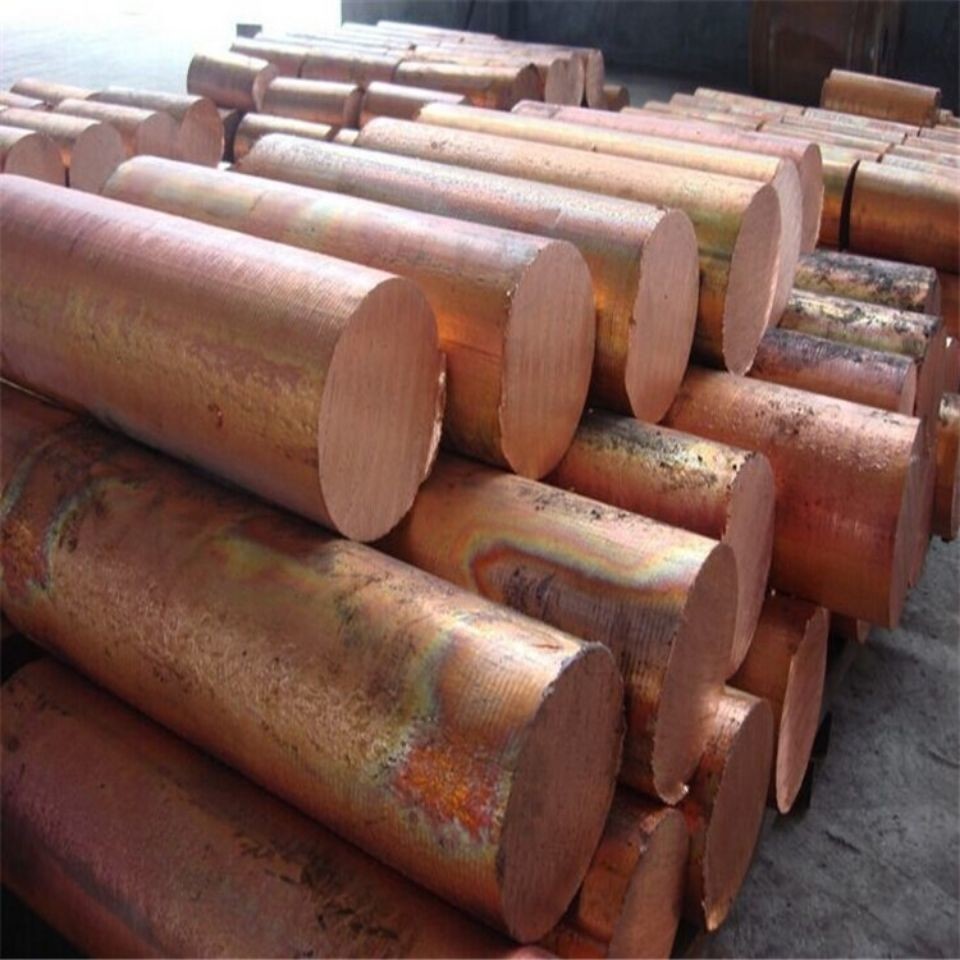

TU1 Grade C10100 Pure Copper Round Bar Stock Rod Oxygen Free CDA102
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | C102 / C10200 |
| Minimum Order Quantity | 400 kgs |
| Price | 7000-8000 USD/Ton |
| Packaging Details | wooden box |
| Delivery Time | 7-15 days |
| Payment Terms | T/T |
| Supply Ability | 50 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Copper Bar | Diameter | 4 - 200mm |
|---|---|---|---|
| Length | Custom Any Length As Request | Standard | GB ASTM EN DIN |
| Loading Port | Shanghai Port | Shape | Round |
| Service | Cutting | Company Type | Factory |
| Other Material | Brass | Packing | Wooden Box |
| Highlight | C10100 copper round bar stock,Oxygen Free copper round bar stock,C10400 copper round rod |
||
Product Description
TU1 Copper Bar Grade C10100 Pure Copper Rod Oxygen Free CDA102 Copper Bars
Specification of our copper products
| Product Name | Copper Bar |
| Material | Copper |
| Standard | ASTM, AISI, JIS, DIN, GB, EN |
| Grade |
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930, C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200, C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000, C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800, C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200
|
| Shape | Flat plate |
| Temper | O-H112; T3-T8; T351-T851 |
| Size | thickness 0.3mm~100mm; Width 50mm~2500mm; Length 1000mm~12000mm |
| Surface | Mill finish, polished, anodizing, brushing, sand blasting, powder coating,etc |
| Payment terms | T/T,L/C,western union, Paypal |
| Price terms | CFR,FOB,CIF,Ex-work,CNF |
| Application | 1)Further making utensil. 2)Solar reflective film 3)The appearance of the building 4)Interior decorating:ceilings,walls,etc. 5)Furniture cabinets 6)Elevator decoraction 7)Signs,nameplate,bags making. 8)Decorated inside and outside the car 9)Household appliances:refrigerators,microwave ovens,audio equipment,etc. 10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc. |
| Package | Standard export seaworthy package or as required. |
| Contact | If you have any question,please feel free to contact me. |
C10200 Oxygen Free Copper (CDA 102)
UNS CDA 102, SAE J461, ASTM B152, ASTM B187, ASTM B272
High Conductivity (OFHC) Copper characteristics are high ductility, high electrical and thermal conductivity, high impact strength, good creep resistance, ease of welding, and low volatility under high vacuum. TYPICAL USES FOR C10200 OXYGEN FREE COPPER: ELECTRICAL: Electrical Conductors, Klystrons, Microwave Tubes, Transistor Components, Lead In Wire, Coaxial Cables, Copper to Glass Seals in Electronic Appliances, Busbars, Bus Conductors, Wave Guides INDUSTRIAL: Tubing, LP Gas Service, Tubing, Medical Gas- Oxygen, Vacuum Seals, Coaxial Tube, Billet Mold Tube, Extrusion Cans for Powder MetallurgySizes Available of C10200 Copper Products
RECTANGLES / FLAT BAR: 1/8" - 2" thick through 1/2" - 8" wideSQUARE BAR: 1/4" - 2" Square
ROUND BAR: 3/16" - 15" Diameter
Chemical Composition of C10200 Copper
| CU | O | |
| Min/Max | 99.95 min | 0.001 |
| Nominals | - | - |
APPLICATIONS of C10100 Copper
• Electrical & Electronic Conductors
• Superconductor matrixes
• Lead-in Wires & Anodes for Vacuum Tubes
• Vacuum Seals & Glass-to-Metal Seals
• Power Substations
• Coaxial cables
• Microwave Tubes & Rectifiers
• Plasma
What Forms is Copper C102 Available at Piping Mart
- Copper C102 Bar
- Copper C102 Bolt
- Copper C102 Pipe
- Copper C102 Screw
- Copper C102 Tubing
- Copper C102 Valves
- Copper C102 Washers
- Copper C102 Flanges
- Copper C102 Fasteners
- Copper C102 Electrodes
- Stud Copper C102 Bolts
- Sheet Copper C102 Plates
- Copper C102 Pipe Fittings
UNS C10200 Copper Mechanical Properties
Copper C10200 has a high ductility and strength-to-weight ratio, making it suitable for various applications. Its tensile strength is greater than 20 ksi, while its yield strength ranges from 10-15 ksi. It also has an elongation rate greater than 40%. The hardness rating for this alloy is 55-65 Rockwell B (RB).
|
Tensile |
Yield |
Elongation |
|||
|---|---|---|---|---|---|
|
O61 |
Soft |
25-35 KSI |
15-25 KSI |
35% min |
|
|
H00 |
1/8 HD |
30-40 KSI |
18-25 KSI |
20% min |
|
|
H01 |
1/4 HD |
35-45 KSI |
N/A |
15% min |
|
|
H02 |
1/2 HD |
40-50 KSI |
N/A |
10% min |
|
|
H03 |
3/4 HD |
45-55 KSI |
N/A |
5% min |
|
|
H04 |
Full HD |
50-60 KSI |
N/A |
1.5% min |
|
|
H08 |
Spring |
60-70 KSI |
N/A |
1.5% min |
