ASTM B280 3/8" Copper Pair Coil Tube Air Conditioner Copper Pipe In Soft Type
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Pure Copper |
| Minimum Order Quantity | 400 kgs |
| Price | 7000-8000 USD/Ton |
| Packaging Details | wooden box |
| Delivery Time | 7-15 days |
| Payment Terms | T/T |
| Supply Ability | 50 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Copper Coil Pipe | Diameter | 1/4" - 1" |
|---|---|---|---|
| Length | Custom Any Length As Request | Standard | GB ASTM EN DIN |
| Loading Port | Shanghai Port | Shape | Round |
| Service | Cutting | Company Type | Factory |
| Other Material | Copper | Packing | Wooden Box |
| Highlight | ASTM B280 copper pipe heating coil,Soft copper pipe heating coil,3 8 inch copper coil tubing |
||
Product Description

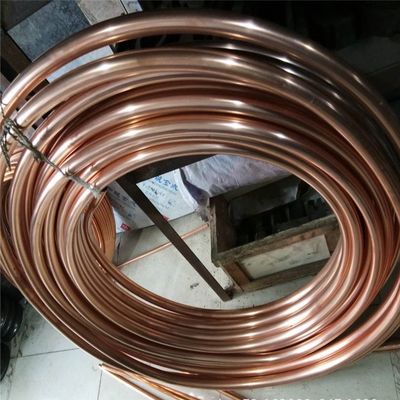

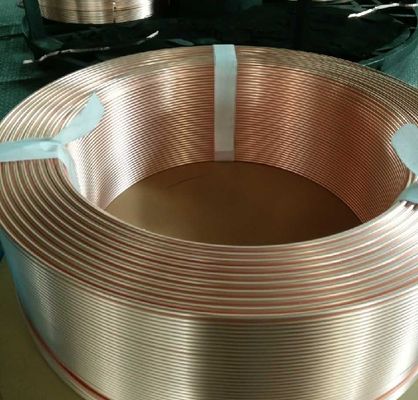

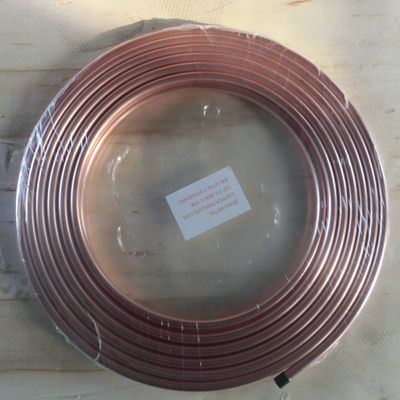

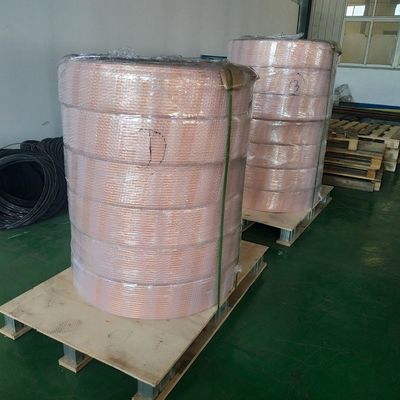

ASTM B280 3/8" Copper Pair Coil Tube Air Conditioner Copper Pipe in Soft Type
Products Specification
| Item Name | copper pipe pancake coil copper tube |
| Standard | GB, ASTM, CDA, BS, DIN, JIS |
| Shape | Round,Coil,etc |
| Length | 15m, 30m,50m or as required |
| OD | 1/4",3/4",5/8",1/2",3/8",5/16" or customized |
| Thickness | 0.6mm,0.7mm,0.8mm,0.9mm,1mm or custmozied |
| Sample | Available |
| Price Term | Ex-work, FOB, CIF, CFR, etc |
| Payment Term | FOB,CIF,CNF,EXW |
| Specification | customized |
| Place of origin | Wuxi , China |
| Application | Electric power industry,air-conditioning,refrigerator,decoration,car industry,radiator,water heater |
More Informations About Copper Pipes
| Material | Copper tube/pipe |
| Standard | ASTM, AISI, JIS, DIN, GB, EN |
| Grade | C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930, C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200, C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000, C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800, C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200 T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1, |
| Shape | Tube |
| Temper | O-H112; T3-T8; T351-T851 |
| Size | thickness 0.3mm~100mm; Width 50mm~2500mm; Length 1000mm~12000mm |
| Surface | Mill finish, polished, anodizing, brushing, sand blasting, powder coating,etc |
Diameter and Weight Informations
| Normal pipe | inch | OD(mm) | Wall thickness(mm) | weight(kg/m) | |
| inch | mm | ||||
| 3/8 | 0.375 | 9.52 | 0.3 | 0.762 | 0.187 |
| 1/2 | 0.5 | 12.7 | 0.035 | 0.889 | 0.295 |
| 5/8 | 0.625 | 15.9 | 0.04 | 1.02 | 0.424 |
| 3/4 | 0.75 | 19.1 | 0.042 | 1.07 | 0.539 |
| 7/8 | 0.875 | 22.3 | 0.045 | 1.14 | 0.677 |
| 1 1/8 | 1.125 | 28.6 | 0.05 | 1.27 | 0.975 |
| 1 3/8 | 1.375 | 34.9 | 0.055 | 1.4 | 1.32 |
| 1 5/8 | 1.625 | 41.3 | 0.06 | 1.52 | 1.7 |
| 2 1/8 | 2.125 | 54 | 0.07 | 1.78 | 2.6 |
| 2 5/8 | 2.625 | 66.7 | 0.08 | 2.03 | 3. 69 |
| 3 1/8 | 3.125 | 79.4 | 0.09 | 2.29 | 4.96 |
| 3 5/8 | 3.625 | 92.1 | 0.1 | 2.54 | 6.38 |
| 4 1/8 | 4.125 | 105 | 0.11 | 2.79 | 8.01 |
FAQ
Q1:What product information must I provide before making a purchase?
Please provide the grade, width, thickness, and surfacetreatment requirements, as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai,Tianjin, Qingdao, and Ningbo ports.
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or based onBL copy or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can I pay you a visit at your factory?
Customers from all around the world are welcome to visit our factory.
Q8:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
Q9. What is your delivery time?
Within 7 working days after receiving your balance payment.
