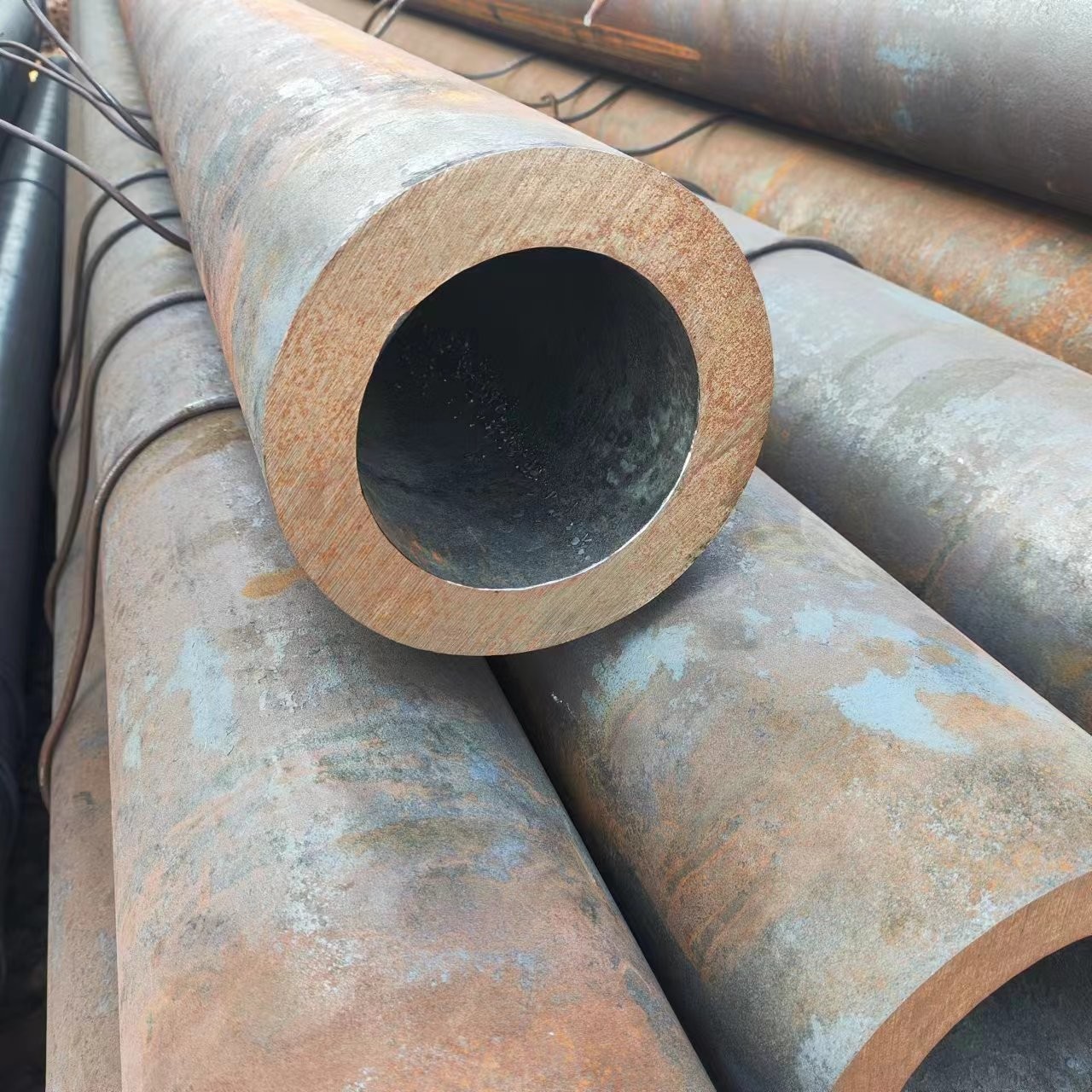

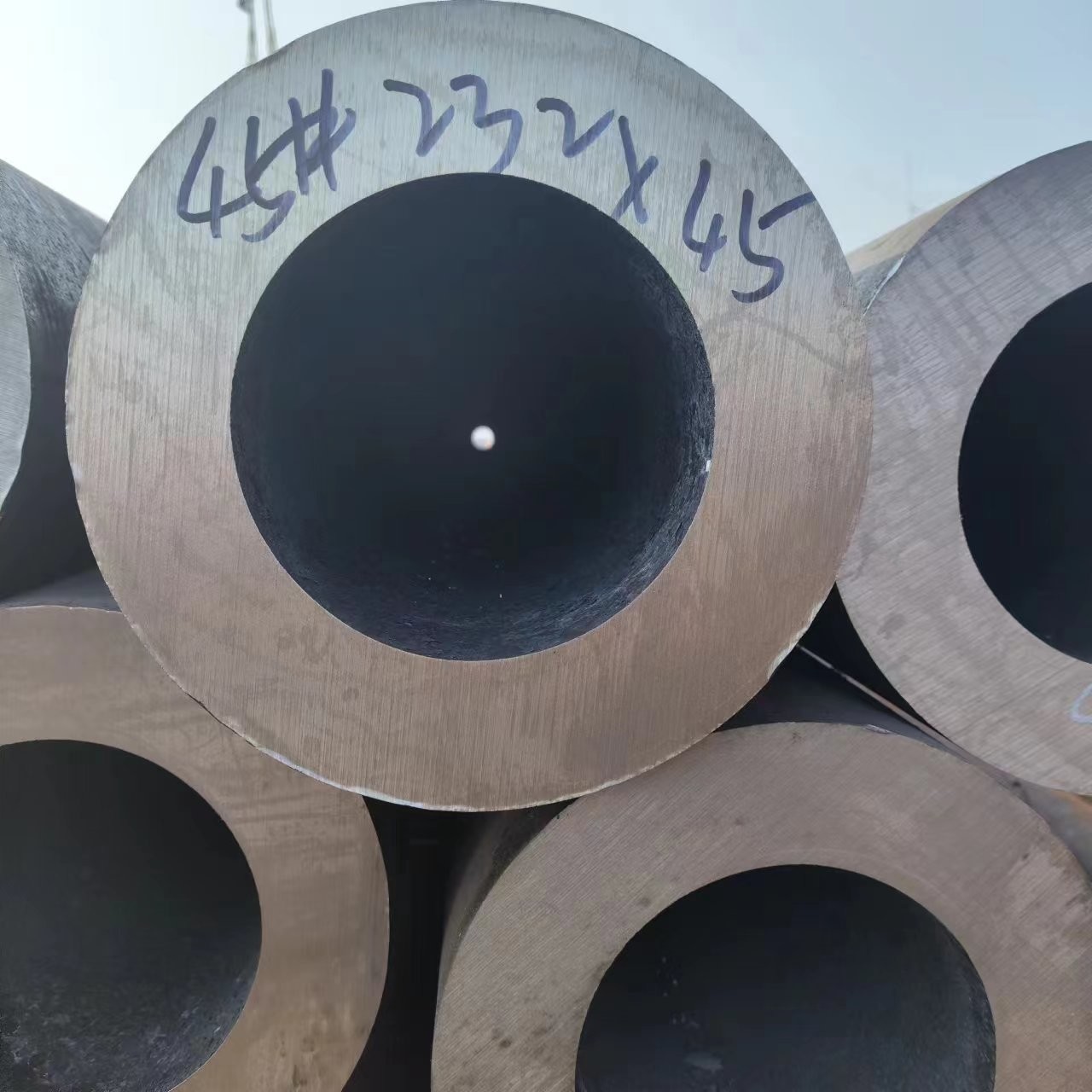

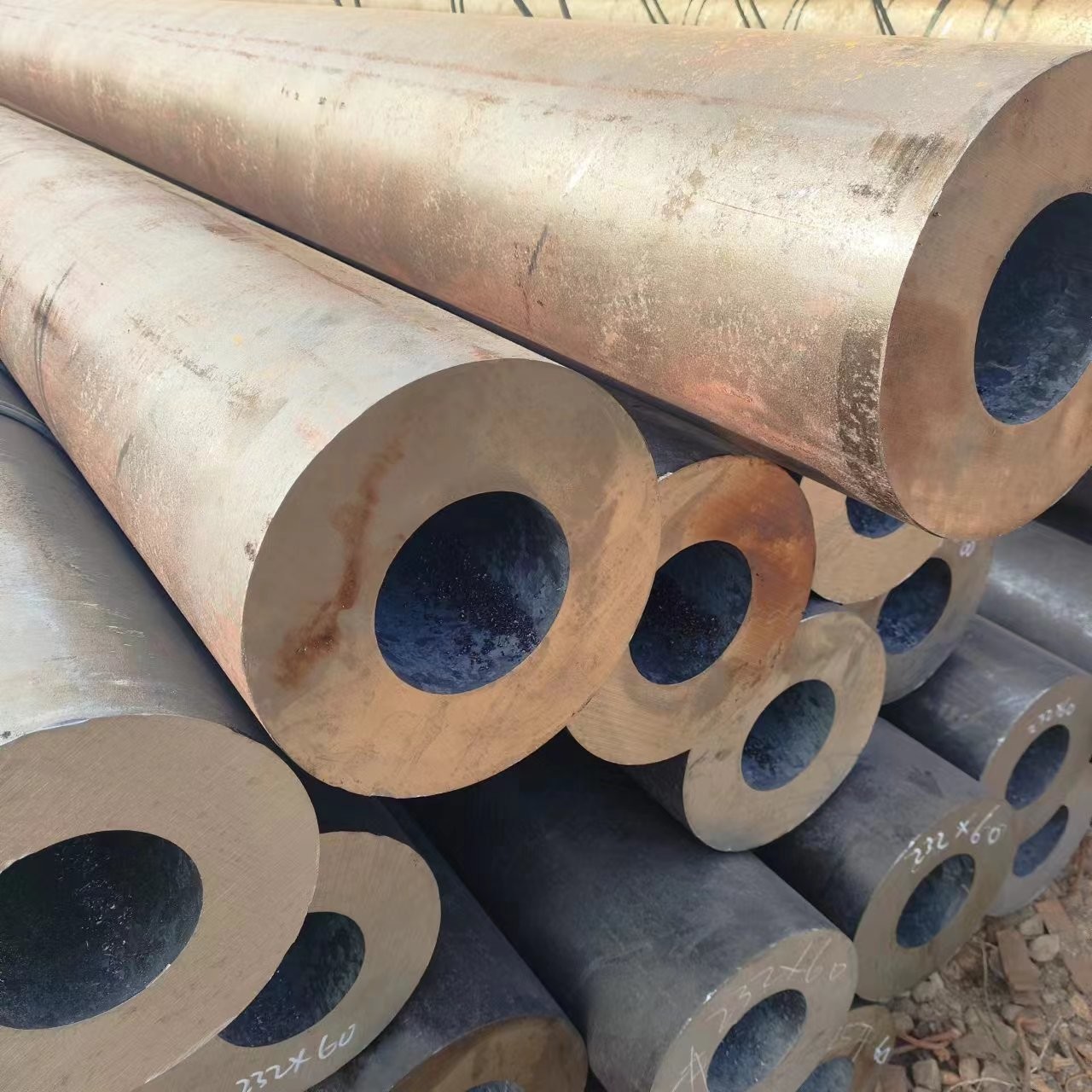

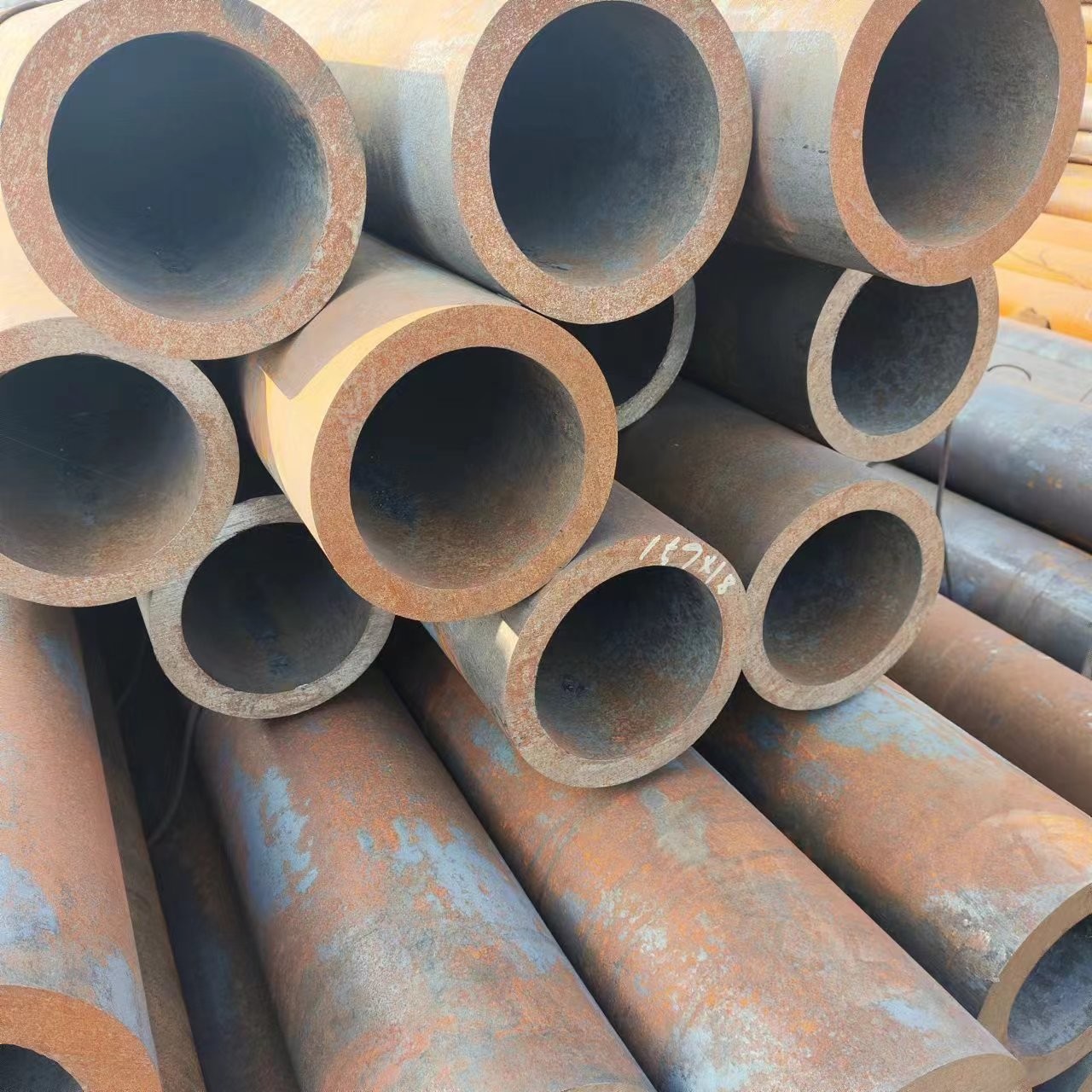

Q345 Steel Q345A Q345B Q345C Q345D Q345E Seamless Steel Pipe / SMLS Pipe
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Carbon Steel , Alloy Steel |
| Minimum Order Quantity | 4 Tons |
| Price | 609 - 820 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 10 days based on the quantity |
| Payment Terms | L/C, Western Union, T/T |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Seamless Steel Pipe | Diameter | DN10 - DN600 |
|---|---|---|---|
| Thickness | 1.0 - 50.0mm | Length | 6-10m Or Cutting As Request |
| Standard | ASTM EN GB DIN | Technique | Hot Rolled |
| Service | Cutting Any Length As Request | MOQ | 2 Ton |
| Highlight | Q345C Seamless Steel Pipe,Q345E Seamless Steel Pipe,Q345A Seamless Steel Pipe |
||
Product Description
Q345 Steel: Q345A Q345B Q345C Q345D Q345E Seamless Steel Pipe / SMLS Pipe
S355J2 Tube Specifications and Thickness
| Name | Hot Rolled Seamless Steel Pipe |
| Surface | Bare,oiled |
| Material | ASTM A106B, ASTM A53B, API 5L Gr.B, ST52, ST37, ST44 SAE1010/1020/1045,S45C/CK45,SCM435,AISI4130/4140 / 4137 |
| MOQ | 5 tons for normal size and material |
| WT | As customer's requests |
| Payment terms | TT deposit + the balanced against BL copy / LC or 100% LC at sight |
| Trade terms | FOB,C&F,CIF,EXW |
| Length | fixed or random,as customer request. |
| End Treatment | Plain(can be beveled, threaded,punch,shrink,extension... ) |
| Lead time | within 7 days from stock with 6m length (stock pipe with our factory name in Chinese),20-25 days for customized pipe according to the qty |
Q345 Steel: Q345A, Q345B, Q345C, Q345D & Q345E
Q345 steel is a Chinese standard low alloy high strength structural steel. The material has a minimum yield strength of 345 MPa (50 ksi), and tensile strength of 470-630 Mpa (68-91 ksi). It has better properties than Q235. According to GB/T 1591 – 2008, Q345 material has 5 quality grades: Q345A, Q345B, Q345C, Q345D and Q345E.
Meaning & Designation
- “Q” is short for Pinyin: “Qu”, which means Yield strength;
- “345” indicates the steel has a minimum value of yield strength 345 MPa for steel diameter/thickness ≤16mm.
- A, B, C, D and E indicate the quality grade.
Properties, Datasheet and Specification
Q345, Q345A, Q345B, Q345C, Q345D and Q345E steel properties, datasheet and specification are listed in the tables below, including chemical composition, physical and machenical properties, etc.
Chemical Composition
Chemical Composition Based on melting analysis.
| Chemical Composition (≤%) | ||||||||||||||||
| Steel Grade | Quality Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Cu | Ti | N | Nb | V | B | Al, ≥ |
| Q345 | Q345A | 0.20 | 0.50 | 1.70 | 0.035 | 0.035 | 0.30 | 0.50 | 0.10 | 0.30 | 0.20 | 0.012 | 0.07 | 0.15 | – | – |
| Q345B | 0.035 | 0.035 | ||||||||||||||
| Q345C | 0.030 | 0.030 | 0.015 | |||||||||||||
| Q345D | 0.18 | 0.030 | 0.025 | |||||||||||||
| Q345E | 0.025 | 0.020 | ||||||||||||||
Notes: The P and S contents of profiles and bars can be increased by 0.005%, and the upper limit of Grade A steel can be 0.0045%.
Q345 Material Mechanical Properties
Q345 material mechanical properties are listed in the table below, including yield strength, tensile strength and elongation.
| Yield Strength, MPa (ksi), ≥ | ||||||||||
| Steel Grade | Quality Grade | t ≤16 | 16< t ≤ 40 | 40 <t ≤ 63 | 63 <t≤ 80 | 80 < t ≤ 100 | 100 < t ≤ 150 | 150 < t ≤ 200 | 200 < t ≤ 250 | 250 < t ≤ 400 |
| Q345 | Q345A | 345 (50) | 335 (49) | 325 (47) | 315 (46) | 305 (44) | 285 (41) | 275 (40) | 265 (38) | – |
| Q345B | ||||||||||
| Q345C | ||||||||||
| Q345D | 265 (38) | |||||||||
| Q345E | ||||||||||
Notes:
- t= Thickness or diameter (mm);
- 1 MPa = 1 N/mm2
| Tensile Strength, MPa (ksi) | |||||
| Grade | Quality Grade | t≤ 100 | 100< t ≤250 | 250< t ≤400 | |
| Q345 | Q345A | 470-630 (68-91) | 450-600 (65-87) | – | |
| Q345B | |||||
| Q345C | |||||
| Q345D | 450-600 (65-87) | ||||
| Q345E | |||||
| Elongation (%, ≥) | |||||||
| Grade | Quality Grade | t≤40 | 40 <t ≤ 63 | 63 < t≤ 100 | 100 <t≤ 150 | 150 < t ≤ 250 | 250 <t ≤ 400 |
| Q345 | Q345A | 20 | 19 | 19 | 18 | 17 | – |
| Q345B | |||||||
| Q345C | 21 | 20 | 20 | 19 | 18 | ||
| Q345D | 17 | ||||||
| Q345E | |||||||
Charpy Impact
Charpy (V-notch) impact test temperature and impact absorption energy (KV2/J).
| Quality | Temperature, °C (°F) | 12≤t≤150 (mm) | 150<t≤250 (mm) | 250<t≤400 (mm) |
| Q345B | 20 (68) | ≥34J | ≥27J | – |
| Q345C | 0 (32) | |||
| Q345D | -20 (-4) | 27J | ||
| Q345E | -40 (-40) |
Physical Properties
Density: 7.85 g/cm3 (0.284 lb/in3)
Melting point: 1450-1530 °C (2640-2800 °F)
Applications
Q345 steel has high strength, excellent weldability, cold & hot workability and certain corrosion resistance. It is widely used in bridges, ships, boilers, pressure vessels, petroleum storage tanks, lifting transport machinery and other high-load welded structural parts.
Q345 Steel Equivalent
Q345 steel: Q345A, Q345B, Q345C, Q345D, Q345E equivalent ASTM, European, German, British, France, Australian, Canadian, Japanese and Indian Standard (For Reference).
Notes: Q345 steel has been replaced by Q355 in the latest version of GB standard “GB/T 1591 – 2018”, the previous version is “GB/T 1591 – 2008”.
| Low Alloy Structural Steel Q345 Equivalent | |||||||||||||||||||
| Chinese | US | European | Australian | Canadian | Indian | Japanese | ISO | ||||||||||||
| Standard | Grade | Standard | Standard | Grade (steel number) | Standard | Grade | Standard | Grade: Imperial (SI) | Standard | Grade | Standard | Grade | Standard | Grade | |||||
| GB/T 1591 – 2008 | Q345A | ASTM A529 Grade 50 [345] ; ASTM A572 Grade 50 [345]; ASTM A588; ASTM A678 Grade A |
|||||||||||||||||
| GBT 1591 – 2008 | Q345B | EN 10025-2; DIN 17100 |
S355, S355JR (1.0045), E355 (1.0060); St52-3 |
AS/NZS 3678 | 350 | CSA G40.20/G40.21 | 50W (350W) | IS 2062 | E350 | JIS G3135 | SPFC 590 | ISO 630-2 | S355C, S355D (S355) | ||||||
| GB1591 – 2008 | Q345C | EN 10025-2; DIN 17100 |
S355J0 (1.0553), E335 (1.0060); St52-3 |
AS/NZS 3678 | 350L0 | CSA G40.20/G40.21 | 50W(350W) | IS2062 | E 350 | JIS G 3135 | SPFC590 | ISO 630-2 | S355D | ||||||
| GB 1591 – 2008 | Q345D | ASTM A656 Grade 50 [345]; ASTM A529 Grade 50 [345] |
EN 10025-2; EN 10025: 1993; DIN 17100 |
S355J0 (1.0553), E335 (1.0060); S355J2G3 (1.0570); St52-3 |
AS/NZS 3678 | 350L20 | CSA G40.20/G40.21 | 50W (350W) | IS 2062 | E350 | JIS G 3135 | SPFC590 | ISO630-2 | S355D | |||||
| GBT 1591 – 2008 | Q345E | ASTM A656/A656M Grade 50 [345]; ASTM A529/A529M Grade 50 [345]; ASTM A808 |
EN 10025-2; EN 10025: 1993 |
S355J2 (1.0553), S355K2 (1.0596), S355J2G4 (1.0577), S355K2G3 (1.0595), S355K2G4 (1.0596) |
AS/NZS 3678 | 350L40 | CSA G40.20/G40.21 | 50W(350W) | JIS G31 | ||||||||||
