Galvanized Steel Pipe Tube DN10 - DN200 With SCH40S ASTM GGB DIN Standard For Scaffold
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Galvanized steel pipe |
| Minimum Order Quantity | 1 Ton |
| Price | 650 - 750 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Glavanized Steel Pipe | Diameter | OD10 - 219mm |
|---|---|---|---|
| Coating | Zinc 40- 270g/m2 | Length | 6m Or As Request |
| Type | Seamleess Pipe / Welded Pipe | Application | Water Pipe, Structure |
| Laoding Port | Shanghai Port | MOQ | 1 Ton |
| Highlight | ASTM GGB Galvanized Steel Pipe Tube,DN200 Galvanized Steel Pipe Tube,SCH40S Galvanized Steel Pipe Tube |
||
Product Description

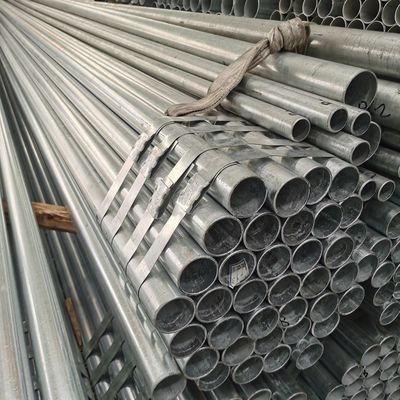

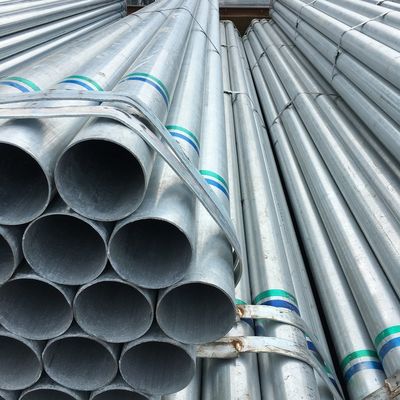

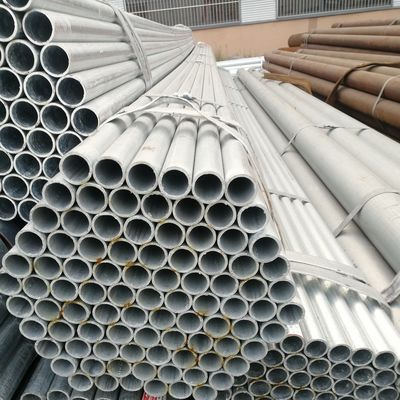

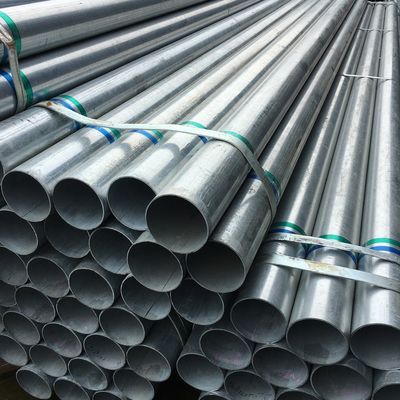

Galvanized Steel Pipe Tube DN10 - DN200 With SCH40S ASTM GB DIN Standard for Scaffold Pipe
| OD | 1/2”-10” (21.3mm-273mm) |
| Wall Thickness | 1.5mm-14mm |
| Length | 1m-16m |
| Steel material | S195GT;S235GT;S355GT; Q195;Q235; Q345 |
| Standard | EN10255; ASTM A53; BS1387:1985 |
| Surface | Hot-dipped Galvanizd/Painted/Oiled |
| Section Shape | Round |
| Delivery |
1) Container 2) Bulk carrier |
| Port of Shipment | Xingang Port,Tianjin, China |
| Payment | L/C, T/T,D/P,O/A |
| Application | Fluid tube, With 100% hydro-test |
| Zinc coating | Normal AVG: 280g/m2(40um), Max.70um |
| Alloy Or Not | Not alloy |
| Special Pipe | No |
| Pipe End Treatment | Plain/Threaded/Grooved/Bevelded |
| Business type | Manufacturer |
Scaffold tubes, also called scaffolding tubes, is the main component of the scaffolding construction system. Scaffolding tube are widely used as a temporary structure to help workers craw and repair building in height. Also scaffolding tubes are frequently be used in formwork and shoring system. The outside diameter is 48.3mm with thickness 3.2 or 4.0mm. There are different grade of scaffolding tube, such as S235, S355. Our factory has more than 15 years experience in Scaffolding tube, we can produce EN39, EN10219, BS1139 and JIS3444 standard tube. All are produced strictly according to the standard. Usually the surface is hot dipped galvanized with zinc coating above 210g/m2, which offers long term corrosion resistance.
All tubes and pies are plain ends, and we have clean ends machines to remove burrs in-line production. Friend steel pipes not only concentrate on the sizes and surface, but also pay attention on the details, which make our pipes are different from others. Any factories can produce pipes and tubes, but not all can provide high quality products.Plain Ends without Burrs
Packing &Shipping:
Package:in bundles by steel strips or bundles with damp-proof package or as your requirement
Delivery Time: Normally 18-20days after T/T or L/C or D/P confrimed.
Our Services:
①Over 10 years professional experience in producing Steel Pipes and Scaffolding
②High quality and service
③Rich experience in doing business with international customers
④Fast Delivery
