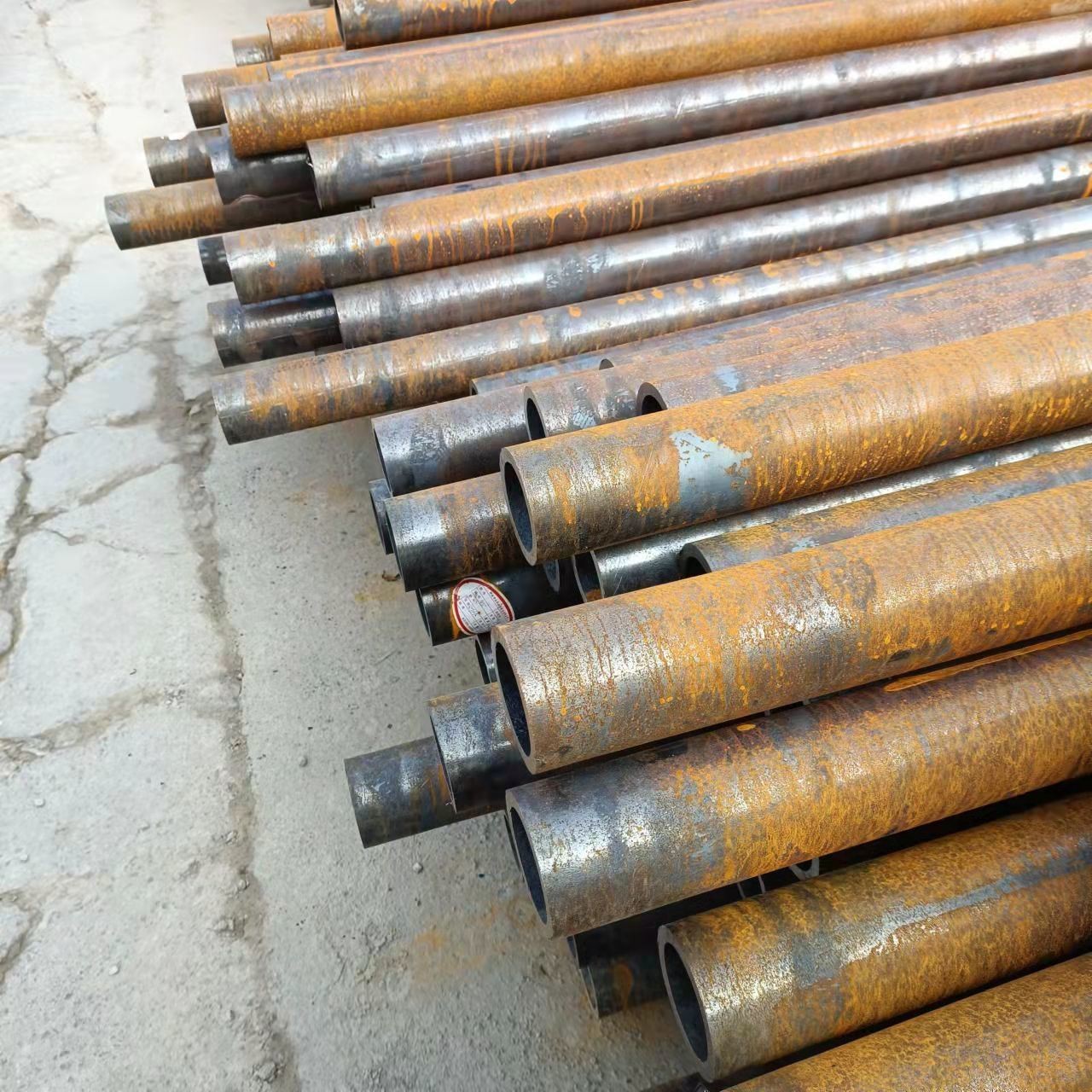

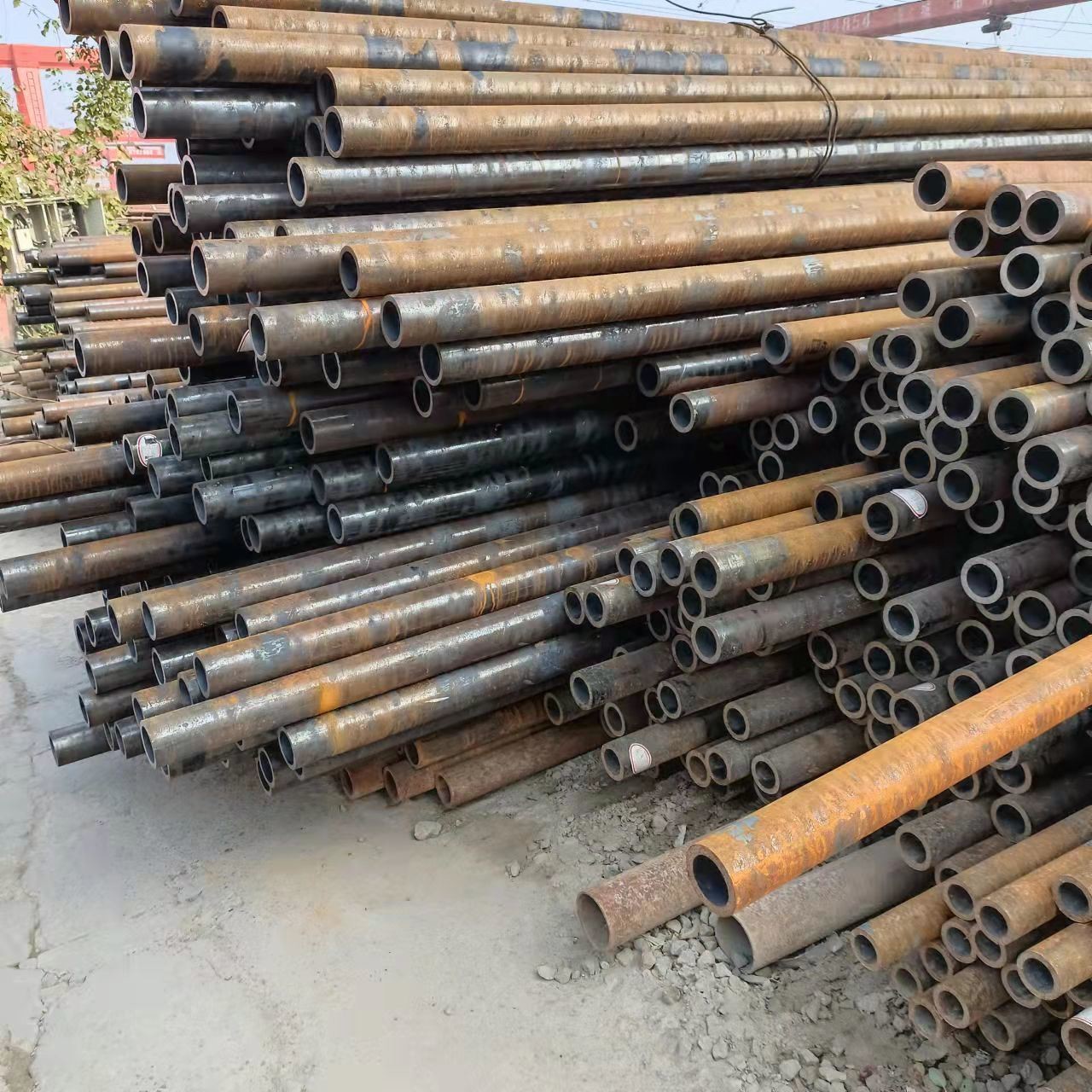

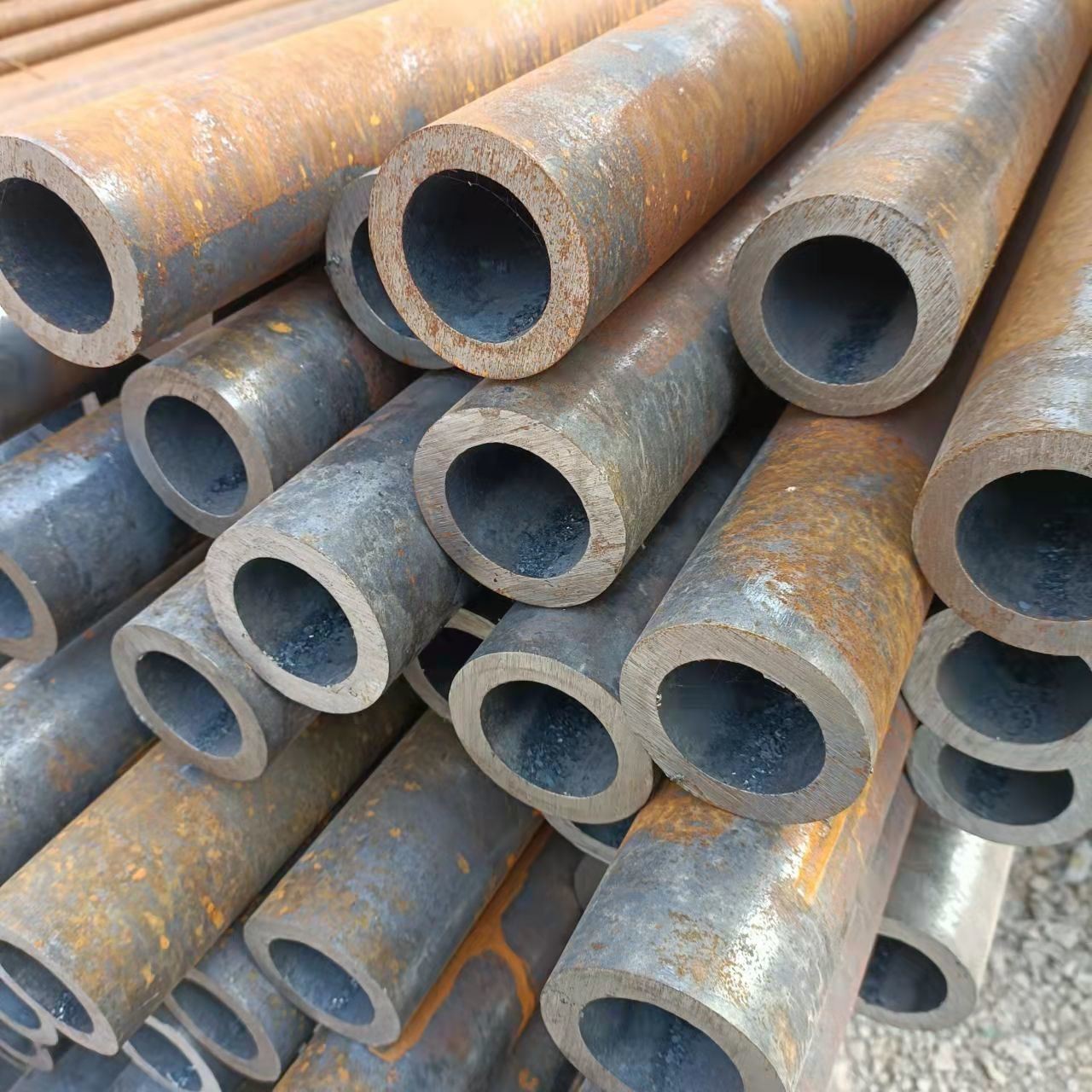

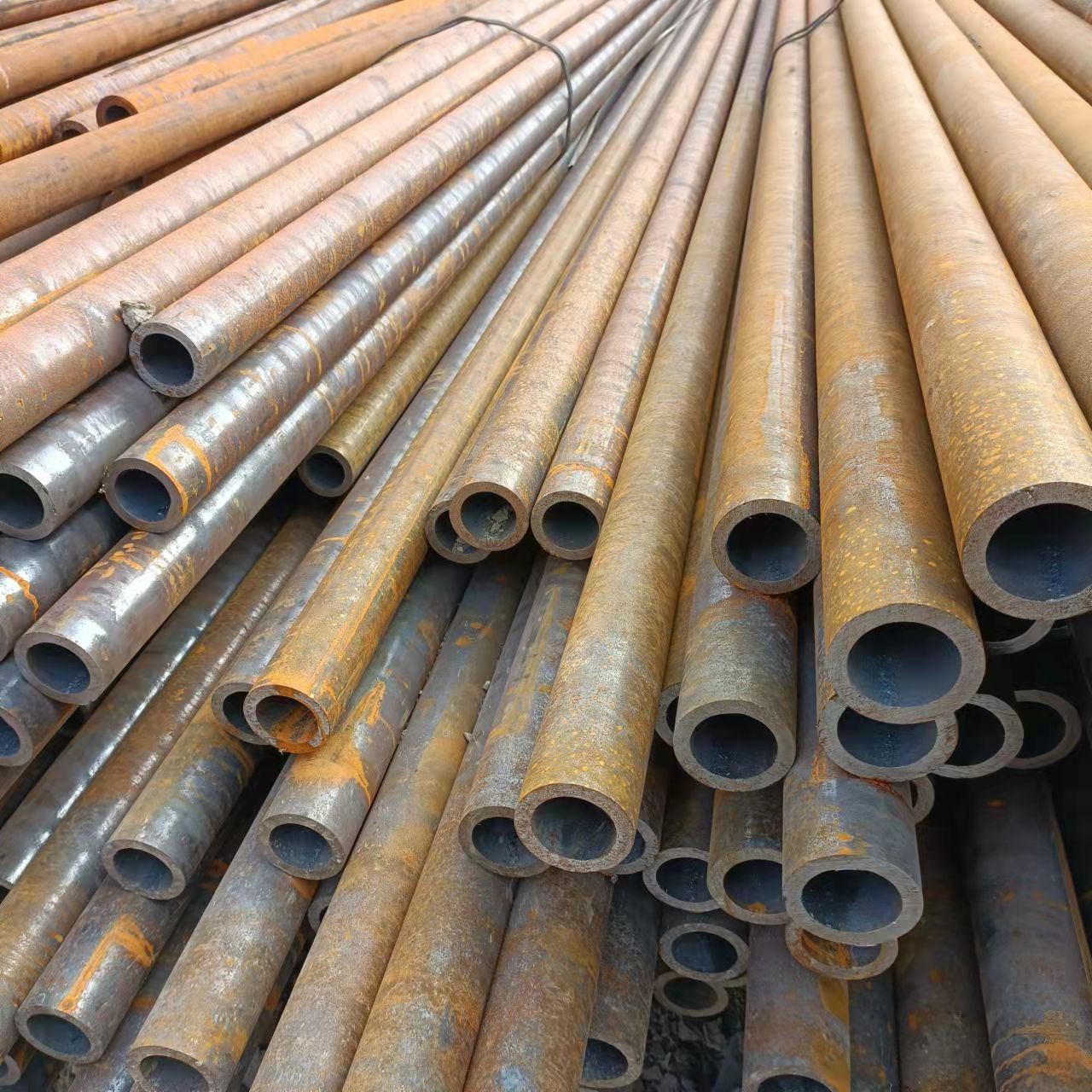

EN 1.5414 Seamless Steel Pipe
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Carbon Steel , Alloy Steel |
| Minimum Order Quantity | 2 Tons |
| Price | 600 - 800 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, Western Union, T/T |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Seamless Steel Pipe | Diameter | DN10 - DN600 |
|---|---|---|---|
| Thickness | 1.0 - 50.0mm | Length | 6-10m Or Cutting As Request |
| Standard | ASTM EN GB DIN | Technique | Hot Rolled |
| Service | Cutting | MOQ | 2 Ton |
| Highlight | EN 1.5414 Seamless Steel Pipe,Seamless Steel Pipe DIN 17175,ASTM alloy steel seamless tubes |
||
Product Description
ASTM A335-P1 Alloy Steel Pipe EN 1.5414 Steel Pipe DIN 17175 Seamless Pipe Heat Resistant Steel
These pipes have a minimum tensile strength of 415 MPa and a minimum Yield Strength of 205 MPa with an elongation of a minimum of 30%/20%. This pipe can be both cold drawn or hot-finished with finishing heat-treated to either isothermal annealed or normalized and tempered.
These pipes are ideal for flanging, bending, etc. under high temperature situations. These pipes are used in industries like oil and gas, boilers, chemical and petrochemical as well as in high temperature pipelines and various engineering applications. These pipes are available in various thicknesses and sizes as per the project’s specifications. The pipes are manufactured in size as per NPS / NB size with dimension standard as per ASME/ANSI B36.10. The ends of these pipes can be supplied in threaded, bevelled or plain ends.
These P1 pipes are alloyed with different elements to improve upon their base physical properties and to create new specialized properties such as heat and corrosion resistance. ASTM A335 P1 pipes combine carbon steel with materials like aluminium, copper or nickel as per the requirements of the project. Carbon is the most important element of the mix. It increases strength, hardness and resistance to wear and abrasion. However, the downside is that it lowers ductility, toughness and machinability, to resolve this Molybdenum is added to the chemical composition of pipes which provides improved ductility, enhances its elastic limit and impact qualities.
Alloy Steel P1 Seamless Pipes Specification
| Size | 1/8NB TO 26NB IN |
|---|---|
| Standards | ASTM A 335 | ASME SA335 |
| Type | Seamless |
| P1 Pipe Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, SCH XXS |
| Form | Round |
| Length | Standard, Custom, Cut length |
We at N-Pipe Solutions Inc. stock a wide range of ASTM A335 Gr. P1 pipes
- Pipes are offered from size ¼” NPS up to 24” NPS, however large-diameter pipes above 24” NPS can also be provided upon clients request.
- Pipes thickness range from SCH 20 up to SCH XXS as per ANSI B36.10 / ASME B36.10
- We can also offer non-standard thickness which is not available in the above dimension standard.
- These pipes can be supplied in a single random length of 4 – 7 Meters long and double random length of 7 – 12 Meters long, if there is a client’s requirement, we can also provide fixed length pipes.
- Pipes can be offered with Mill test certificate as per EN 10204 3.1 and 3.2
- Pipes can be all offered with IBR Form III meeting the Indian boiler requirements.
- Pipes can be supplied with additional specifications NACE MR0175, NACE MR0103, H2 Service, Wet H2S Service, AXN1, AXN2, AXN3, AXN4, UOP1, UOP2, NAC4, NAC6, NAC7.
- Pipes can be offered under any Third-party inspection agency of client choice.
- Alloy Steel ASTM A335 available grades ASTM A335 P5 Alloy Steel Pipe, ASTM A335 P9 Pipe, ASTM A335 P11 Alloy Steel Pipe, A335 P22 Alloy Steel Pipe, A335 P91 Alloy Steel Pipe.
N-Pipe Solutions Inc. is a major supplier of Low Alloy steel Seamless pipes from India. We provide high-quality pipes to clients throughout the world. Pipes are stock in NPS/NB dimension as per ASME B36.10 in various thicknesses as per clients requirements. All pipes supplied by us are duly inspected by our in-house quality control department before being supplied to the client. All pipes are available with complete traceability and mill test certificate as per EN 10204 3.1.
We provide the best competitive prices to our clients backed by quality service.
Scope of ASTM A335 GR. P1
This specification covers nominal wall and minimum wall seamless ferritic alloy-steel pipe intended for high-temperature service. Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding. Selection will depend upon design, service conditions, mechanical properties, and high-temperature characteristics.
Referenced Documents
2.1 ASTM Standards:
A999/A999M Specification for General Requirements for Alloy and Stainless Steel Pipe
E92 Test Methods for Vickers Hardness and Knoop Hardness of Metallic Materials
E213 Practice for Ultrasonic Testing of Metal Pipe and Tubing
E309 Practice for Eddy-Current Examination of Steel Tubular Products Using Magnetic Saturation
E381 Method of Macroetch Testing Steel Bars, Billets, Blooms, and Forgings
E527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)
E570 Practice for Flux Leakage Examination of Ferromagnetic Steel Tubular Products
2.2 ASME Standard:
B36.10M Welded and Seamless Wrought Steel Pipe
Ordering Information
Orders for material under this specification should include the following, as required, to describe the desired material adequately:
- Quantity (feet, metres, or number of lengths),
- Name of material (seamless alloy steel pipe),
- Grade (Table 1),
- Manufacture (hot-finished or cold-drawn),
- Size using one of the following:
• NPS and schedule number,
• Outside diameter and nominal wall thickness,
• Outside diameter and minimum wall thickness,
• Inside diameter and nominal wall thickness, and
• Inside diameter and minimum wall thickness. - Length (specific or random),
- End finish (Ends Section of Specification A999/A999M)
General Requirements
Material furnished to this specification shall conform to the applicable requirements of the current edition of Specification A999/A999M, unless otherwise provided herein
Heat Treatment:
All pipes shall be reheated for heat treatment and heat-treated by the requirements of Table 2.
TABLE 2 Heat Treatment Requirements A
| Grade | Heat Treat Type | Normalizing Temperature, min or range °F [°C] | Cooling Media | Subcritical Annealing or Tempering Temperature, min or range °F [°C] |
|---|---|---|---|---|
| P1 | full or isothermal anneal or | -- | -- | -- |
| normalize and temper or | -- | -- | 1200 [650] | |
| subcritical anneal | -- | -- | 1200–1300 [650–705] |
A Where ellipses (--) appear in this table there is no requirement.
Chemical Composition of ASTM A335 Gr. P1 Pipes
| Grade | UNS Designation A | Carbon | Manganese | Phosphorus, max | Sulfur, max | Silicon | Chromium | Molybdenum | Others |
|---|---|---|---|---|---|---|---|---|---|
| P1 | K11522 | 0.10–0.20 | 0.30–0.80 | 0.025 | 0.025 | 0.10–0.50 | -- | 0.44–0.65 | -- |
A New designation established in accordance with Practice E527 and SAE J1086, Practice for Numbering Metals and Alloys (UNS).
D Applies to both heat and product analyses.
Mechanical properties of ASTM A335 Gr. P1 Pipes
| Grade | Tensile strength, min: | Yield strength, min: | Elongation Requirements | |||
|---|---|---|---|---|---|---|
| KSI | MPa | KSI | MPa | Longitudinal | Transverse | |
| P1 | 55 | 380 | 30 | 205 | 30 | 20 |
Permissible Variations in Diameter
1) For pipe ordered to NPS [DN] or outside diameter, variations in outside diameter shall not exceed those specified in Table 6.
2) For pipe ordered to inside diameter, the inside diameter shall not vary more than +/- 1 % from the specified inside diameter.
| NPC [DN] Designator | Over | Under | ||
|---|---|---|---|---|
| in. | mm | in. | mm | |
| 1/2 to 1 1/2 [6 to 40],incl. | 1/64 (0.015) | 0.40 | 1/64 (0.015) | 0.40 |
| Over 1/2 to 4 [40 to 100],incl. | 1/32 (0.031) | 0.79 | 1/32 (0.031) | 0.79 |
| Over 4 to 8 [100 to 200],incl. | 1/16 (0.031) | 0.79 | 1/16 (0.031) | 0.79 |
| Over 8 to 12 [200 to 300],incl. | 3/32 (0.031) | 0.79 | 1/32 (0.031) | 0.79 |
| Over 12 [300] | ± 1% of specified outside diameter | |||
Permissible Variations in Wall Thickness
In addition to the implicit limitation of wall thickness for pipe imposed by the limitation on weight in Specification A999/A999M, the wall thickness for pipe at any point shall be within the tolerances specified in Table 7. The minimum wall thickness and outside diameter for inspection for compliance with this requirement for pipe ordered by NPS [DN] and schedule number is shown in ASME B36.10M.
| NPS [DN] Designator | Tolerance, % form Specified | |
|---|---|---|
| Over | Under | |
| 1/8 to 2 1/2 [6 to 65] incl., all t/D ratios A | 20.0 | 12.5 |
| Above 2 1/2[65], t/D<=5%A | 22.5 | 12.5 |
| Above 2 1/2[65], t/D>5%A | 15.0 | 12.5 |
A t= Specified Wall Thikness; D=Specified Outer Diameter.
Hydrostatic test
The pipes need to be Hydro tested as per ASTM A530.
Mechanical Tests Required
Transverse or Longitudinal Tension Test, Hardness Test, and Flattening or Bend Test
- For material heat treated in a batch-type furnace, tests shall be made on 5 % of the pipe from each treated lot. For small lots, at least 1 pipe shall be tested.
- For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5 % of the lot, but in no case less than 2 pipe.
- Unless otherwise specified, the flattening test or bend test shall be chosen at the manufacturer’s option.
Certification
Certification and test reports, as described in Section 25 of Specification A999/A999M, are required.
Marking on pipes
16.1 In addition to the marking prescribed in Specification A999/A999M, the marking shall include the length, the schedule number, if the pipe is ordered to a schedule number, and the heat number or manufacturer’s number by which the heat can be identified. An additional symbol “S”, if the pipe conforms to any of the Supplementary Requirements S1 to S6, The marking may be by stenciling, stamping, or rolling at manufacture’s option.
Furthermore, the marking designated in below table to indicate the test method(s) shall be included.
