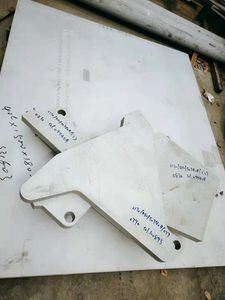

Corrosion Resistant Inconel 625 Nickel Alloy Plate with High Strength and Hot Rolled Finish for Alkali Industry

인증	AISI, ASTM
최소 주문 수량	50kg
가격	US $12.35-14.95 / k

제품 상세 정보

모델 번호.	인코넬 625	모양	평평한
기술	열간압연	표면 처리	우아한
사양	12202440, 15003000, 15006000, 20006000mm	생산능력	500000kg
밀도	8.44 g/cm3	비열	427J/kg-°K(0~100°C)
탄성 계수	207.5 GPa	열전도율	10.8W/m-°K
용융 범위	1290 - 1350°C	전기 저항력	210°C에서 128.9 마이크로옴-cm
항복 강도	448MPa	최대인장강도	862MPa
연장	50%
강조하다	Corrosion Resistant Inconel 625 Plate , High Strength Nickel Alloy Plate , Hot Rolled Alloy 625 Plate

메시지를 남겨주세요

제품 설명

Inconel 625 Alloy 625 DIN2.4856 Plate & Sheet

Alloy 625 is an austenitic nickel-chromium-molybdenum-niobium alloy offering exceptional corrosion resistance combined with high strength from cryogenic temperatures to 1800°F (982°C). The alloy's strength comes from solid-solution hardening by molybdenum and niobium, eliminating the need for precipitation-hardening treatments.

Key Properties

Outstanding corrosion resistance in severe operating environments
Resistance to oxidation and carburization in high-temperature service
Immunity to chloride stress corrosion cracking
Resistance to pitting, crevice corrosion, and intergranular attack
Easy welding and fabrication using standard shop practices

Industry Applications

Aerospace: Bellows, expansion joints, ducting systems, jet engine exhaust systems
Air Pollution Control: Chimney liners, dampers, flue gas desulfurization components
Chemical Processing: Equipment handling oxidizing and reducing acids
Marine Service: Steam line bellows, Navy ship exhaust systems
Nuclear Industry: Reactor core components, waste reprocessing equipment
Offshore Oil & Gas: Waste flare gas stacks, piping systems, riser sheathing
Waste Treatment: Waste incineration components

Standards Compliance

ASTM: B 443
ASME: SB 443
AMS: 5599

Chemical Composition

Element	Content (%)	Element	Content (%)
Nickel	58.0 min.	Silicon	0.50
Chromium	20.0-23.0	Phosphorus	0.015
Molybdenum	8.0-10.0	Sulfur	0.015
Iron	5.0	Aluminum	0.40
Niobium + Tantalum	3.15-4.15	Titanium	0.40
Carbon	0.10	Cobalt	1.0
Manganese	0.50

Physical Properties

Property	Imperial	Metric
Density	0.305 lbs/in³	8.44 g/cm³
Specific Heat	0.102 BTU/lb-°F (32-212°F)	427 J/kg-°K (0-100°C)
Modulus of Elasticity	30.1 x 10⁶ psi	207.5 GPa
Thermal Conductivity	75 BTU/hr/ft²/ft/°F	10.8 W/m-°K
Melting Range	2350 - 2460°F	1290 - 1350°C
Electrical Resistivity	50.8 Microhm-in at 70°C	128.9 Microhm-cm at 210°C

Mechanical Properties at 68°F (20°C)

Yield Strength (0.2% Offset)	Ultimate Tensile Strength	Elongation in 2 in.	Hardness
65,000 psi (448 MPa) min.	125,000 psi (862 MPa) min.	50% min.	200 Brinell max.

Corrosion Resistance Performance

Alloy 625 demonstrates excellent resistance in various corrosive environments including mineral acids (hydrochloric, nitric, phosphoric, sulfuric), alkalis, and organic acids under both oxidizing and reducing conditions.

Fabrication & Processing

Hot Forming

Temperature range: 1650 - 2150°F (900 - 1177°C)

Cold Forming

Best performed in annealed condition with higher work hardening rates than austenitic stainless steels

Welding

Compatible with GTAW (TIG), PLASMA, GMAW (MIG/MAG), SAW and SMAW (MMA) processes

Machining

Recommended in annealed condition with low cutting speeds and adequate cut depth to avoid work-hardened zones
