CD4MCU Super Stainless Steel Round Bar Hot Rolled Nickel Alloy Bar Diameter 10-350mm

Certification	ISO, ASTM, GB, EN
Quantité de commande min	100kg

Détails sur le produit

Numéro de modèle.	CD4MCU	Forme	Rond
Technique	Laminé à chaud	Traitement de surface	marinage
Longueur	1m 2m ou coupe personnalisée n'importe quelle longueur	Traitement	Découpe, Polissage
Plage de diamètre	φ10mm - φ350mm	Composition chimique C	≤0,04 %
Composition chimique cr	24,5-26,5%	Composition chimique Ni	4,75-6,00%
Composition chimique MO	1,75-2,25%	Composition chimique Cu	2,75-3,25%
Résistance à la traction	750-1000 MPa	Limite d'élasticité	≥ 550 MPa
Dureté	≤290 HB
Mettre en évidence	CD4MCU Stainless Steel Round Bar , Diameter 10-350mm Nickel Alloy Bar , Hot Rolled CD4MCU Round Rod

Laisser un message

Description de produit

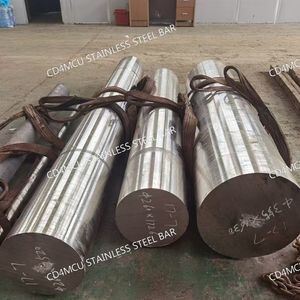

CD4MCU Super Stainless Steel Round Bar / Rod

Hot rolled steel bars available in diameters from 10mm to 350mm, manufactured to meet industrial standards for demanding applications.

Product Specifications

Product Name	Stainless Steel Round Bar
Grade	CD4MCU
Diameter Range	φ10mm - φ350mm
Length	6.1m per piece or custom cutting available
Surface Finish	Pickling finishing, bright finishing
Available Grades	304, 304L, 309S, 310S, 310H, 316L, 316Ti, 316H, 317L, 321, 329, 347, 410, 420, 430F, 431, 440A/B/C, 2205, 2507, 904L, 254SMO, 253MA, CD4MCU, XM-19, 17-4PH, 15-5PH, 17-7PH, C276, 600, 601, 625, 718, 800, 800H, 825, 926, etc.
Standards	ASTM, JIS, GB, DIN EN
Services	Cutting
Other Shapes	Square, Flat, Hexagonal, Round, etc.
Loading Port	Shanghai Port
Minimum Order Quantity	500 kg

Material Description

CD4MCU is a duplex (ferritic-austenitic) stainless steel known for its high strength, excellent corrosion resistance in chloride environments, and good wear resistance. The balanced microstructure of austenite and ferrite, combined with copper and molybdenum additions, provides enhanced performance in aggressive industrial environments.

Chemical Composition (Typical %)

Carbon (C): ≤0.04
Chromium (Cr): 24.5-26.5
Nickel (Ni): 4.75-6.00
Molybdenum (Mo): 1.75-2.25
Copper (Cu): 2.75-3.25
Nitrogen (N): 0.10-0.25
Iron (Fe): Balance

Mechanical Properties

Tensile Strength: 750-1000 MPa
Yield Strength: ≥550 MPa
Elongation: ≥15%
Hardness: ≤290 HB

Physical Properties

Density: ~7.8 g/cm³
Melting Point: ~1420-1460°C

Material Standards

ASTM A995/A995M (Castings for pressure-containing parts)
ASTM A890 (Similar duplex stainless steel castings)
UNS J93370 (Unified Numbering System designation)

Key Features

Superior corrosion resistance against pitting, crevice corrosion, and stress corrosion cracking in chloride-rich environments
High strength with nearly double the yield strength of standard austenitic steels like 316L
Excellent wear and erosion resistance for abrasive conditions
Good weldability with proper techniques including low heat input and post-weld annealing

Similar Grades

F51 (1.4462) / 2205: Lower copper content, widely used duplex steel
F55 (1.4501) / 2507: Super duplex with higher chromium, molybdenum, and nickel
CD3MN (F53): Another duplex grade without copper

Industrial Applications

Oil & Gas: Subsea components, valves, pumps
Chemical Processing: Reactors, heat exchangers, piping systems
Marine Engineering: Propeller shafts, seawater systems
Power Plants: Flue gas desulfurization (FGD) systems
Pulp & Paper Industry: Bleaching equipment and processing machinery
