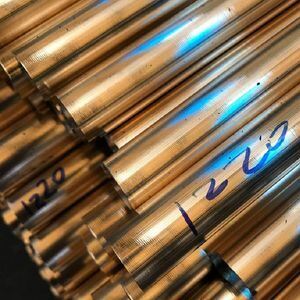

CuZn36 Alloy Brass Round Bar ASTM Standard 6m Length for Industrial Applications
Product Details
| Model NO. | CuZn36 | Shape | Round |
|---|---|---|---|
| Diameter | 4 - 200mm | Other Shape | Hexagonal, Flat |
| Density | 8.5g/cm3 | Hardness | 1/16 Hard,1/8 Hard,3/8 Hard,1/4 Hard,1/2hard,full Hard,soft |
| Length | 500-6000mm | Chemical Composition | Cu: 63.00-68.50%, Fe Max: 0.07%, Pb Max: 0.09%, Zn: Rest |
| Tensile Strength | 48 [331] Ksi [MPa] | Yield Strength | 116 [110] Ksi [MPa] |
| Elongation | 65% | Shear Strength | 34 [234] Ksi [MPa] |
| Thermal Conductivity | 120 W/m-K | Poisson's Ratio | 0.31 |
| Elastic Modulus | 110 GPa | ||
| Highlight | CuZn36 Alloy Brass Round Bar,ASTM Standard Brass Rod,6m Length Brass Shaft |
||
Product Description
C27000 Brass Round Bar Specifications
Product Overview
CuZn36 / 2.0336 / C27000 Brass Round Bar available in 2-6 meter lengths, manufactured to ASTM and EN standards.
Product Types: Brass Bar, Brass Rod, Brass Shaft, Brass Stick
Standards: ASTM, AISI, EN, BS, JIS, GB/T, BSI, AS/NZS, ISO
Available Materials: H96, H90, H85, H80, H70, H68, H65, H63, H62, H60, C21000, C22000, C23000, C24000, C26000, C26800, C27000, C27200, C28000, C35000
Surface Finish: Mill, polished, bright, oiled, or as required
Density: 8.5 g/cm³
Diameter Range: 1-200mm
Hardness Options: 1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2 hard, full hard, soft
Shapes: Square, Rectangular, Round
Length: 500-6000mm, or as required
Standards: ASTM, AISI, EN, BS, JIS, GB/T, BSI, AS/NZS, ISO
Available Materials: H96, H90, H85, H80, H70, H68, H65, H63, H62, H60, C21000, C22000, C23000, C24000, C26000, C26800, C27000, C27200, C28000, C35000
Surface Finish: Mill, polished, bright, oiled, or as required
Density: 8.5 g/cm³
Diameter Range: 1-200mm
Hardness Options: 1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2 hard, full hard, soft
Shapes: Square, Rectangular, Round
Length: 500-6000mm, or as required
Packaging & Shipping
Packaging: Standard sea-worthy package, fixed by belt then loaded into fumigated wooden box
Container Sizes:
- 20GP: 2.352m (width) × 2.385m (height) × 5.90m (inside length)
- 40GP: 2.352m (width) × 2.385m (height) × 11.8m (inside length)
- 40HQ: 2.352m (width) × 2.69m (width) × 5.90m (inside length)
Export Regions: Global coverage including Americas, Europe, Asia, Middle East, Australia
Ports of Shipment: Tianjin Xingang, Qingdao, Shanghai, Ningbo, Guangzhou
Container Sizes:
- 20GP: 2.352m (width) × 2.385m (height) × 5.90m (inside length)
- 40GP: 2.352m (width) × 2.385m (height) × 11.8m (inside length)
- 40HQ: 2.352m (width) × 2.69m (width) × 5.90m (inside length)
Export Regions: Global coverage including Americas, Europe, Asia, Middle East, Australia
Ports of Shipment: Tianjin Xingang, Qingdao, Shanghai, Ningbo, Guangzhou
Material Properties
Chemical Composition (%) - C27000 Brass
| Material | Cu | Fe, max | Pb, max | Zn |
|---|---|---|---|---|
| C27000 | 63.00-68.50 | 0.07 | 0.09 | Rest |
Mechanical Properties
| Tensile Strength, ksi [MPa], min | Yield Strength, ksi [MPa], min | Elongation (%), min | Shear Strength, ksi [MPa] |
|---|---|---|---|
| 48 [331] | 116 [110] | 65 | 34 [234] |
Physical Properties
| Density | Thermal Expansion | Thermal Conductivity | Poisson's Ratio | Elastic Modulus |
|---|---|---|---|---|
| 8.1 g/cm³ | 0 µm/m-K | 120 W/m-K | 0.31 | 110 GPa |
Equivalent Grades
| ASTM | BS | EN | JIS | DIN | ISO | IS |
|---|---|---|---|---|---|---|
| C27000 | CZ107 | CW507L | H3250(92) C2700 BE | 2.0335 | CuZn36 | IS 2704 CuZn35 |
Key Features
- High flexibility and excellent cold workability
- Good hot formability and high durability
- Superior corrosion resistance
- Unusual wear resistance
- High property levels and yield strength
- High hardness values
Applications
- Aviation, aerospace, and shipbuilding industries
- Electrical and industrial equipment
- Oil and gas pipelines
- Chemical processing plants
- Power generation facilities
- Pulp and paper industry
- Energy industry applications
- Dairy and food processing equipment
