CuZn33 Alloy Brass Round Bar in 6m Length Brass Copper Rod with Corrosion Resistance
Product Details
| Model NO. | CuZn33 | Shape | Round |
|---|---|---|---|
| Color | Yellow | Length | 4-6m |
| Diameter | 4-200mm | Density | 8.5g/cm3 |
| Hardness | 1/16 Hard,1/8 Hard,3/8 Hard,1/4 Hard,1/2hard,full Hard,soft | Material | H96,H90,H85,H80,H70,H68,H65,H63,H62,H60,C21000,C22000,C23000,C24000,C26000,C26800,C27000,C27200,C28000,C35000 |
| Surface-mount | Mill,polished,bright,oiled | Chemical Composition Cu | 63.5-68.0 |
| Chemical Composition Pb | 0.03 | Chemical Composition Fe | 0.1 |
| Chemical Composition Ni | 0.5 | Chemical Composition Zn | Rest |
| Chemical Composition Others | 0.3 | ||
| Highlight | CuZn33 Alloy Brass Round Bar,6m Length Brass Copper Rod,Corrosion Resistant Brass Bar |
||
Product Description
Cuzn33 / C26800 / Cw506L Brass Round Bar in 6m Length Brass Copper Rod
Product Specifications
| Product | Brass Bar, Brass Rod, Brass Shaft, Brass Stick |
| Standard | ASTM, AISI, EN, BS, JIS, GB/T, BSI, AS/NZS, ISO, etc. |
| Material | H96, H90, H85, H80, H70, H68, H65, H63, H62, H60, C21000, C22000, C23000, C24000, C26000, C26800, C27000, C27200, C28000, C35000, etc. Or as required |
| Surface Finish | Mill, polished, bright, oiled, or as required |
| Density | 8.5g/cm³ |
| Diameters | 1-200mm |
| Hardness | 1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2 hard, full hard, soft, etc. |
| Shape | Square, Rectangular, Round |
| Length | 500-6000mm, or as required |
| Package | Standard Sea-worthy package, fixed by belt then loaded into fumigated wooden box |
Applications
- Widely used in aviation, aerospace, ships
- Electrical and industrial industry
- Unusual wear resistance and corrosion resistance
- High property levels
- High yield strength
- High hardness values
Container Specifications
| 20GP | 2.352m (width) × 2.385m (height) × 5.90m (inside length) |
| 40GP | 2.352m (width) × 2.385m (height) × 11.8m (inside length) |
| 40HQ | 2.352m (width) × 2.69m (width) × 5.90m (inside length) |
Export Regions
America, Canada, Japan, England, Saudi Arab, India, Singapore, Korea, Australia, Brazil, Argentina, Mexico, Russia, Turkey, Greece, France, Germany, Spain
Ports of Shipment
Tianjin Xingang port, Qingdao port, Shanghai port, Ningbo port, Guangzhou port, etc.
Material Description
Equivalent Material Names for C26800 Brass Bar
GB-H65, ISO-CuZn35, ASTM-C26800, JIS-C2680, BS-Z107, DIN-CuZn36
C26800 Brass Bar offers excellent mechanical properties and machinability in both hot and cold pressure processing. This material is widely used for structural components such as bushings and gaskets. Tin brass materials provide high corrosion resistance, making them ideal for corrosion-resistant parts in shipbuilding, vapor, and oil industrial applications.
Available production sizes: Thickness - 0.05mm to 60mm; Width - Up to 3000mm; Length - Up to 6000mm.
Chemical Composition for C26800 Brass Bar
| Grade | Cu | Pb | Fe | Ni | Zn | Others |
|---|---|---|---|---|---|---|
| H65 | 63.5-68.0 | 0.03 | 0.1 | 0.5 | Rest | 0.3 |
Equivalent Grades in Different Standards
| GB | ISO | ASTM | JIS | BS | DIN |
|---|---|---|---|---|---|
| H59 | CuZn41 | C28000 | C2800 | CZ109 | CuZn39 |
| H62 | CuZn38 | C27400 | C2740 | -- | CuZn40 |
| H65 | CuZn35 | C26800 | C2680 | CZ107 | CuZn36 |
| H68 | CuZn32 | C26000 | C2600 | -- | CuZn33 |
| H70 | CuZn30 | C26000 | C2600 | CZ106 | CuZn30 |
| H80 | CuZn20 | C24000 | C2400 | CZ103 | CuZn20 |
| H85 | CuZn15 | C23000 | C2300 | CZ102 | CuZn15 |
| H90 | -- | C22000 | C2200 | CZ101 | CuZn10 |
| H96 | CuZn41 | C21000 | C2100 | CZ125 | CuZn5 |
Available delivery status: Normalizing (N), Annealing (A), Stress Relieving, etc.

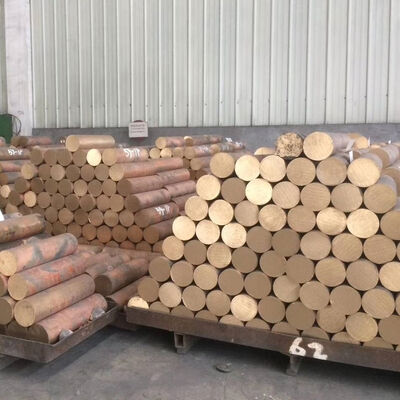

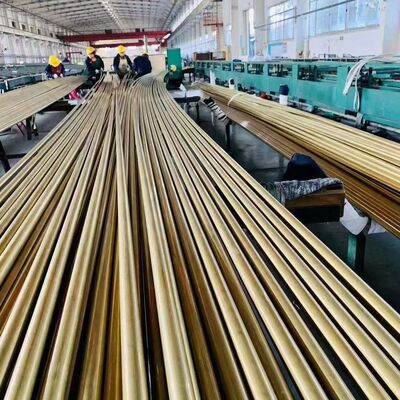

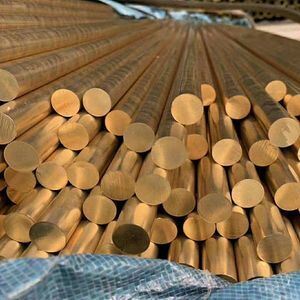

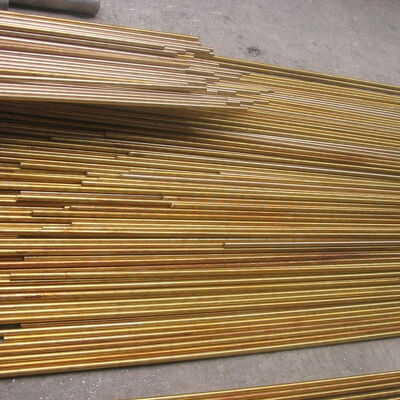

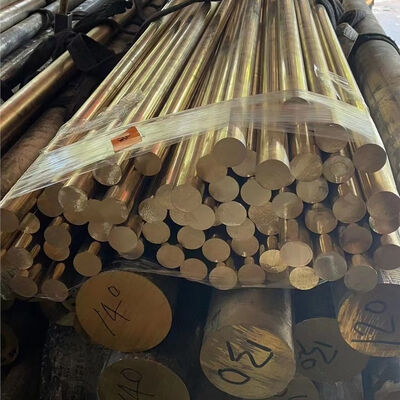

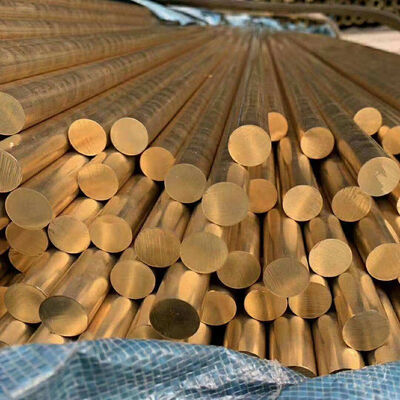

Product Images
