C10200 Oxygen Free Copper Bar and Rod ASTM Standard with Diameter 5-300mm for Industrial Applications
Product Details
| Model NO. | C10200 | Shape | Round |
|---|---|---|---|
| Alloy | Non-alloy | Color | Red |
| Diameter | 4 - 250mm | Length | 1-6m |
| Other Shape | Square, Flat, Hexagonal | Material | Copper |
| Grade | C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, | Temper | O-H112; T3-T8; T351-T851 |
| Size | Thickness 0.3mm~100mm; Width 50mm~2500mm; Length 1000mm~12000mm | Surface | Mill Finish, Polished, Anodizing, Brushing, Sand Blasting, Powder Coating |
| Chemical Composition | Cu:99.95; O: 0.0100 | Mechanical Properties | Tensile Strength: (σb,N/mm²) P 275 |
| Cu(min) | 99 | ||
| Highlight | C10200 Copper Bar,Diameter 5-300mm Copper Rod,ASTM Standard Oxygen Free Copper Bar |
||
Product Description
C10200 Copper Bar T1 / C103 Copper Rod
Diameter Range: 5mm - 300mm with Custom Cutting Options
Product Specifications
| Product Name | Copper Bar |
| Material | Copper |
| Standards | ASTM, AISI, JIS, DIN, GB, EN |
| Available Grades | C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200, T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1 |
| Shape | Flat Plate |
| Temper | O-H112; T3-T8; T351-T851 |
| Size Range | Thickness: 0.3mm - 100mm; Width: 50mm - 2500mm; Length: 1000mm - 12000mm |
| Surface Finish | Mill finish, polished, anodizing, brushing, sand blasting, powder coating |
Material Description
C10200 (TU2) Oxygen-Free Copper Bar
C10200 (TU2) copper bar is oxygen-free copper with extremely low oxygen and impurity content, offering high purity and excellent electrical conductivity. Features include superior thermal conductivity, good ductility, low permeability, minimal "hydrogen disease," excellent machining properties, welding capability, and outstanding corrosion and cold resistance.
Chemical Composition: Cu: 99.95%; O: 0.0100%
Tensile Strength: 275 N/mm² (σb)
Standard Length: 5.8m, 6m, or custom lengths
Diameter Range: 3mm - 800mm, or custom sizes
Standards: GB, ASTM, BS, DIN, JIS
Grade: Oxygen Free Copper (OFC)
Copper Content (min): 99%
Applications: Industrial, fireproof cable, electric vacuum industry
International Grade Specifications
| China (GB) | Germany (DIN) | Europe (EN) | International (ISO) | US (UNS) | Japan (JIS) |
|---|---|---|---|---|---|
| TU2 | OF-Cu | Cu-OFE | CW009A | C10200 | C1020 |
| T2 | Se-Cu | Cu-ETP | CW004A | C11000 | C1100 |
| TP2 | SF-Cu | Cu-DHP | CW024A | C12000 | C1220 |
Applications
- Utensil manufacturing
- Solar reflective film
- Building exteriors
- Interior decorating: ceilings, walls
- Furniture cabinets
- Elevator decoration
- Signs, nameplates, bag making
- Automotive interior and exterior decoration
- Household appliances: refrigerators, microwave ovens, audio equipment
- Consumer electronics: mobile phones, digital cameras, MP3 players, USB drives
Additional Information
Payment Terms: T/T, L/C, Western Union, PayPal
Price Terms: CFR, FOB, CIF, Ex-work, CNF
Packaging: Standard export seaworthy package or as required

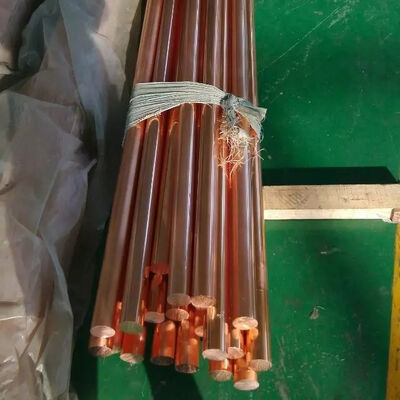

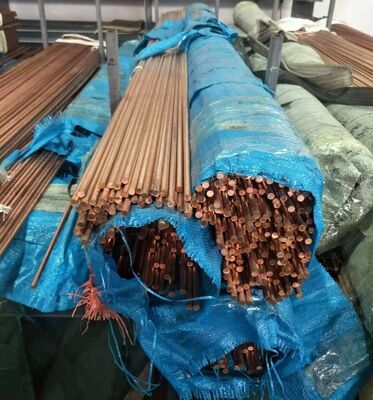

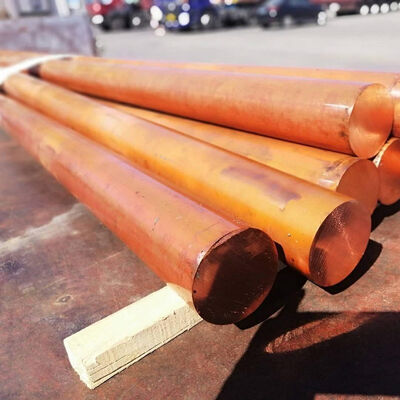

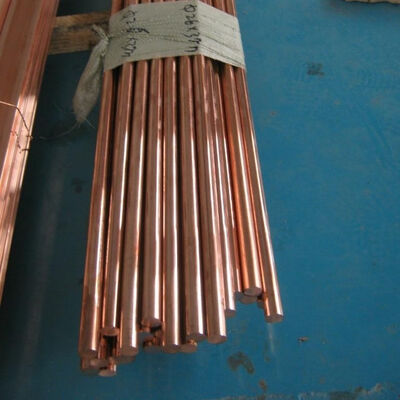

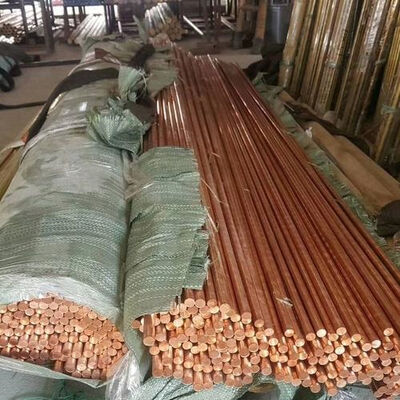

Product Images
Contact Us: For any questions or custom requirements, please feel free to contact our technical team.
