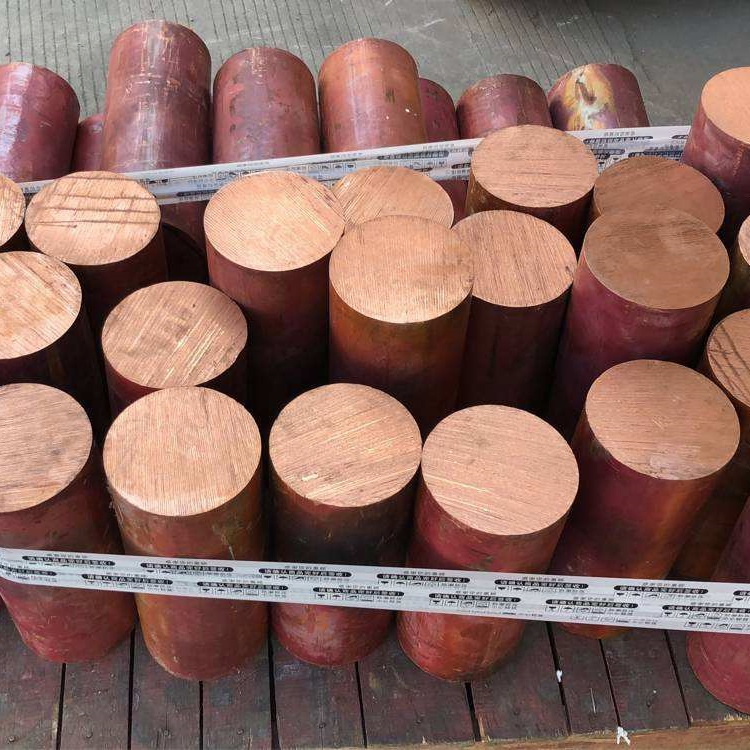

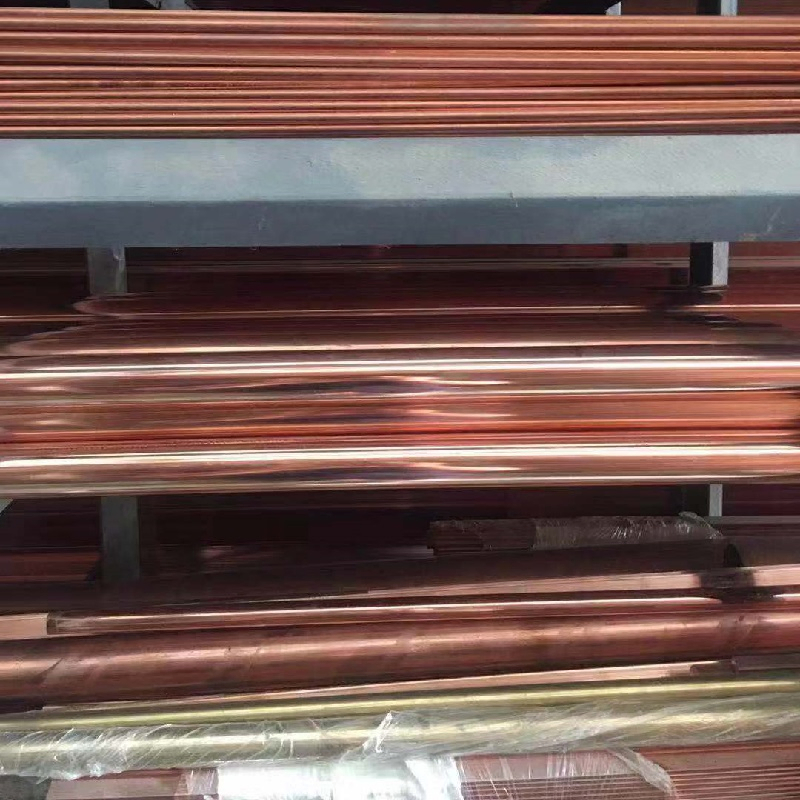

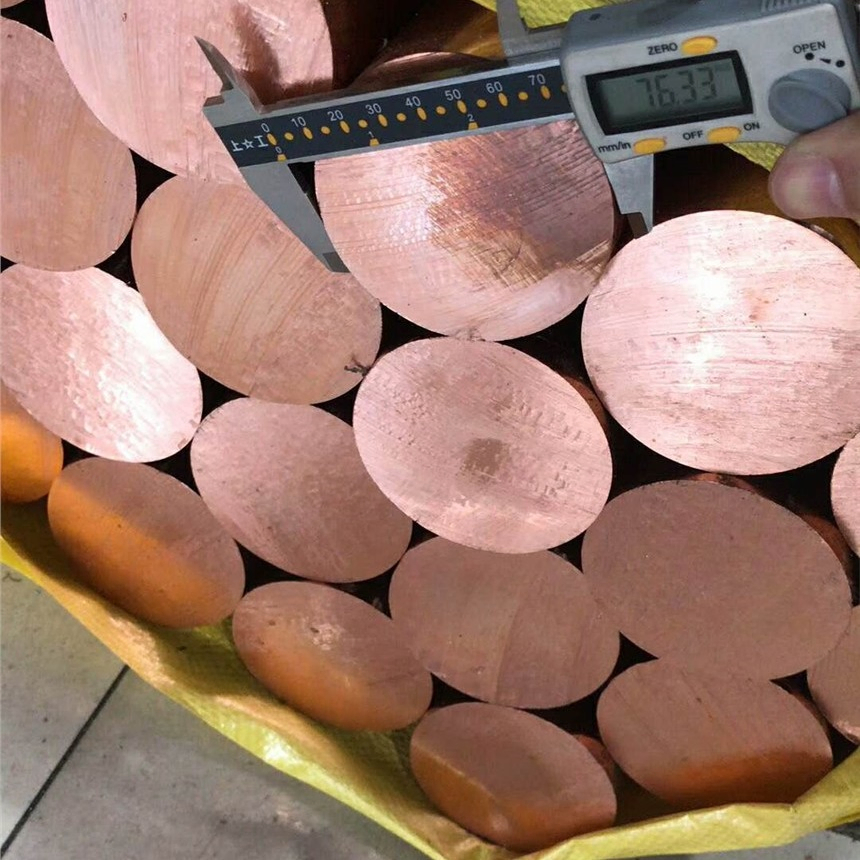

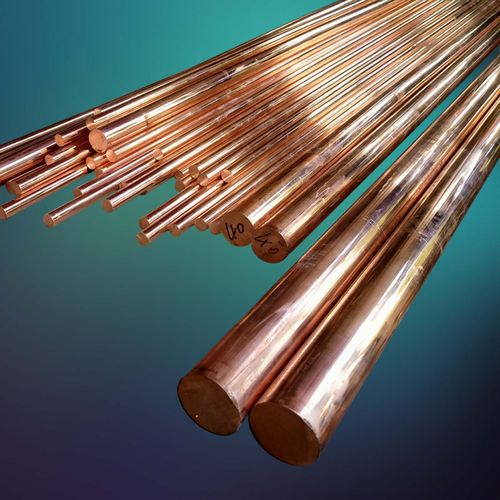

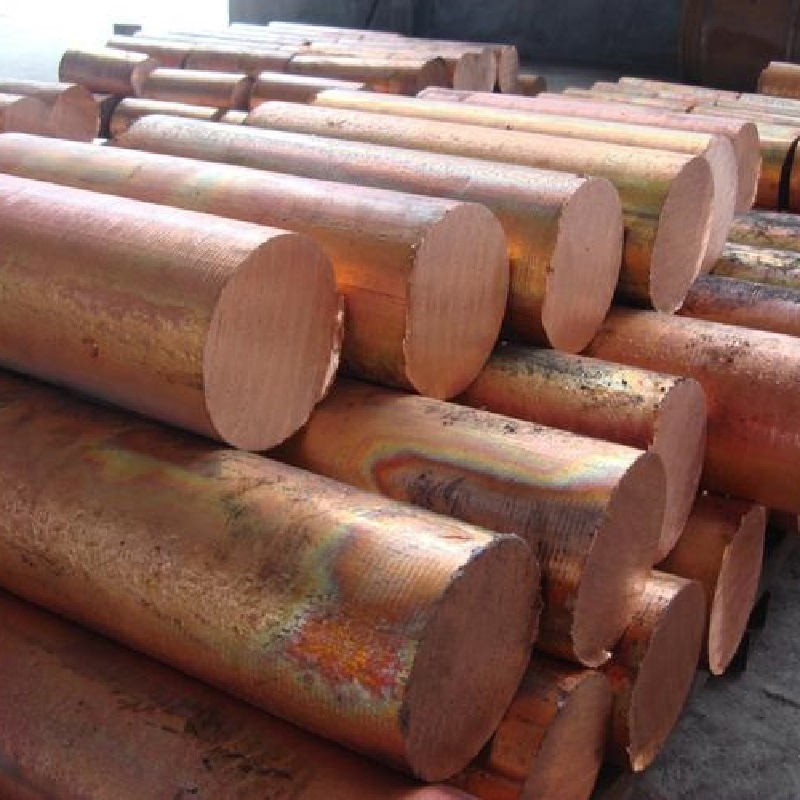

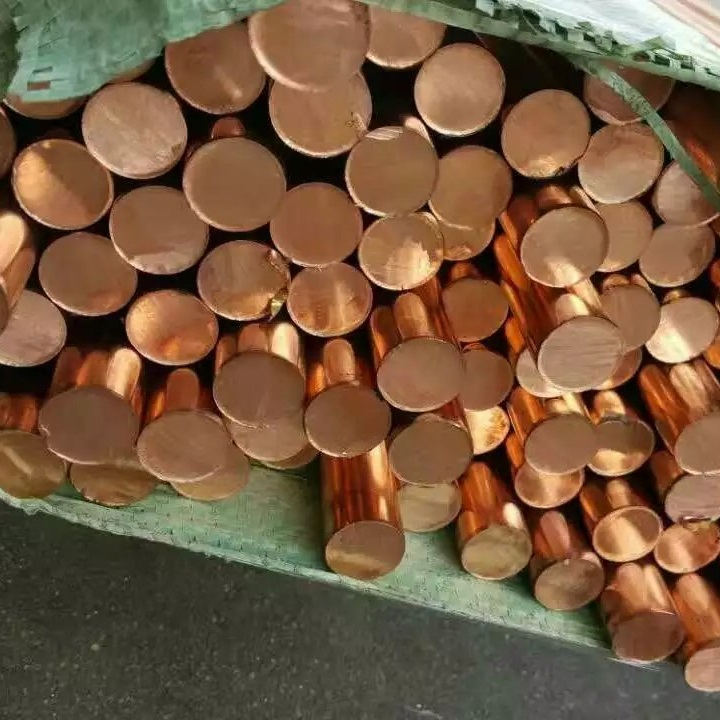

99.99% Pure Copper Round Bar Custom C110 ASTM Standard Copper Rod

Minimum Order Quantity	500 kg
Price	US $7-9 / kg

Product Details

Shape	Round	Alloy	Non-alloy
Color	Red	Diameter	4 - 300mm
Length	2000mm Or Custom	Other Shapes	Square, Flat, Hexagonal
Copper Purity	99.99%	Conductivity Rating	100% IACS
Oxygen Content	0.02% - 0.04%	Tensile Strength	32 - 55 Ksi
Yield Strength	10 - 50 Ksi	Elongation	4% - 55%
Hardness	40 - 60 Rockwell B	Thickness Range	1/8" - 2"
Width Range	1/2" - 8"
Highlight	99.99% Pure Copper Round Bar , Custom C110 Copper Rod , ASTM Standard Copper Bar

Leave a Message

Product Description

Cu-Ept Copper Round Bar 99.99% Pure Copper Rod Custom C110 Round Bar

Product Specifications

Product Name	Copper Rod
Shape	Round/Square/Rectangular/Flat, etc
Size	Regular size 600x1500mm or Customized
Grade	Pure Copper: C10100/C10200/C11000/C12000/C12200 Copper Alloy: C14500/C17200/C17300/C17510/C18150/C19200/C19210/C19400 Brass: C22000/C23000/C24000/26000/26800/27000 Lead Brass: C33000/CuZn36Pb3/C35000/C35300/C36010/C37000/37700/C38000/C38500/CuZn39Pb3/CuZn40Pb2 Tin Brass: C44300/C44500/C46400/HSn90-1 Aluminum Brass: C68700/HAl77-2/HAl66-6-3-2/HAl64-3-1 Tin Bronze: C51000/C51100/C51900/C52100/C54400/CuSn4/CuSn5/CuSn5Pb1/CuSn6/CuSn8 Aluminum Bronze: C60800/C61300/C61900/C62300/C63000 Copper Nickel Alloy: C70400/C71500/C70600/C70620/C73500/75200/76200/C77000
Temper	H, 1/2H, 3/4H, 1/4H, EH, SH, O60, etc.
Surface	Mill, Polished, bright or customized
MOQ	1 ton
Delivery Time	5-10 days after payment received
Payment Terms	30% TT deposit + 70% TT balance before delivery

Material Description

C11000 Electrolytic Tough Pitch (ETP) Copper Round Bar meets standards including ASTM B-187, ASTM B-124, ASTM B-133, SAE 461, SAE J461, SAE J463, AMS 4500, and DIN 2.0065.

This high-purity copper (99.99%) is known for its exceptional electrical and thermal conductivity, excellent corrosion resistance, and superior solderability. C11000 copper is widely used for welding fixtures, anodes, bus bars in electrical power installations, ground straps, commutators, and current-carrying hardware. Its excellent fabrication qualities allow for easy bending, soldering, drilling, peening, riveting, and forming to meet virtually any design specification.

Available Sizes

Rectangles / Flat Bar: 1/8" - 2" thick through 1/2" - 8" wide
Square Bar: 1/4" - 4" square
Round Bar: 3/16" - 15" diameter
Bus Tubes: Cut to size, up to 6" O.D.
Sheets (Cold Rolled): Up to 1/4" thick max
Plates (Hot Rolled): Cut to size, up to 6" thick

Chemical Composition

Element	Min/Max	Nominal
Cu	99.90 min	-
O	-	0.04

Applications

C11000 copper is used in various applications including:

Building Fronts, Gutters, Skylight Frames, Roofing, Flashing, Downspouts, Spouting
Pressure Vessels, Chemical Process Equipment, Chlorine Cells, Chimney Cap Screens
Heat Exchangers, Printing Rolls, Anodes, Rotating Bands
Kettles, Pans, Vats, Road Bed Expansion Plates

Mechanical Properties
