RAL Color Customized Pre-Painted Steel Sheet Hot Dipped JIS G3312 DX51D AZ PVDF
Product Details
| Thickness Range | 0.12 - 3.0mm (Galvanized), 0.25 - 3.0mm (Galvalume), 0.12 - 1.2mm (Prepainted) | Width Options | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm Or Custom |
|---|---|---|---|
| Length | Custom Length | Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm Or 610mm | Zinc Coating | Z30 - Z275 (Galvanized) |
| Aluminum-zinc Coating | AZ40 - AZ180 (Galvalume) | Painting Type | PE, HDP, SMP, PVDF |
| Sheet Specifications | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Surface Treatment | Regular Spangle / Non-spangle (Galvanized) |
| Alloy Composition | 55% Aluminum, 43% Zinc, 2% Silicon (Galvalume) | Coating Thickness | 20-25um/5-10um (Pattern Print) |
| Coating Layers | Above 2 Layer, Bottom 1 Layer (Pattern Print) | Heat Resistance | >300°C (Galvalume) |
| Edge Type | Slit Edge | ||
| Highlight | RAL Color Customized Pre-Painted Steel Sheet,Hot Dipped JIS G3312 Color Coated Steel Sheet,DX51D AZ PVDF PPGI |
||
Product Description
Customized RAL Color Pre-Painted Steel Sheet
Hot Dipped JIS G3312, DX51D AZ PVDF Coated Steel Products
Product Specifications
| Product Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness | Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface | Galvanized: Regular spangle / non-spangle Zinc (Z30 - Z275) Galvalume: AZ40 - AZ180 Prepainted: PE, HDP, SMP, PVDF coatings |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Product Categories

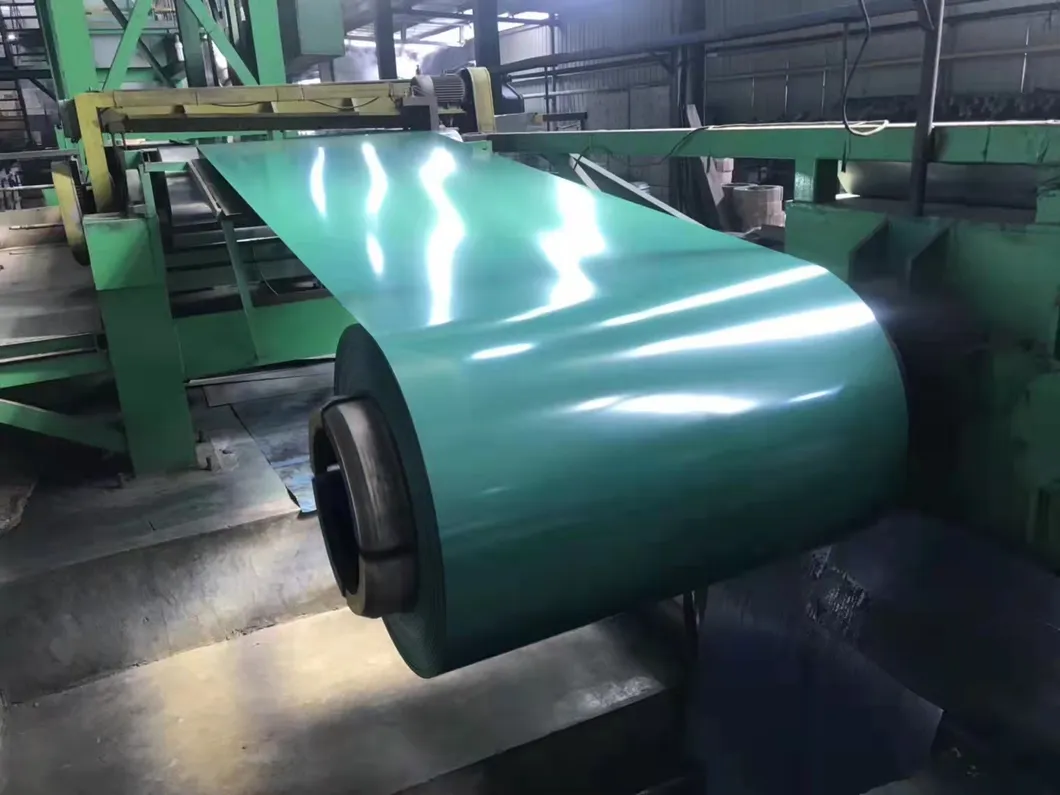

Prepainted Galvanized Steel Coil (PPGI)
Also known as color plate, PPGI is manufactured using cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied using continuous roller coating method, followed by baking and cooling processes.
These coated steel plates offer lightweight construction, attractive appearance, and excellent anti-corrosion performance. They can be directly processed and serve as innovative raw materials for construction, shipbuilding, vehicle manufacturing, home appliances, electrical industries, and more. PPGI effectively replaces wood, enables efficient construction, and promotes energy conservation and pollution prevention.
Galvanized Steel Coil
Galvanized sheet refers to zinc-coated steel plate surface. Galvanizing represents an economical and effective rust prevention method, utilizing approximately half of the world's zinc production for this purpose.
Surface Requirements:
Surface states vary based on coating process treatments, including regular spangle, small spangle, and big spangles. Galvanized sheets must maintain excellent appearance without defects harmful to product usage, such as no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust.
Surface states vary based on coating process treatments, including regular spangle, small spangle, and big spangles. Galvanized sheets must maintain excellent appearance without defects harmful to product usage, such as no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust.
Galvalume Steel Coil
Galvalume steel sheet consists of an aluminized zinc alloy structure comprising 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C. The complete structure forms a dense tetrad junction crystal composed of aluminized iron, silicon, and zinc.
This material offers superior corrosion resistance (three times that of pure galvanized sheet) with decorative zinc flower patterns suitable for building exterior panels. The corrosion protection primarily derives from aluminum's protective functionality.
Galvalume steel sheet demonstrates excellent heat resistance, withstanding temperatures exceeding 300°C, similar to aluminum-plated steel plate's high-temperature oxidation resistance. Common applications include chimney tubes, ovens, illuminators, and solar lampshades.
Featured Product: Pattern Print Prepainted Steel Sheet
| Product | Pattern Print Prepainted Steel Sheet |
|---|---|
| Introduction | Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Bright colors, wide variety including marble grain, camouflage, wood grain printing color boards |
| Size | Thickness: 0.17 - 1.5mm (Width less than 1.5mm) |
| Color & Pattern | Customized as per client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um / 5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510mm / 610mm |
| Application | Household appliances, furniture, doors and windows, indoor and outdoor decoration |
Trade Information
| Minimum Order Quantity | 5 Tons |
|---|---|
| Payment Terms | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Profile
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi City. We offer comprehensive product lines including color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.
We maintain strong cooperative relationships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin Zongcheng Steel. Our products find extensive applications in steel structure buildings, metal building materials, steel silos, ventilation pipes, mechanical and electrical housing, home appliance plates, elevators, purification plates, automotive stamping parts, and related fields.
Our team averages over 8 years of industry experience, enabling us to provide customized supply solutions that enhance supply chain efficiency. Since establishment, we have collaborated with factories to supply materials and technical services for numerous medium and large domestic and international engineering projects.
Committed to our core values of sustainability and reliability, we strive to deliver perfect demand solutions while working collaboratively with domestic and foreign customers to establish ourselves as China's premier high-end coating and plating steel products service provider.
