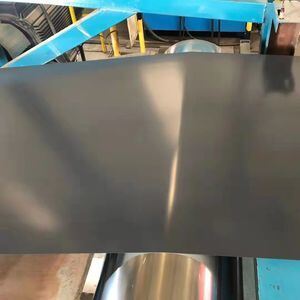

Corrosion Resistant Prepainted Color Steel with Custom Sizes and High Durability for Building Applications
Product Details
| Thickness | 0.12 - 3.0mm (Galvanized), 0.25 - 3.0mm (Galvalume), 0.12 - 1.2mm (Prepainted) | Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm |
|---|---|---|---|
| Length | Custom Length | Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm Or 610mm | Zinc Coating | Z30 - Z275 (Galvanized) |
| Aluminum-Zinc Coating | AZ40 - AZ180 (Galvalume) | Painting Type | PE, HDP, SMP, PVDF (Prepainted) |
| Sheet Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Pattern Thickness | 0.17 - 1.5mm |
| Coating Thickness | 20-25um/5-10um | Coating Layers | Above 2 Layer, Bottom 1 Layer |
| Edge Type | Slit Edge | Surface Finish | Regular Spangle, Non-spangle, Zinc Flowers |
| Heat Resistance | >300°C (Galvalume) | ||
| Highlight | Corrosion Resistant Prepainted Color Steel,Custom Sizes Galvanized Steel Sheet,High Durability Galvalume Steel Sheet |
||
Product Description
JIS, CGCC Soft Commercial and Lock Forming for Building Prepainted Color Steel
High-quality prepainted color steel products designed for commercial building applications with JIS and CGCC standards compliance.
Product Specifications
| Products Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness | Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface | Galvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume Steel Sheet: AZ40 - AZ180 Prepainted Galvanized Steel Sheet: Painting Type: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS ETC |
Prepainted Galvanized Steel Coil
Prepanited galvanized steel coil (PPGI, color plate) uses cold rolled steel plate and galvanized steel plate as base plates. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, it undergoes continuous coating via roller coating method, followed by baking and cooling. These coated steel plates offer lightweight construction, attractive appearance, and excellent anti-corrosion performance, suitable for direct processing in construction, shipbuilding, vehicle manufacturing, home appliances, and electrical industries.
Galvanized Steel Coil
Galvanized sheet features zinc-coated steel surface protection. Galvanizing represents an economical and effective rust prevention method, utilizing approximately half of the world's zinc production. Surface options include regular spangle, small spangle, and big spangles. All products maintain excellent appearance standards free from defects such as no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust.
Galvalume Steel Coil
Galvalume steel sheet consists of an aluminized zinc alloy structure comprising 55% aluminum, 43% zinc, and 2% silicon solidified at 600ºC. This creates a dense tetrad junction crystal structure with aluminized iron, silicon, and zinc components. Offering corrosion resistance three times greater than pure galvanized sheet, it features decorative zinc flower patterns ideal for building exterior panels. The material demonstrates excellent heat resistance, withstands temperatures exceeding 300 degrees Celsius, and finds applications in chimney tubes, ovens, illuminators, and solar lampshades.
Pattern Print Prepainted Steel Sheet
| Product | Pattern Print Prepainted Steel Sheet |
|---|---|
| Introduction | Color plates printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Wide application range including marble grain, camouflage, wood grain printing with bright colors and variety |
| Size | Thickness: 0.17 - 1.5mm, Width less than 1.5mm |
| Color and Pattern | Customizable as per client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um/5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510MM/610MM |
| Application | Household appliances, furniture, doors and windows, indoor and outdoor decoration |
Trade Information
| MOQ | 5 Tons |
|---|---|
| Payment Term | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Information
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi city. We offer comprehensive product lines including color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.
We maintain strong cooperative relationships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin ZongCheng Steel. Our products serve diverse applications in steel structure building, metal building materials, steel silo, ventilation pipes, mechanical and electrical housing, home appliance plate, elevator, purification plate, and automotive stamping parts.
With employees averaging over 8 years of industry experience, we provide customized supply solutions and technical services for medium and large engineering projects worldwide, enhancing supply chain efficiency as your trusted partner.
Committed to our value concept of sustainable development, we strive to deliver perfect demand solutions while working collaboratively with domestic and international customers as China's premier high-end coating and plating steel products service provider.
