Hot Rolled 17-4PH Stainless Steel Round Bar with Bright Surface and OD 6-300mm
Product Details
| Model NO. | 17-4PH/630 | Shape | Round |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification | OD 6-300mm | Diameter | 8 - 450mm |
| Length | 6m /pcs | Main Grade | 201 301 303Cu 304 304L 309S 310S 316L 316Ti 317L 318 321 347 410 420 430 431 440a/b/c 904L 2205 2507 |
| Tensile Strength | 1105-1310 MPa | Yield Strength | 1000-1170 MPa |
| Elongation | 10-16% | Hardness | 28-44 HRC |
| Thermal Conductivity | 18.4 W/m.K | Specific Heat | 460 J/kg.K |
| Elec Resistivity | 800 NΩ.m | ||
| Highlight | Hot Rolled Stainless Steel Round Bar,Bright Surface 17-4PH Round Bar,OD 6-300mm 630 Stainless Steel Bar |
||
Product Description
630 / 17-4PH Stainless Steel Round Bar
High-strength mechanical stainless steel round bar stock with excellent corrosion resistance and hardness properties.
Product Specifications
| Product | 17-4PH Stainless Steel Round Bar |
|---|---|
| Standard | ASTM GB DIN EN |
| Diameter | 8 - 450mm |
| Length | 6m /pcs or cutting as requested |
| Finishing | Black Bar / Bright Bar |
| Main Grades | 201, 301, 303Cu, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 318, 321, 347, 410, 420, 430, 431, 440a/b/c, 904L, 2205, 2507, Hastelloy C276, C4, C22, Inconel 600, 625, Incoloy 800, 825, 825H, etc. |
| Service | Cutting, surface polishing, heat treatment |
| Brand | Walsin, BAOSTEEL, TISCO, QINGSHAN |
Material Description
17-4PH Stainless Steel (also known as Type 630) is a chromium-copper precipitation hardening stainless steel used for applications requiring high strength and moderate corrosion resistance. High strength is maintained to approximately 600°F (316°C).
General Properties
Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with Cu and Nb/Cb additions. The grade combines high strength, hardness (up to 572°F / 300°C), and corrosion resistance. Mechanical properties can be optimized with heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi).
Applications & Standards
| Applications | Standards |
|---|---|
|
|
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | Cu | Nb+Ta |
|---|---|---|---|---|---|---|---|---|---|
| 630 | 0.07 max | 1.0 max | 1.0 max | 0.04 max | 0.030 max | 15-17.5 | 3-5 | 3-5 | 0.15-0.45 |
Mechanical Properties
| Condition | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell C (HRC) | Hardness Brinell (HB) |
|---|---|---|---|---|---|
| Solution Treated | 1105 typ | 1000 typ | 15 typ | 38 max | 363 max |
| Condition 900 | 1310 min | 1170 min | 10 min | 40 min | 388 min |
| Condition 1150 | 930 min | 724 min | 16 min | 28 min | 277 min |
Physical Properties
| Property | Value |
|---|---|
| Density (kg/m³) | 7750 |
| Thermal Conductivity at 100°C (W/m·K) | 18.4 |
| Thermal Conductivity at 500°C (W/m·K) | 22.7 |
| Specific Heat 0-100°C (J/kg·K) | 460 |
| Electrical Resistivity (nΩ·m) | 800 |
| Mean Coefficient of Thermal Expansion 0-100°C (µm/m/°C) | 10.8 |
Alternative Grade Comparison
| Alternative Grade | Reasons for Choosing 17-4PH (630) |
|---|---|
| 431 | 431 has higher toughness than 17-4PH, with better availability in some sizes |
| 416 | Free-machining martensitic stainless steel - better for repetition machining, lower cost |
| 316 | Higher corrosion resistance but with much lower strength than 17-4PH |
| 2205 | Much better corrosion resistance with lower strength (but not as low as 316) |
Heat Treatment
Solution treatment (Condition A): Heated at 1040°C for 0.5 h, then air-cooled to 30°C. Small sections can be oil quenched.
Hardening: Age-hardened at low temperatures to achieve required mechanical properties. Superficial discoloration occurs followed by shrinkage.
| Condition | Hardening Temp (°C) | Time (h) | Typical Hardness Rockwell C | Tensile Strength (MPa) |
|---|---|---|---|---|
| A | Ann | - | 36 | 1100 |
| H900 | 482 | 1 | 44 | - |
| H925 | 496 | 4 | 42 | 1170-1320 |
| H1025 | 552 | 4 | 38 | 1070-1220 |
| H1075 | 580 | 4 | 36 | 1000-1150 |
| H1100 | 593 | 4 | 35 | 970-1120 |
| H1150 | 621 | 4 | 33 | 930-1080 |
Processing Characteristics
Welding: Can be welded using all conventional methods without pre-heating. Care should be taken in designing and welding high strength steels to prevent weldment stresses.
Machining: Can be machined in solution-treated condition with machining rates similar to grade 304 steels.

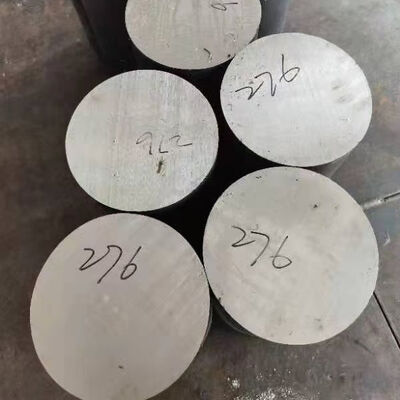

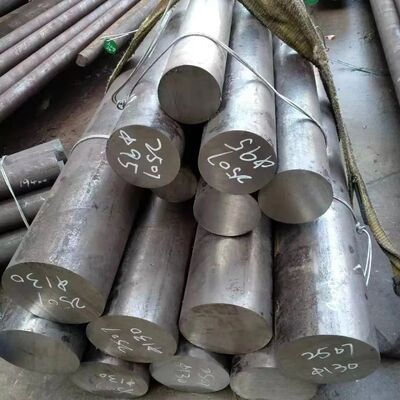

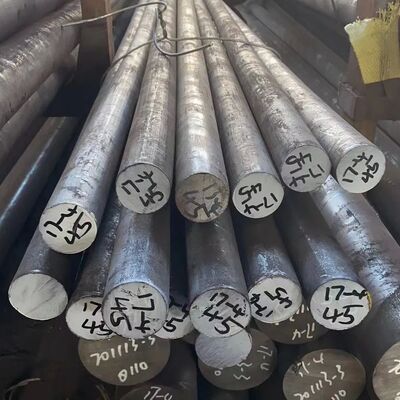

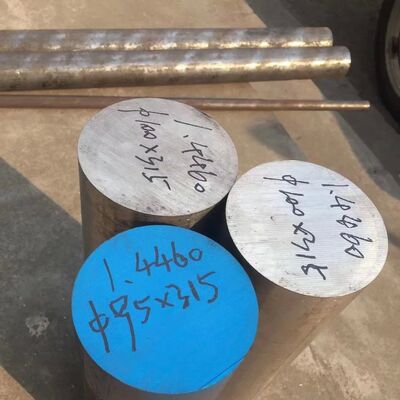

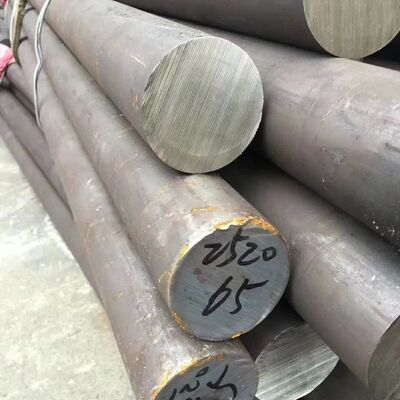

Product Images
Applications
- Engine components
- High strength and boat propeller shafts
- Plastic moulding dies
- Valves and gears
