Hot Rolled 17-4PH Stainless Steel Bar with Bright Surface and OD 6-300mm
Product Details
| Model NO. | 17-4PH/630 | Shape | Round |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Bright |
| Specification | OD 6-300mm | Diameter | 8 - 450mm |
| Length | 6m /pcs | Main Grade | 201 301 303Cu 304 304L 309S 310S 316L 316Ti 317L 318 321 347 410 420 430 431 440a/b/c 904L 2205 2507 |
| Tensile Strength | 1105-1310 MPa | Yield Strength | 1000-1170 MPa |
| Elongation | 10-16% | Hardness | 28-44 HRC |
| Density | 7750 Kg/m³ | Thermal Conductivity | 18.4-22.7 W/m.K |
| Electrical Resistivity | 800 NΩ.m | ||
| Highlight | Hot Rolled Stainless Steel Bar,Bright Surface 17-4PH Stainless Steel,OD 6-300mm 630 Stainless Steel |
||
Product Description
Hot Rolled 17-4PH Stainless Steel Bar / Forged Stainless Steel Bar 630 Stainless Steel
17-4 Precipitation Hardening (Type 630) is a chromium-copper precipitation hardening stainless steel used for applications requiring high strength and moderate corrosion resistance. High strength is maintained to approximately 600°F (316°C).
Product Specifications
| Products | 17-4PH Stainless Steel Round Bar |
|---|---|
| Standard | ASTM GB DIN EN |
| Diameter | 8 - 450mm |
| Length | 6m /pcs or cutting as request |
| Finishing | black bar / Bright Bar |
| Main Grade | 201 301 303Cu 304 304L 309S 310S 316L 316Ti 317L 318 321 347 410 420 430 431 440a/b/c 904L 2205 2507 Hastelloy C276 C4 C22 Inconel 600 625 Incoloy 800 825 825H.etc |
| Service | Cutting, surface polishing, heat treatment |
| Brand | Walsin BAOSTEEL TISCO QINGSHAN |
Material Description
Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with Cu and Nb/Cb additions. The grade combines high strength, hardness (up to 572°F / 300°C), and corrosion resistance. Mechanical properties can be optimized with heat treatment.
Key Applications
- Offshore (foils, helicopter deck platforms, etc.)
- Food industry
- Pulp and paper industry
- Aerospace (turbine blades, etc.)
- Mechanical components
- Nuclear waste casks
Standards Compliance
- ASTM A693 grade 630 (AMS 5604B) UNS S17400
- EURONORM 1.4542 X5CrNiCuNb 16-4
- AFNOR Z5 CNU 17-4PH
- DIN 1.4542
Chemical Composition
| Element | Min (%) | Max (%) |
|---|---|---|
| C | - | 0.07 |
| Mn | - | 1 |
| Si | - | 1 |
| P | - | 0.04 |
| S | - | 0.030 |
| Cr | 15 | 17.5 |
| Ni | 3 | 5 |
| Cu | 3 | 5 |
| Nb+Ta | 0.15 | 0.45 |
Mechanical Properties
| Condition | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell C (HR C) |
|---|---|---|---|---|
| Solution Treated | 1105 typ | 1000 typ | 15 typ | 38 max |
| Condition 900 | 1310 min | 1170 min | 10 min | 40 min |
| Condition 1150 | 930 min | 724 min | 16 min | 28 min |
Applications
- Engine components
- High strength and boat propeller shafts
- Plastic moulding dies
- Valves and gears

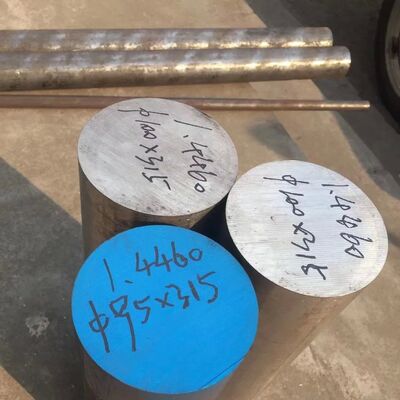

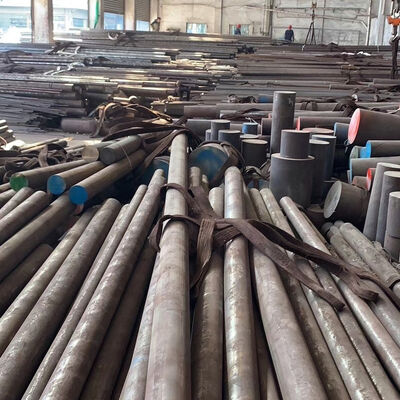

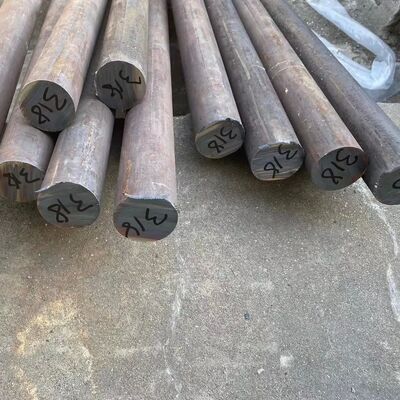

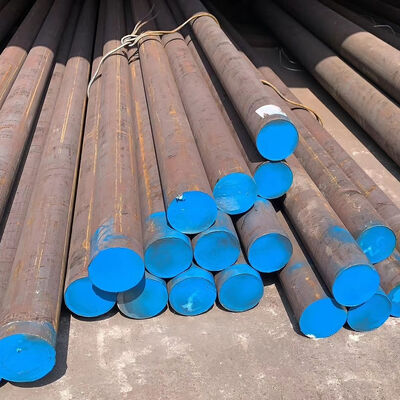

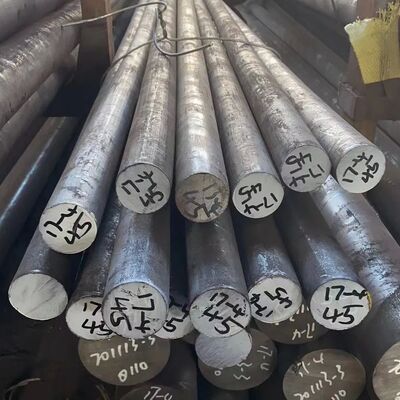

Product Images
